| Bike |
Image |
Description |

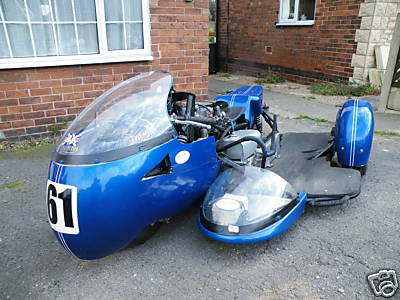

| 1962 Triumph T140 Pre-unit Racing Outfit |
 |
10" wheeled 1962 Fiddeman rolling chassis,
AP Racing calipers, 5-speed geatbox, Boyer ignition.
|

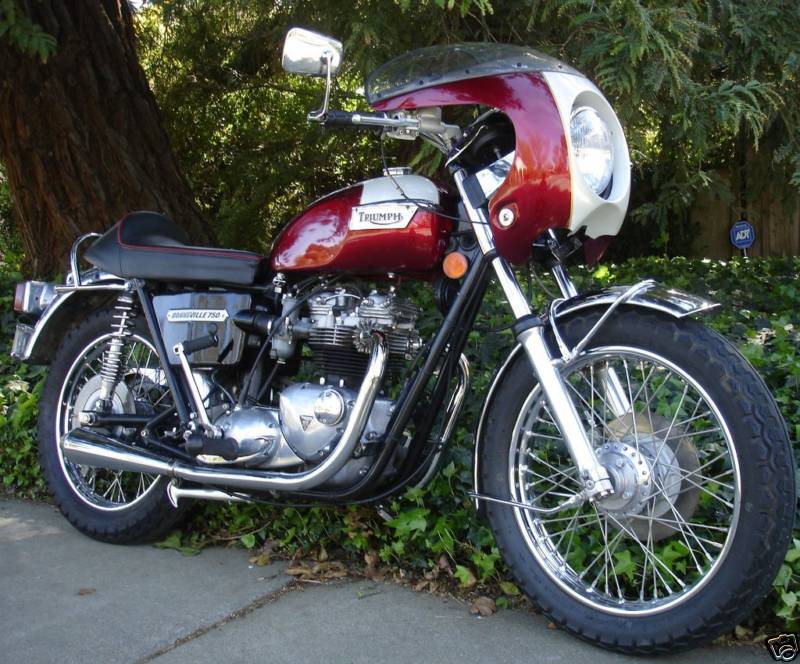

| 1973 Triumph T140V Bonneville 750 |
 |
Bore @ stroke - 76.0 x 82.0 mm (3.0 x 3.2
inches)
Production - 1972-1978
Engine - T140V, Twin cyl. vertical mount,
747cc, cast barrel and aluminium cyl. head.
Weight - 408 lbs
Comp. Ration - 8.6:1
Speed - 109.4 mph
Power - 53.00 HP (38.7 kW) @ 6500 RPM
Gearbox - 5 speed, 1 down and 4 up. Chain
drive
Brakes - front hydraulic disc and rear drum |
| 1973 Triumph Bonneville 750 T140V |
 |
The year 1979 brought the launch of the TI40E
and the TI40D, a custom special. Around 20,000
machines based on the new design were built before
Triumph finally went to the wall. These version,
a trail variant and finally the eight-valve TSS
and custom TSX. |

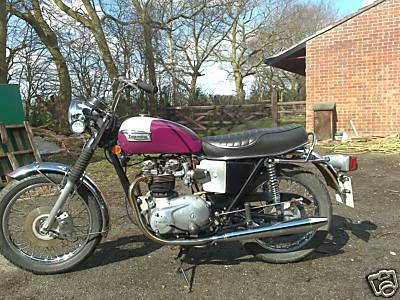

| 1975 Triumph Bonneville T140 |
 |
US Spec. |

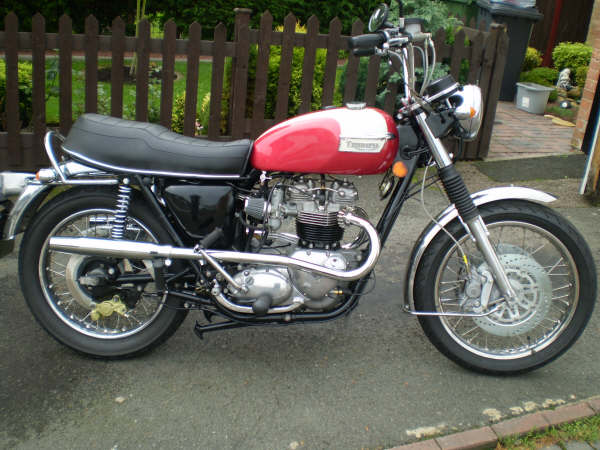

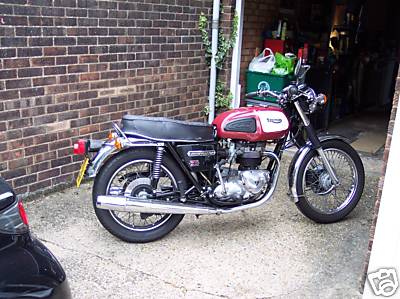

| 1976 Triumph Bonneville T140V |
 |
|
| 1976 Triumph Bonneville T140V, 736cc |
 |
|
| 1976 Triumph Bonneville T140 |
 |
|
| 1976 Triumph Bonneville T140V |
 |
|
| 1976 Triumph Bonneville T140V |
 |
|

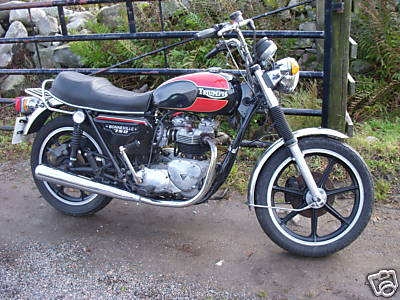

| 1977 Triumph Bonneville T140 |
 |
|
| 1977 Triumph Bonneville T140 |
 |
|

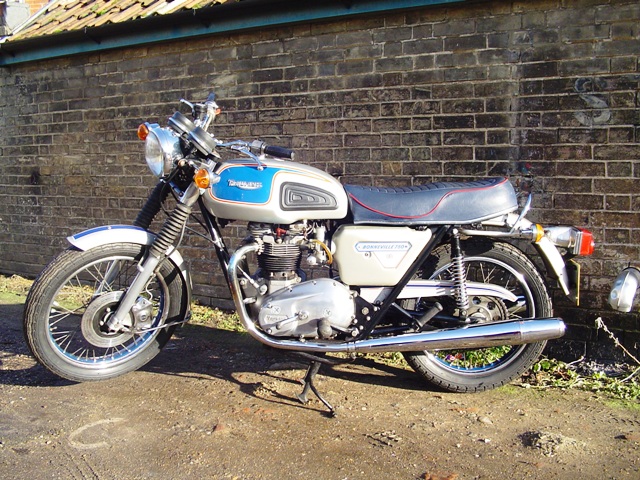

| 1977 Triumph Silver Jubilee |
 |
Image supplied by www.andybuysbikes.com
Triumph
Bonneville Silver Jubillee Gallery |

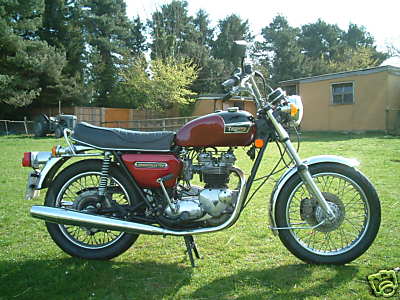

| 1978 Triumph Bonneville T140E |
| US import. |
| 1978 Triumph Bonneville T140 |
| By 1978, however, the Bonneville was something
of an anachronism in the world of motor cycling.
It had an old-fashioned twin-cylinder, pushrod
engine in a world dominated by multi-cylinder
machines from Japan. Astonishingly, the Bonneville
was still the best selling 750 in Britain during
1978 in spite of the fact that this was one of
the most competitiveclasses on the market. Much
of this success was due to the absolute simplicity
of the Bonneville. Weighing about 395lb it was
about a hundredweight lighter than most of its
Japanese rivals and with a crankcase measuring
about 14 inches across it was a good eight inches
narrower than the bulkier Japanese fours.
This light weight and slim build also meant
that the bike's manoeuvrability and handling
were far superior to most of its rivals, a fact
that went down well with British riders confined
to roads narrower, shorter and more crowded
than those of their colonial cousins. |

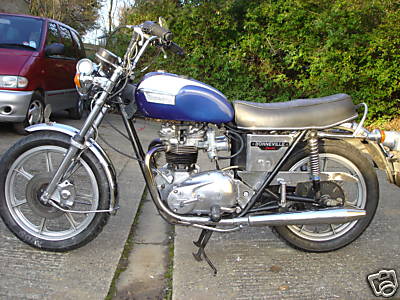

| 1978 Triumph Bonneville 750 Special |
| This is a T140 in US spec first registered in
1978. |

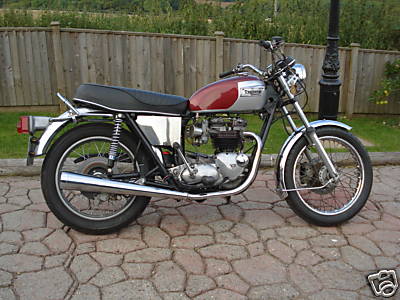

| 1978 Triumph Bonneville T140V |
| |

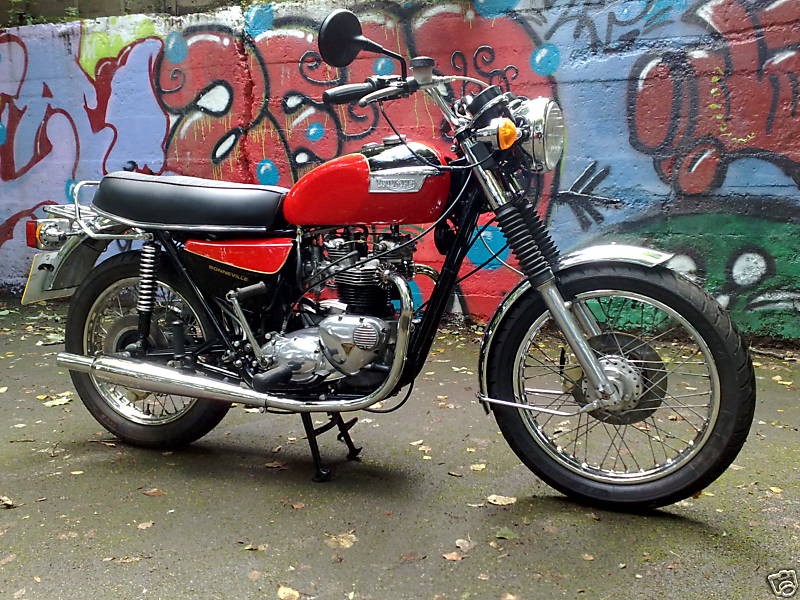

| 1978 Triumph T140 Bonneville |
| Engine - 744cc, twin-cylinder ohv four-stroke
Bore and Stroke - 76 x 82 mm
Launched - 1973-1988
Gearbox - five-speed
Carburettor - Two 30mm Amal
Weight - 395lb
Power - 49bhp @ 6500rpm
Compression Ratio - 7.9:1
Top Speed - 111 mph |

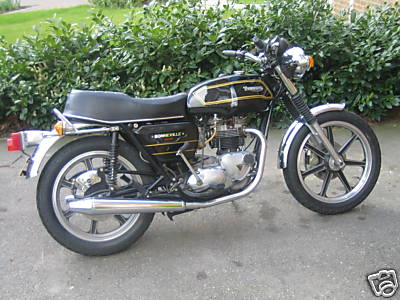

| 1979 Triumph Bonneville 750 T140D |
 |
|

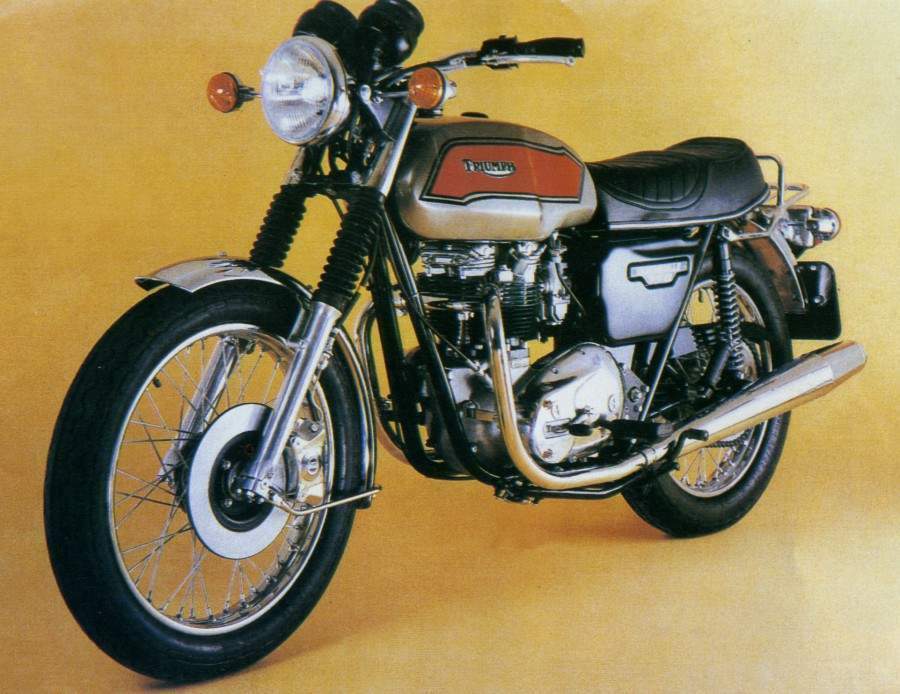

| 1979 Triumph Bonneville 750 T140E |
 |
|

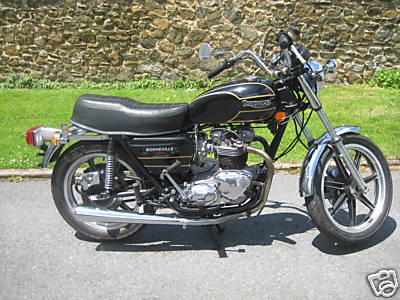

| 1979 Triumph Bonneville T140 Special |
 |
|

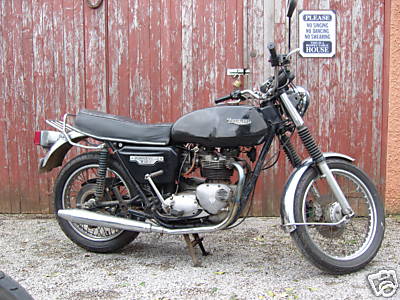

| 1979 Triumph Bonneville T140E |
 |
|

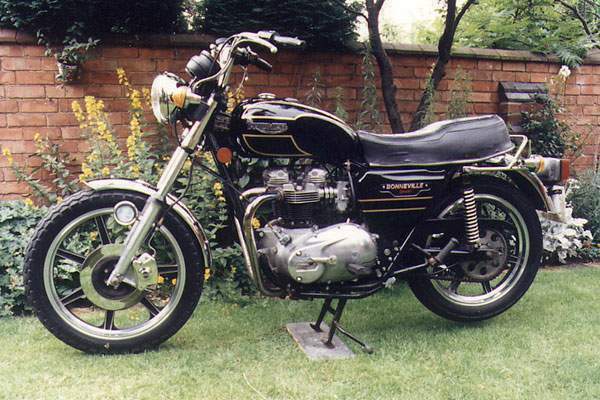

| 1979 Triumph Bonneville T140D Special, 744cc |
 |
The year 1979 brought the launch of the TI40E
and the TI40D, a custom special. Around 20,000
machines based on the new design were built before
Triumph finally went to the wall. |

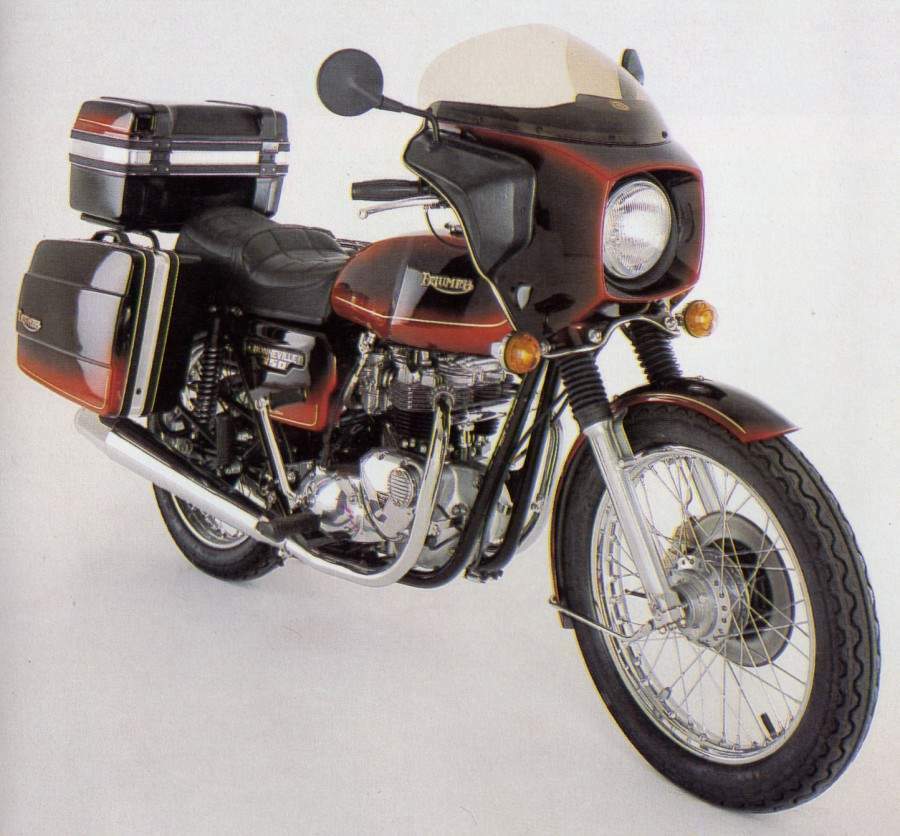

| 1980 Triumph Bonneville 750 T140E Special Edition |
 |
|

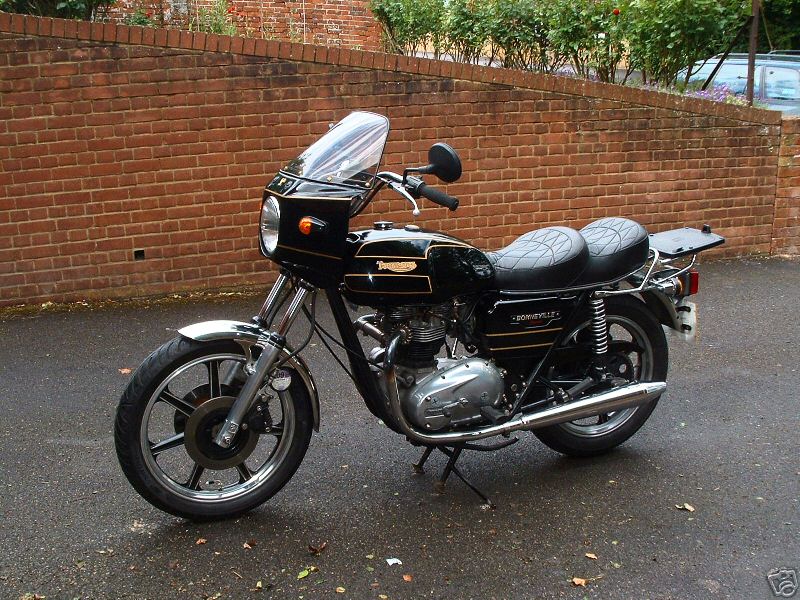

| 1980 Triumph Bonneville T140D |
 |
1980 Triumph bonneville 750 T140D special, Black
UK Spec. |

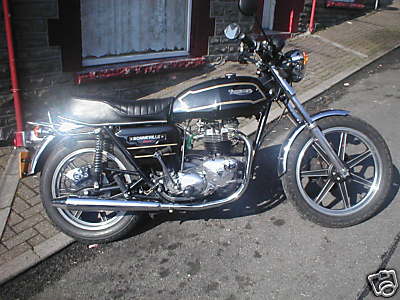

| 1980 Triumph Bonneville T140 650cc |
 |
|
| 1980 Triumph Bonneville T140 |
 |
|

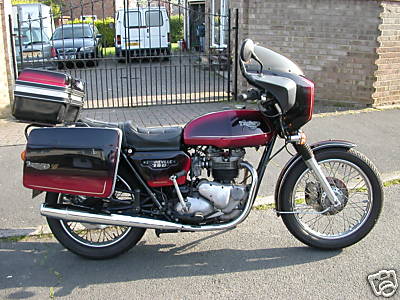

| 1980 Triumph Bonneville T140 Executive |
 |
Limited Edition. |

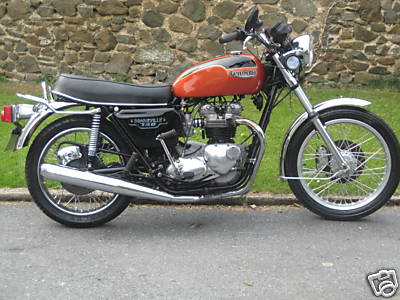

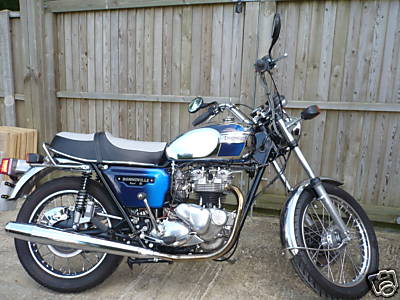

| 1981 Triumph Bonneville T140 |
 |
The motorcycle has been fully restored to the
original condition. It is a stunning example of
one of only 250 produced to comemerate the wedding
of Princess Diana. |

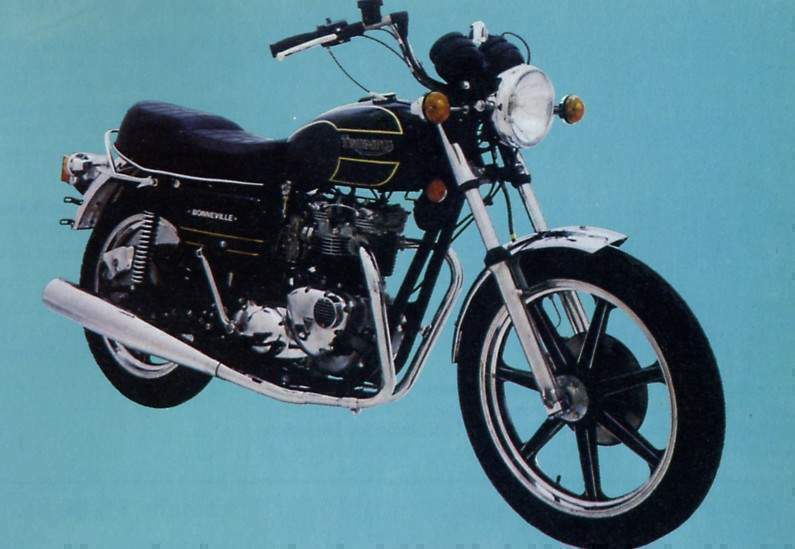

| 1981 Triumph Bonneville 750 T140D |
 |
|
| 1981 Triumph Bonneville T140 |
 |
|
| 1981 Triumph 140 ES Bonneville |
 |
UK model 750cc Electric Start. |

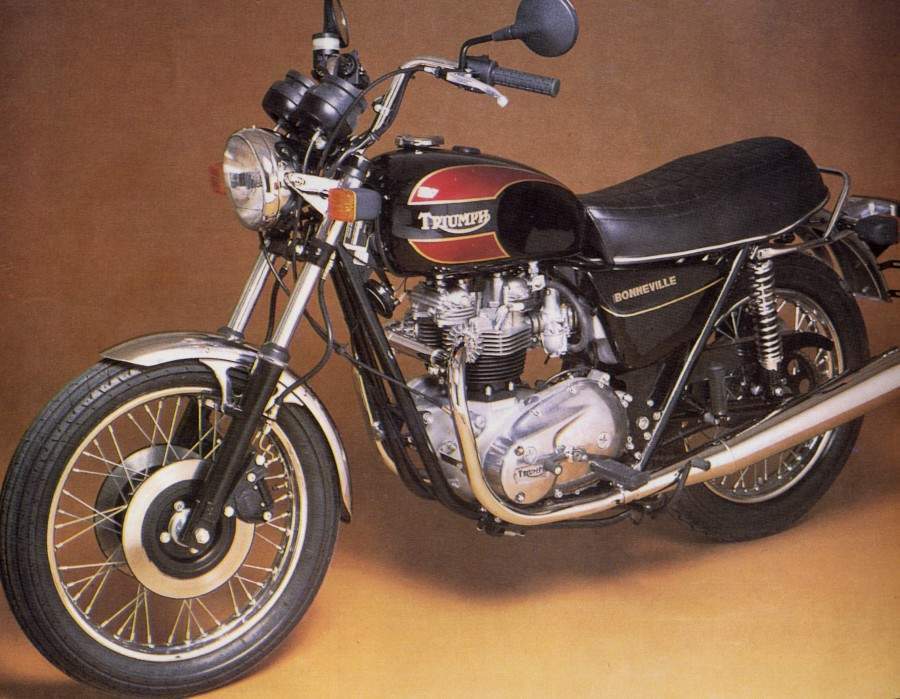

| 1982 Triumph Bonneville 750 T140E Final Edition |
 |
|
