2010 Victory Vision

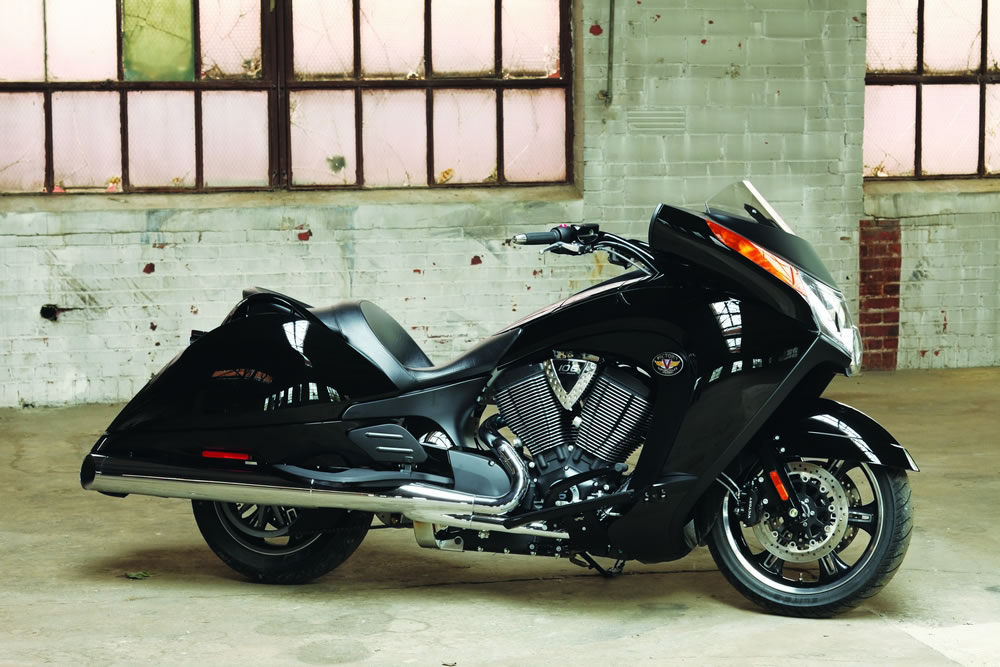

New 2010 Victory Vision 8-Ball

New Blacked-Out, High-Value Touring Model

• 8-Ball styling features blacked-out components, minimal chrome
• 8-Ball treatment makes Victory Vision styling & ride available at a value price point
• An ideal platform for customizing and for accessorizing as desired
• Distinctive new cast “Roulette” wheels

Engineered For Comfort & Convenience

• Rear suspension is 1” lower than standard Victory Vision; Seat is cut 1” lower than standard model seat, so seat height is 2” lower than standard model
• Seat places driver 1” closer to the handlebars
• Front of driver seat is narrow so driver’s legs stretch directly to the ground
• Long, integrated floorboards let the driver vary leg & foot positions to stay fresh & comfortable
• Instrumentation is positioned for easy, heads-up viewing
• “Silencer” affixed to airbox lessens intake sound level significantly
• Side stand has new extension that makes it easier to locate and operate; accessory Center Stand available

Convenient Cargo Space

• Dual side storage units are spacious, weatherproof, lockable
• Small storage compartment is directly in front of the rider

Smooth, Powerful Victory Freedom 106/6 Stage 1 V-Twin

• Black 106ci/1731cc engine with 6-speed transmission with Overdrive
• 92 horsepower, 109 ft-lb. torque
• Engine Control Module (ECM) and Closed Loop Fuel Injection for reduced emissions, optimal drivability & excellent power
• 6.0-gallon (22.7-liter) fuel capacity

Easy-Adjustable Rear Suspension

• Rear suspension features air shock combined with coil spring
• Rider uses easy-access air valve on side of bike to adjust air pressure in shock to suit the cargo/passenger load

Linked Brake System

• Rear brake is hydraulically linked to the front brakes
• On moderate to heavy braking with rear brake pedal, front braking is activated hydraulically to enhance overall braking
• Light braking with the rear brake pedal activates only the rear brake
• Front braking: Dual 300mm floating rotors with 3 pistons per caliper
• Rear braking: Single 300mm rotor with 2-piston caliper

Outsanding Lighting

• Lighting includes excellent headlight light pattern and distinctive V-shaped taillight
• Headlight remains off with key in “ON” position but engine not running; the light turns on when the engine is started

Wired To Utilize Accessories

• Victory Vision 8-Ball wiring harness accommodates popular accessories
• Electrical accessories available include: Heated grips, heated seats, cruise control, electrically adjustable windscreen, HID (High Intensity Discharge) Driving Beam
• Accessory Reverse can also be added

Pure Victory Gear Accessories

• Accessories available from Pure Victory Gear include:
• Stage 1 Performance Exhaust system and chrome fluted exhaust tips
• Passenger Backrest and Backrest Cargo Rack (each sold separately)
• Additional storage options include Rear Storage Compartment (trunk), Ultimate Solo Touring Bag & Trunk Rack
• Pure Victory Gear offers over 77 Victory Vision model-family accessories

2010 Arlen Ness Signature Series Victory Vision

Legendary bike builder Arlen Ness has the most experience – and a master’s touch – customizing the Victory Vision. Arlen has applied several custom touches from his personal bike to the 2010 Arlen Ness Signature Series model. This bike provides riders with comfort and performance features the Victory Vision is known for, and it also turns heads on the street with its unique Arlen Ness styling.

Limited-Edition Model Styled By Arlen Ness

• Special limited-edition build
• Each bike has a metal plate with the bike’s number, the Arlen Ness logo and a facsimile of Arlen Ness’s autograph
• Bike features special custom paint scheme designed by Arlen Ness
• Arlen Ness logo appears on the EFI cover on right side of bike
• Audio display screen reads: ARLEN NESS SIGNATURE SERIES
• Numerous blacked-out features: Center console, dashboard, passenger handgrips, front access panel, inner fairing panels, side covers, grille border, tip over protection

Special Ness Customizing

• Bike has Ness components such as custom billet wheels, handgrips and engine covers
• Suspension is lowered by 1” compared to standard Victory Vision Tour
• Custom stitched leather seat is 1” lower than stock Victory Vision seat
• Seat is designed to accept accessory Driver Backrest

Built On Award-Winning Victory Vision Platform

• Features long-riding comfort, excellent performance, innovative style
• Victory Vision styling on this model is enhanced by Arlen Ness
• Front of driver seat is narrow so driver’s legs stretch directly to the ground
• Long, integrated floorboards let driver vary leg & foot positions to stay fresh & comfortable
• Low Ness windscreen is electronically adjustable to manage airflow
• Manually adjustable side wind deflectors manage airflow to seating area
• Dual side storage units are spacious, weatherproof, lockable
• Small storage compartment with electronics connection in front of driver

New Or Improved For Model Year 2010

• Auxiliary power outlet is now cigarette lighter-style outlet for commonality
• Side stand has new extension that makes it easier to locate and operate; accessory Center Stand available
• “Silencer” affixed to airbox lessens intake sound level significantly
• Audio display provides higher-resolution graphics and additional information about playlists, artists, tracks & more

Iinegrated Electronics

• Cruise control is standard, as is AM/FM radio
• Bike is wired to accommodate iPod®, MP3, GPS
• Audio speakers mounted in fairing, facing driver
• All audio switches & controls are mounted by handgrips or in the center console in front of driver

Smooth, Powerful Victory Freedom 106/6 Stage 1 V-Twin

• 106ci/1731cc engine with 6-speed transmission with Overdrive
• 92 horsepower & 109 ft-lbs. torque
• Engine is calibrated specifically for peak performance in the Victory Visions
• Closed Loop Fuel Injection
• 6-gallon fuel capacity and electronic fuel gauge

Easy-Adjust Rear Suspension

• Rear suspension features air shock combined with coil spring
• Rider adjusts air pressure in shock to suit the cargo/passenger load

Linked Brake System

• Rear brake is hydraulically linked to the front brakes
• On moderate to heavy braking with the rear brake pedal, front brake will be activated hydraulically to enhance overall braking
• Front braking: Dual 300mm floating rotors with 3 pistons per caliper
• Rear braking: Single 300mm rotor with 2-piston caliper

Additional eatures

• • Lighting package includes excellent headlight light pattern and distinctive V-shaped taillight
• HID Driving Beam available

Pure Victory Gear Accessories

• This model accommodates various electronics, including the new Garmin® zumo®660 GPS
• Reverse available as an accessory
• Pure Victory Gear offers over 77 Victory Vision model-family accessories
