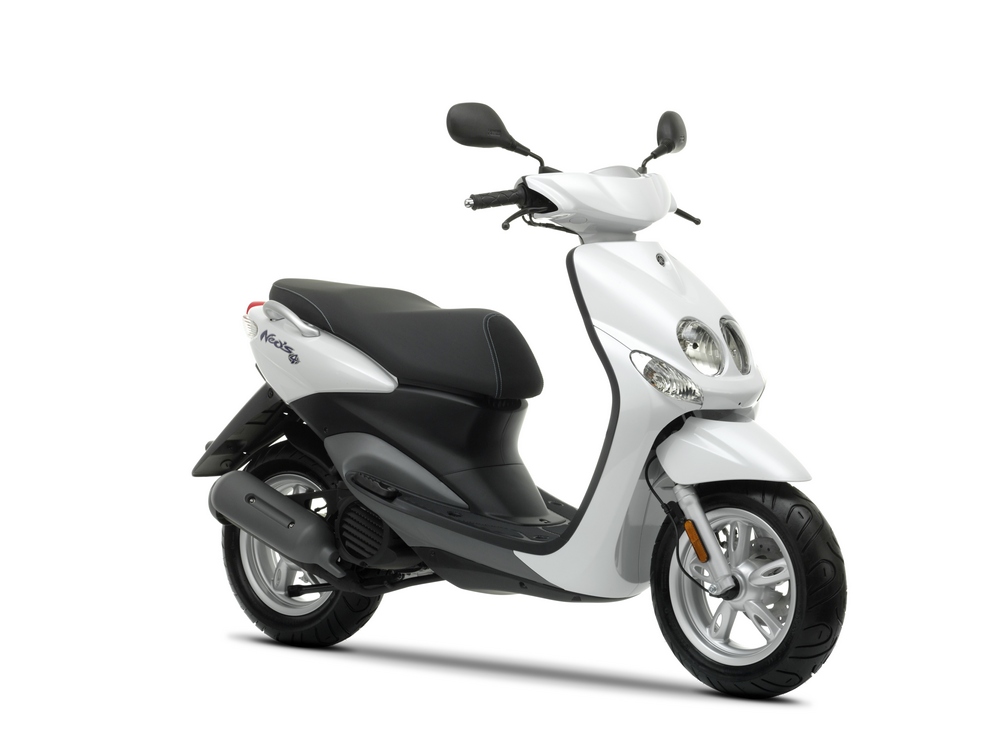

2009 Yamaha YN50F Neo 4-Stroke

Technical Specifications

Engine

• Type - Liquid cooled 4 stroke single cylinder
• Displacement - 49.4 cc
• Bore x stroke - 38 x 43.6 mm
• Compression ratio - 12.0 : 1
• Max. Power - 2.30 kW @ 7,000 rpm
• Max. Torque - 3.15 Nm @ 7,000 rpm
• Lubrication system - Wet sump
• Fuel supply system - Fuel Injection
• Ignition system - T.C.I.
• Starter system - Electric and kick
• Transmission system - V-Belt Automatic

Chassis

• Front suspension - Telescopic fork
• Front wheel travel - 70 mm
• Rear suspension - Unit swing
• Rear wheel travel - 60 mm
• Front brake - Single Disc Ø 190 mm
• Rear brake - Drum Ø 110 mm
• Front tyre - 120/70-12
• Rear tyre - 130/70-12

Dimensions

• Overall length - 1,840 mm
• Overall width - 663 mm
• Overall height - 1.118 mm
• Seat height - 790 mm
• Wheelbase - 1.275 mm
• Min. ground clearance - 154 mm
• Wet weight (incl. full oil and fuel tank) - 95 kg
• Fuel capacity - 5.4 litres

Specifications are subject to change without notice, in accordance with national regulation and legislations.
