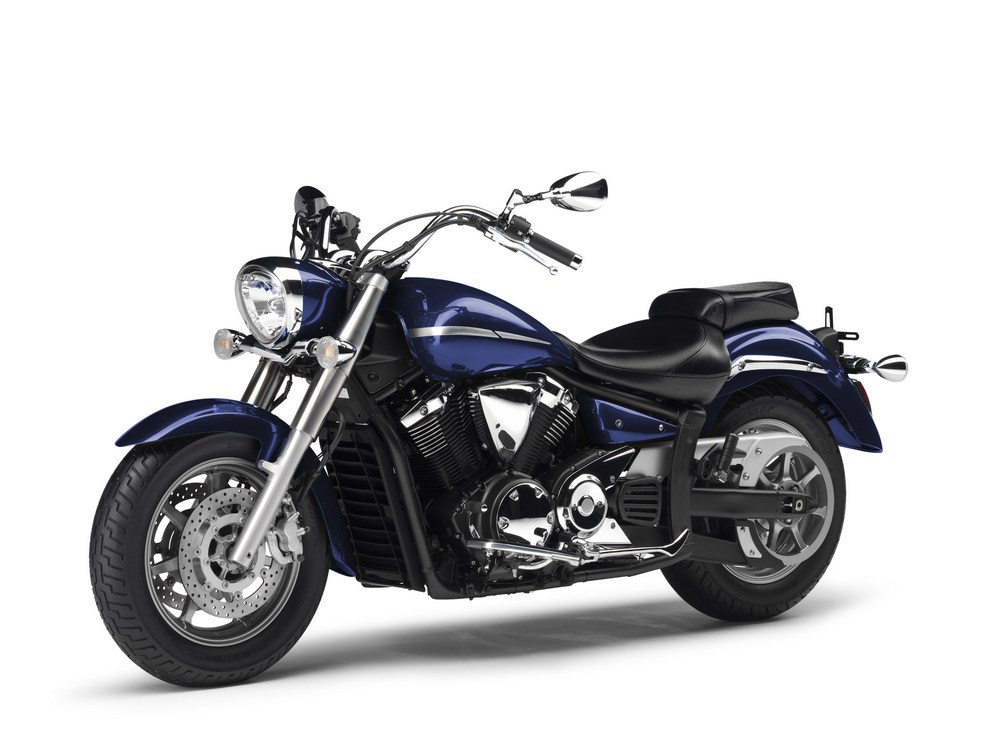

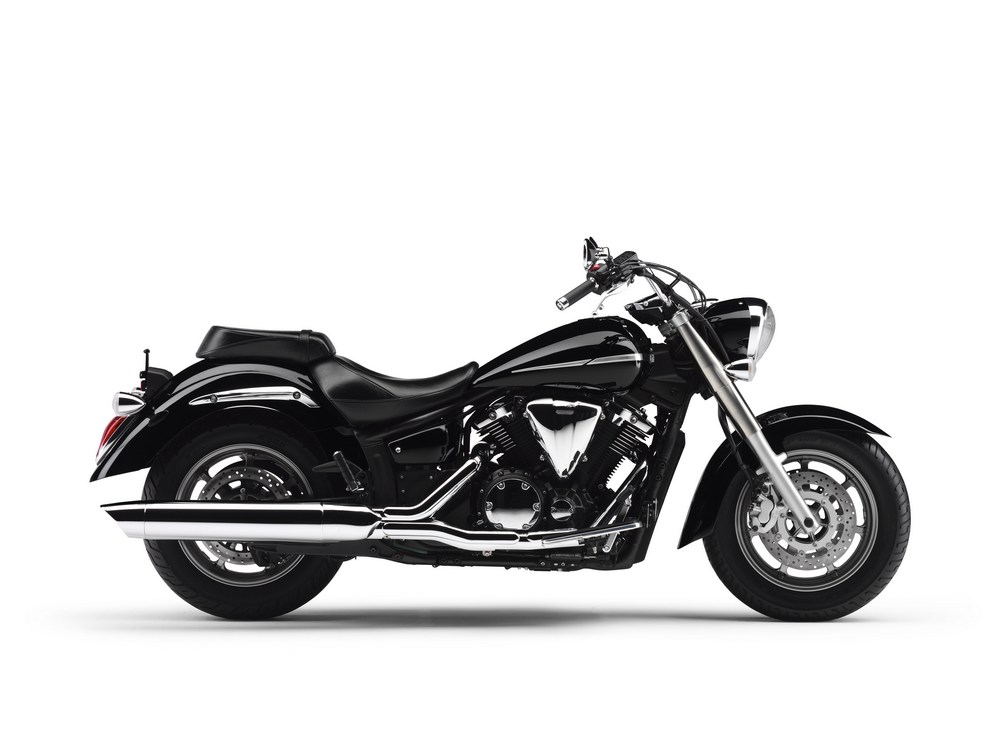

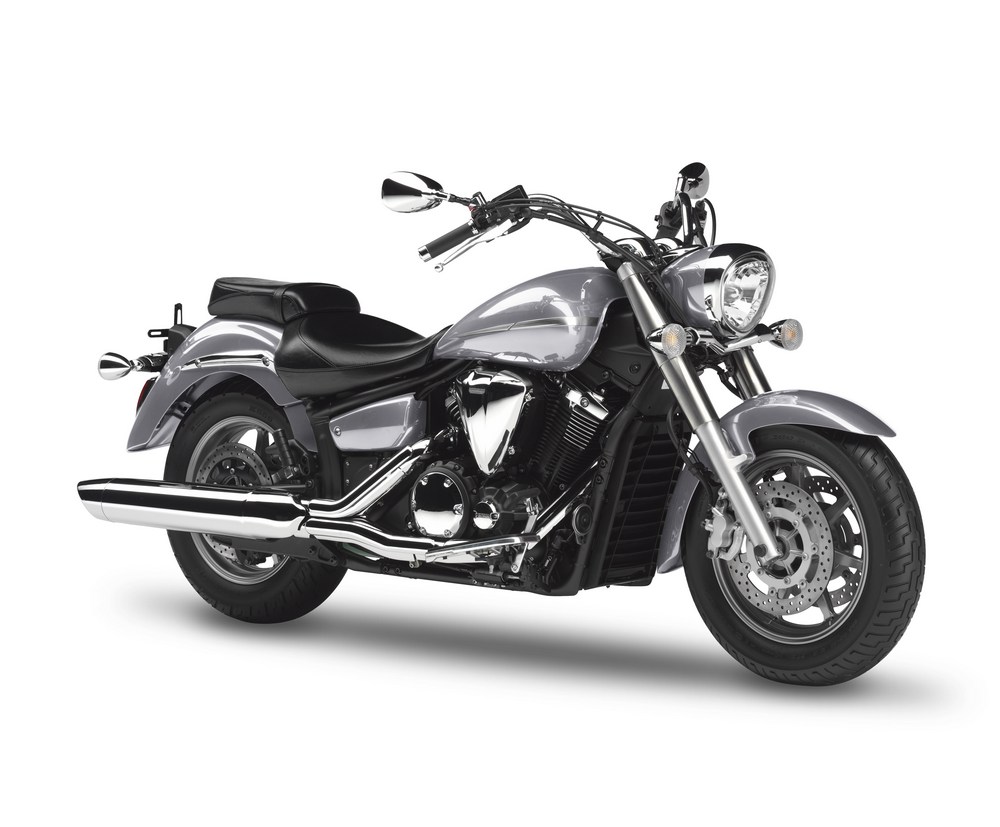

2009 Yamaha XVS1300A Midnight Star

Technical Specifications

Engine

• Type - Liquid-cooled, 4-stroke, V-type 2-cylinder, 4-valves, OHC
• Displacement - 1,304 cc
• Bore x stroke - 100.0 x 83.0 mm
• Compression ratio - 9.5:1
• Max. Power - 53.5 kW (73 PS) @ 5,500 rpm
• Max. Torque - 106 Nm (10.8 kg-m) @ 4,000 rpm
• Lubrication system - Wet sump
• Fuel supply system - Fuel injection
• Clutch type - Wet, multiple disc coil spring
• Ignition system - TCI
• Starter system - Electric
• Transmission system - Constant mesh, 5-speed
• Final transmission system - Belt
• Primary reduction ratio - 70/45 (1.556)
• Secondary reduction ratio - 70/30 (2.333)
• Gear ratio, 1st gear - 36/13 (2.769)
• Gear ratio, 2nd gear - 32/18 (1.778)
• Gear ratio, 3rd gear - 29/21 (1.381)
• Gear ratio, 4th gear - 29/26 (1.115)
• Gear ratio, 5th gear - 24/25 (0.960)

Chassis

• Frame - Double cradle
• Front suspension - Telescopic forks
• Front wheel travel - 135 mm
• Rear suspension - Swingarm
• Rear wheel travel - 110 mm
• Caster angle - 32º 40"
• Trail - 145 mm
• Front brake - Dual discs, Ø 298 mm
• Rear brake - Single disc, Ø 298 mm
• Front tyre - 130/90 16M/C 67H
• Rear tyre - 170/70B 16M/C 75H

Dimensions

• Overall length - 2,490 mm
• Overall width - 980 mm
• Overall height - 1,115 mm
• Seat height - 715 mm
• Wheelbase - 1,690 mm
• Min. ground clearance - 145 mm
• Wet weight (including full oil and fuel tank) - 303 kg
• Fuel capacity - 18.5 litres
• Oil capacity - 3.7 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
