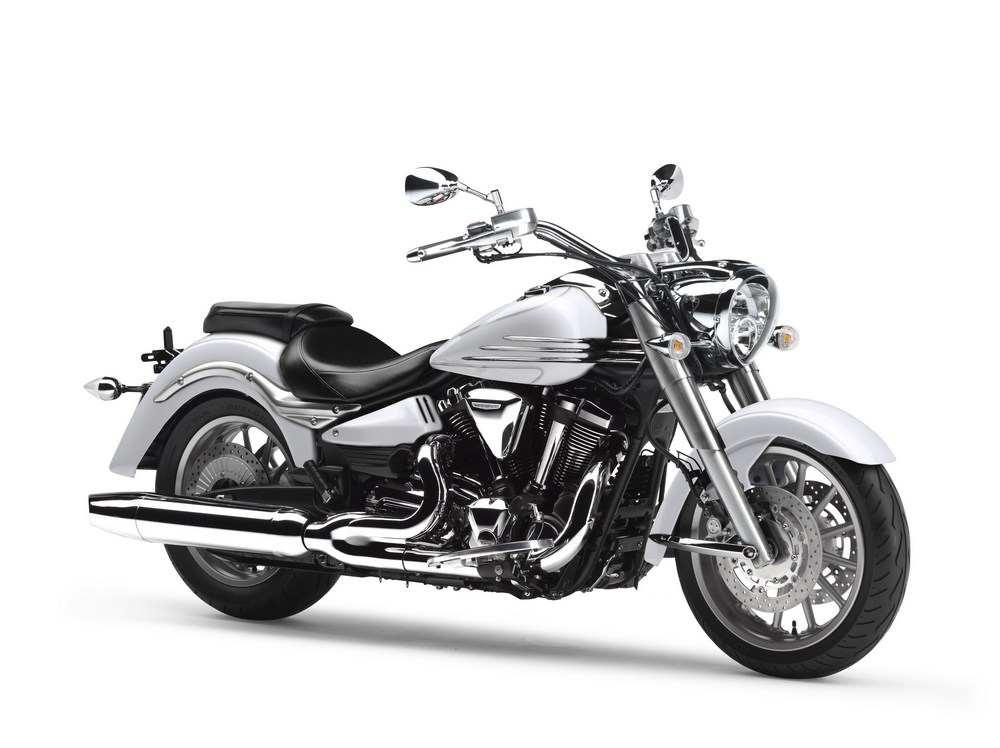

2009 Yamaha XV1900A Midnight Star

Technical Specifications

Engine

• Type - Air-cooled, 4-stroke, V-type 2-cylinder, 4-valves, OHV
• Displacement - 1,854 cc
• Bore x stroke - 100.0 x 118.0 mm
• Compression ratio - 9.48:1
• Max. Power - 66.4 kW (90 PS) @ 4,750 rpm
• Max. Torque - 155.1 Nm (15.8 kg-m) @ 2,500 rpm
• Lubrication system - Dry sump
• Fuel supply system - Twin-bore Electronic Fuel Injection
• Clutch type - Wet, multiple disc
• Ignition system - TCI
• Starter system - Electric
• Transmission system - Constant mesh, 5-speed
• Final transmission system - Belt
• Primary reduction ratio - 72/51 (1.412)
• Secondary reduction ratio - 37/30x70/31 (2.785)
• Gear ratio, 1st gear - 38/16 (2.375)
• Gear ratio, 2nd gear - 33/21 (1.571)
• Gear ratio, 3rd gear - 29/25 (1.160)
• Gear ratio, 4th gear - 26/28 (0.929)
• Gear ratio, 5th gear - 24/30 (0.800)

Chassis

• Frame - Aluminium double cradle
• Front suspension - Telescopic forks
• Front wheel travel - 130 mm
• Rear suspension - Swingarm (link suspension)
• Rear wheel travel - 110 mm
• Caster angle - 30.9º
• Trail - 152 mm
• Front brake - Dual discs, Ø 298 mm
• Rear brake - Single disc, Ø 320 mm
• Front tyre - 130/70R18M/C 63H
• Rear tyre - 190/60R17M/C 78H

Dimensions

• Overall length - 2,580 mm
• Overall width - 1,100 mm
• Overall height - 1,125 mm
• Seat height - 705 mm
• Wheelbase - 1,715 mm
• Min. ground clearance - 155 mm
• Wet weight (including full oil and fuel tank) - 346 kg
• Fuel capacity - 17 litres
• Oil capacity - 5.2 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
