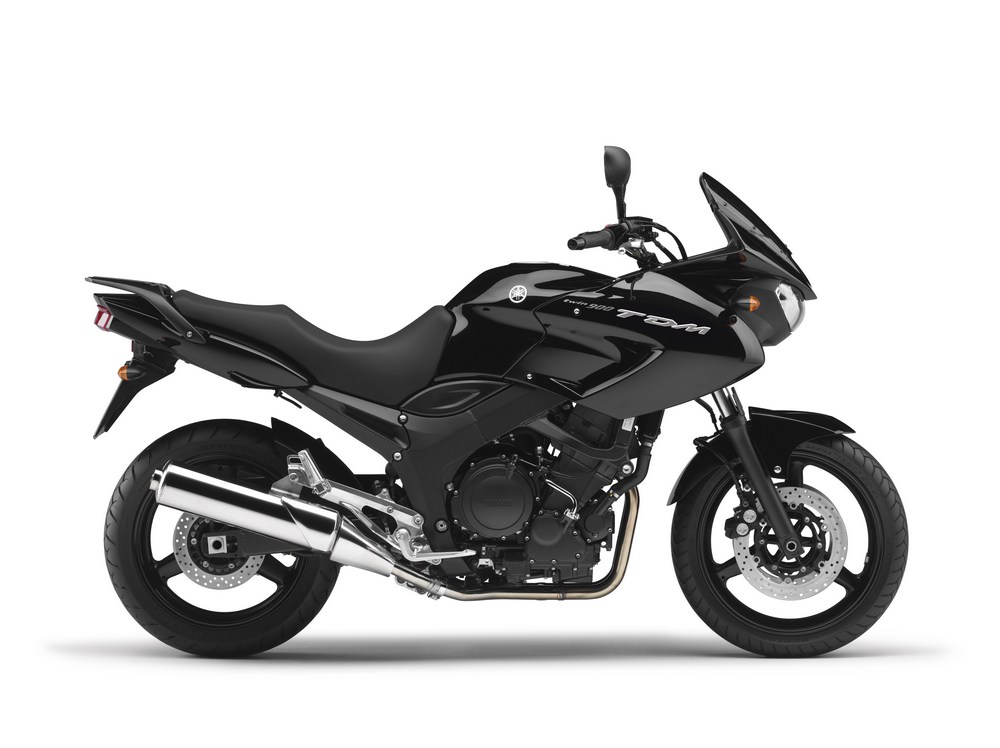

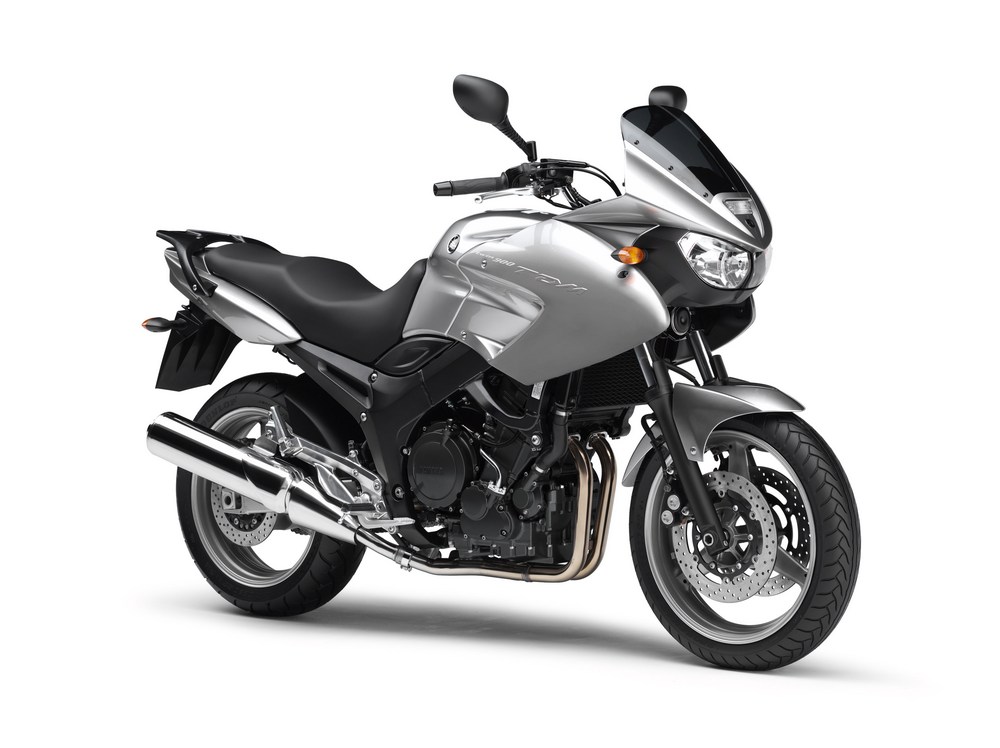

2009 Yamaha TDM900

Technical Specifications

Engine

• Type - Liquid-cooled, 4-stroke, forward-inclined parallel 2-cylinder, 5-valves, DOHC
• Displacement - 897 cc
• Bore x stroke - 92.0 x 67.5 mm
• Compression ratio - 10.4:1
• Max. Power - 63.4 kW (86 PS) @ 7,500 rpm
• Max. Torque - 88.8 Nm (9.1 kg-m) @ 6,000 rpm
• Lubrication system - Dry sump
• Fuel supply system - Electronic Fuel Injection
• Clutch type - Wet, multiple-disc coil spring
• Ignition system - TCI
• Starter system - Electric
• Transmission system - Constant mesh, 6-speed
• Final transmission system - Chain
• Primary reduction ratio - 67/39 (1.718)
• Secondary reduction ratio - 42/16 (2.625)
• Gear ratio, 1st gear - 33/12 (2.750)
• Gear ratio, 2nd gear - 37/19 (1.947)
• Gear ratio, 3rd gear - 34/22 (1.545)
• Gear ratio, 4th gear - 31/25 (1.240)
• Gear ratio, 5th gear - 26/25 (1.040)
• Gear ratio, 6th gear - 24/26 (0.923)

Chassis

• Frame - Aluminium, diamond shaped
• Front suspension - Telescopic forks
• Front wheel travel - 150 mm
• Rear suspension - Swingarm (link suspension)
• Rear wheel travel - 133 mm
• Caster angle - 25º 30'
• Trail - 114 mm
• Front brake - Dual discs, Ø 298 mm
• Rear brake - Single disc, Ø 245 mm
• Front tyre - 120/70 ZR17 M/C (59W)
• Rear tyre - 190/50 ZR17 M/C (73W)

Dimensions

• Overall length - 2,180 mm
• Overall width - 800 mm
• Overall height - 1,290 mm
• Seat height - 825 mm
• Wheelbase - 1,485 mm
• Min. ground clearance - 160 mm
• Wet weight (including full oil and fuel tank) - 223 kg
• Fuel capacity - 20 litres
• Oil capacity - 4.7 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
