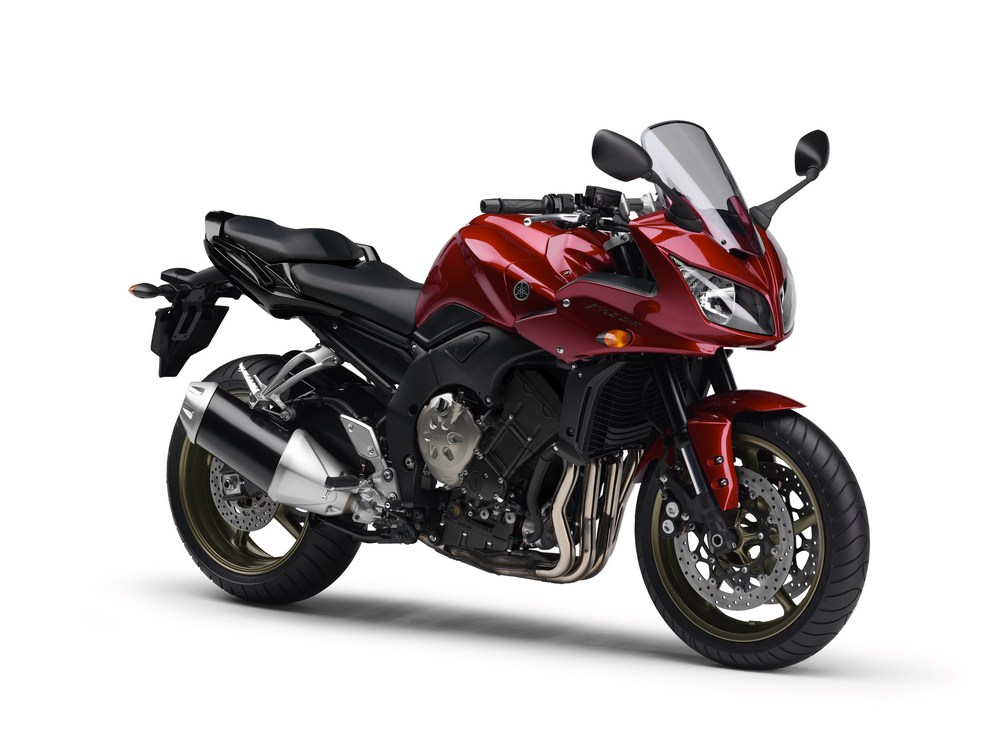

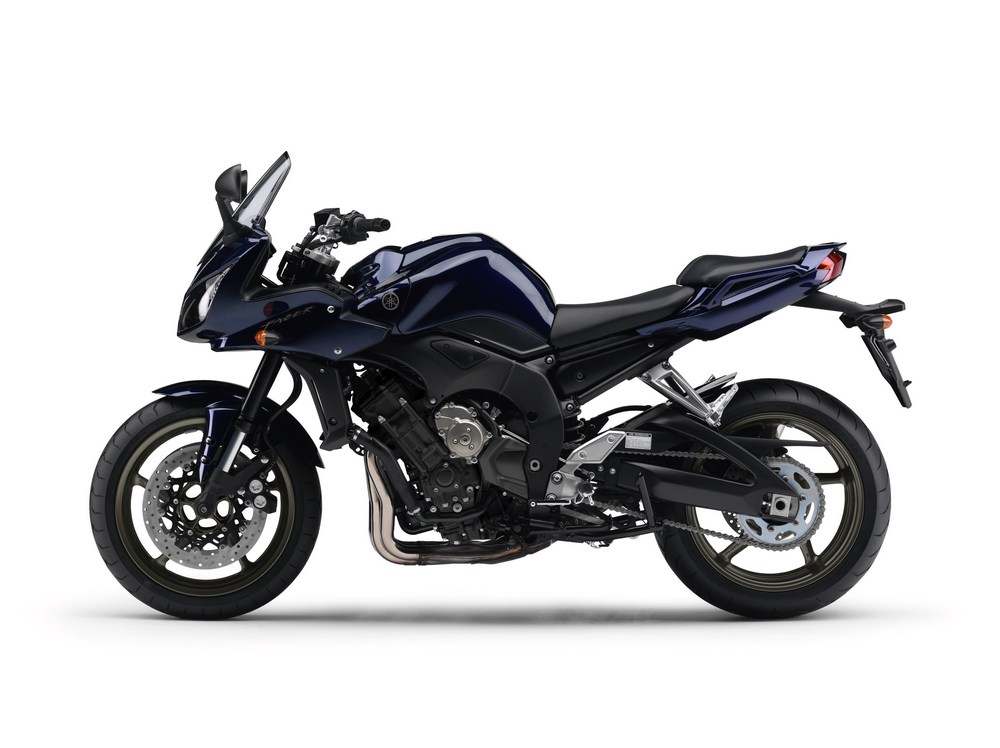

2009 Yamaha FZ1 Fazer

Technical Specifications

Engine

• Type - Liquid-cooled, 4-stroke, forward-inclined parallel 4-cylinder, DOHC
• Displacement - 998 cc
• Bore x stroke - 77.0 x 53.6 mm
• Compression ratio - 11.5:1
• Max. Power - 110.3 kW (150 PS) @11,000 rpm
• Max. Torque - 106.0 Nm (10.8 kg-m) @ 8,000 rpm
• Lubrication system - Wet sump
• Fuel supply system - Fuel Injection
• Clutch type - Wet, multiple-disc coil spring
• Ignition system - TCI (digital)
• Starter system - Electric
• Transmission system - Constant mesh, 6-speed
• Final transmission system - Chain
• Primary reduction ratio - 65/43 (1.512)
• Secondary reduction ratio - 45/17 (2.647)
• Gear ratio, 1st gear - 38/15 (2.533)
• Gear ratio, 2nd gear - 33/16 (2.063)
• Gear ratio, 3rd gear - 37/21 (1.762)
• Gear ratio, 4th gear - 35/23 (1.522)
• Gear ratio, 5th gear - 27/20 (1.350)
• Gear ratio, 6th gear - 29/24 (1.208)

Chassis

• Frame - Aluminium, diamond shaped
• Front suspension - Telescopic forks
• Front wheel travel - 130 mm
• Rear suspension - Swingarm (link suspension)
• Rear wheel travel - 130 mm
• Caster angle - 25º
• Trail - 109 mm
• Front brake - Dual discs, Ø 320 mm
• Rear brake - Single disc, Ø 245 mm
• Front tyre - 120/70 ZR17M/C (58W)
• Rear tyre - 190/50 ZR17M/C (73W)

Dimensions

• Overall length - 2,140 mm
• Overall width - 770 mm
• Overall height - 1,205 mm
• Seat height - 815 mm
• Wheelbase - 1,460 mm
• Min. ground clearance - 135 mm
• Wet weight (including full oil and fuel tank) - 220 kg
• Fuel capacity - 18 litres
• Oil capacity - 3.8 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
