2009 Triumph Speedmaster

2009 Triumph Speedmaster09 Triumph Speedmaster

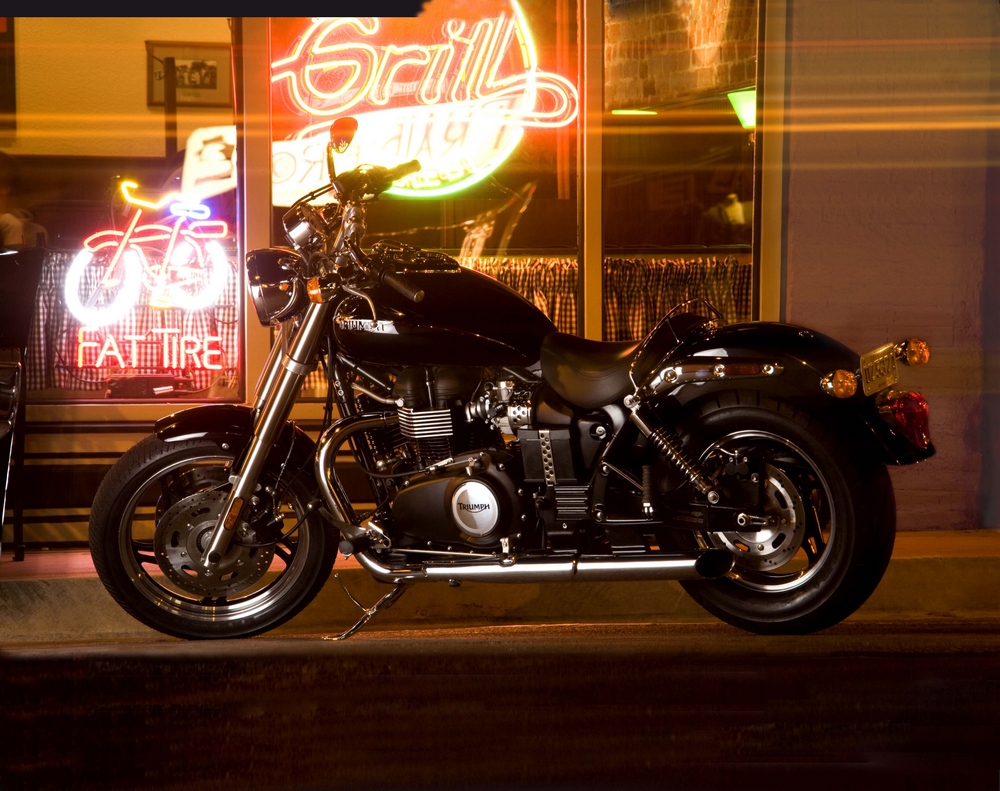

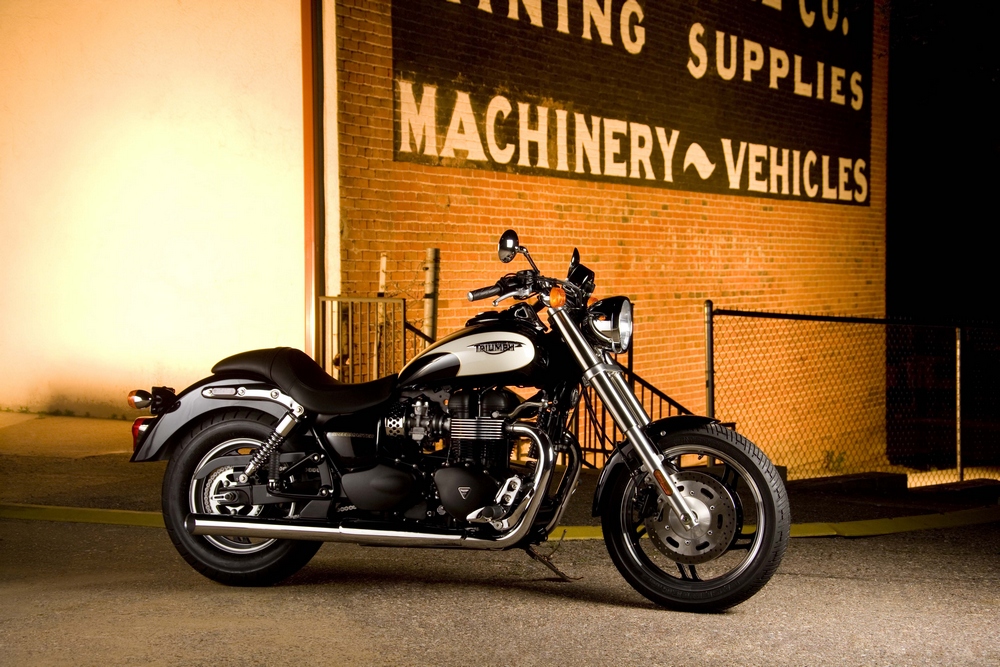

With its dark, brooding lines and a pared-down hot-rod essence, the Speedmaster is a standout middleweight cruiser from every angle.

Powered by a fuel injected, 270º crankshaft, version of Triumph’s esteemed 865cc parallel twin engine, the stripped down factory custom delivers peak power of 62PS (61bhp) at 6,800rpm, with maximum torque of 74Nm (55ft.lbf) available at just 3,300rpm.

As a hot-rodded ‘Factory Custom’, the Speedmaster proves that less is more, and minimalism is key to the bike’s harder edge. The rev-counter is mounted discretely on the fuel tank nacelle, the large round white-faced speedo perches cleanly in the rider’s line of sight on its top-yoke mounting. A two-tone colour combination of Phantom Black and New England White is new for the 2009 model year, joining the singular Phantom Black option. Also new for 2009 are colour-coded side panels, giving a more stylish and cohesive look.

Completing the hot rod look are cast wheels, 18 inch at the front and 15 inch at the rear. Twin 310mm front discs – gripped by twin-piston calipers – bring the Speedmaster to a halt with power and assurance, while the twin shocks and wide-style telescopic forks make for a planted and supple ride.

And if the stripped down look doesn’t quite meet the individual’s taste, there is always the extensive range of Triumph Genuine Accessories specifically designed to lend even more style and individuality.


  • Engine type - air-cooled, DoHc, parallel-twin, 270º firing interval
  • capacity - 865cc
  • Bore/Stroke - 90 x 68mm
  • fuel System - Multipoint sequential electronic fuel injection with Sai
  • final Drive - X ring chain
  • clutch - Wet, multi-plate
  • Gearbox - 5-speed
  • frame - tubular steel cradle
  • Swingarm - twin-sided, tubular steel
  • Wheels - front - cast aluminium alloy 5-spoke 18 x 2.5in
  • Rear; cast aluminium alloy 5 spoke 15 x 3.5in
  • tyres - front; 110/80 R18
  • Rear; 170/80 B15
  • Suspension - front; Kayaba 41mm forks with polished stainless steel shrouds and polished lowers, 130mm travel
  • Rear; Kayaba chromed spring twin shocks with adjustable preload, 96mm rear wheel travel
  • Brakes- front; twin 310mm disc, nissin 2-piston floating calipers
  • Rear; Single 285mm disc, nissin 2-piston floating caliper
  • instrument - display/functions analogue speedometer and tachometer with odometer and trip information
  • Length - 2420mm (95.3in)
  • Width (Handlebars) - 830mm (32.7in)
  • Height - 1160mm (45.7in)
  • Seat Height - 720mm (28.3in)
  • Wheelbase - 1655mm (65.2in)
  • Rake/trail - 33.3º/153mm
  • Dry Weight - 229kg (504lbs)
  • fuel tank capacity - 19.3 litres (4.3 gal / 5.1 US gals)
  • Maximum power - 62pS / 61bhp / 46kW @ 6800rpm
  • Maximum torque - 74nm / 55ft.lbf @ 3300rpm
