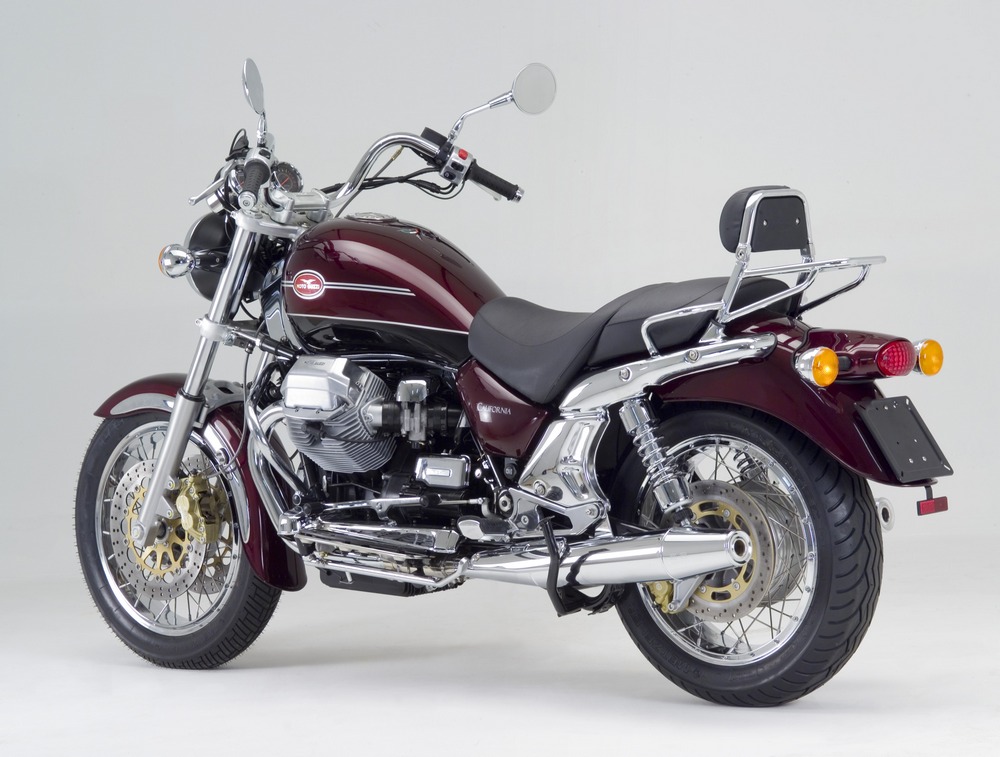

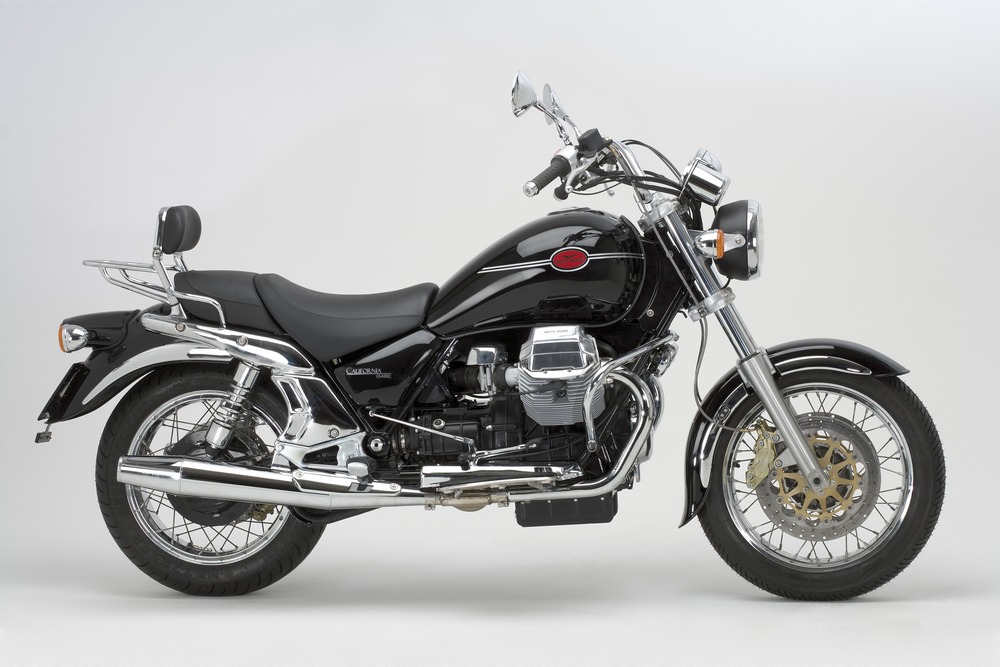

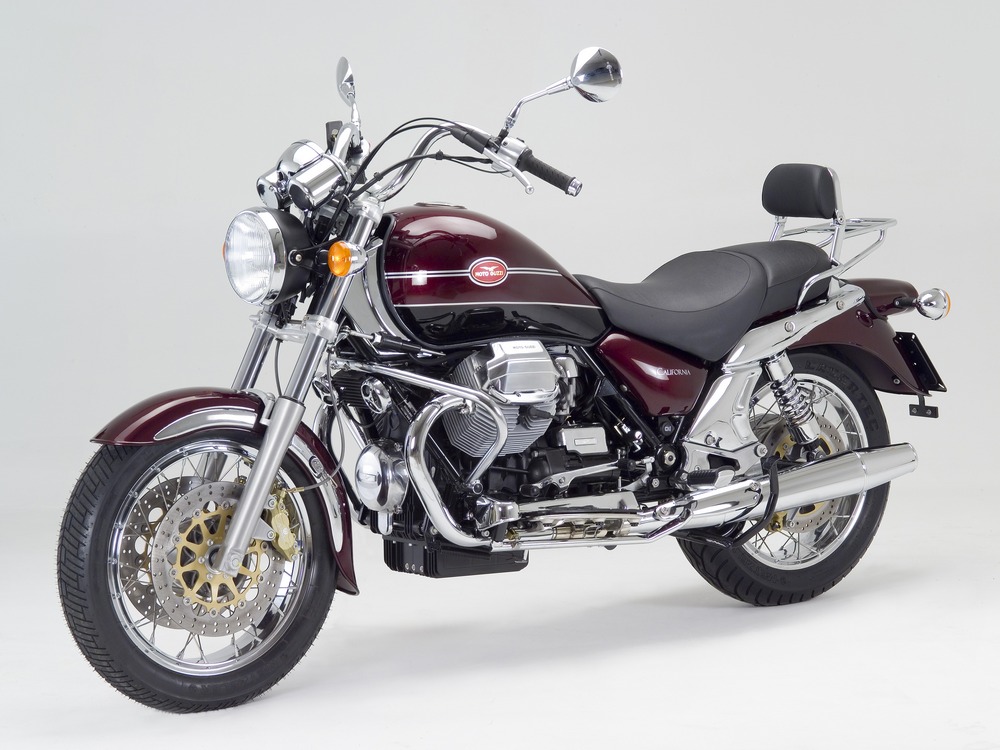

2009 Moto Guzzi California Classic

Moto Guzzi California ClassicCalifornia ClassicMoto Guzzi California

Technical Specifications

Engine

  • Type : 90° V-Twin, 4 stroke
  • Cooling system : air cooled
  • Displacement : 1,064 cc
  • Bore and stroke : 92 x 80 mm
  • Compression ratio : 9.8 : 1
  • Timing system : 2 overhead valves moved by light alloy push–rod sand rocker arm with mechanical tappets
  • Valve timing : Intake open 24° B.T.D.C. intake close 52° A.B.D.C. exhaust open 54° B.B.D.C. exhaust close 22° A.T.D.C.
  • Maximum power : 54 kW at 6,400 rpm
  • Maximum torque : 94 Nm at 5,000 rpm
  • Fuel system : Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 40 mm with injectors Weber IW 031
  • Starting system : electric Ignition : Magneti Marelli IAW 15RC electronic digital ignition; twin spark
  • Exhaust system : steel, 2 tubes connected to an expansion room, that is connected to 2 steel mufflers; three-way catalyzer with Lambda sensor (Euro 3) Homologation Euro 3
  • Lubrication : with lobes pump and pressure regulator

Transmission

  • Gearbox : 5 speed, costant mesh gears with built-in cush drive
  • Internal ratios : 1° 14/28 = 1:2 : 2° 18/25 = 1:1.389 : 3° 21/22 = 1:1.048 : 4° 23/20 = 1:0.870 : 5° 28/21 = 1:0.750
  • Primary drive : by helical gears, ratio 17/21 = 1: 1.235
  • Secondary drive : shaft drive, ratio 8/33 = 1:4.125
  • Clutch : dual disc dry with mechanical control

Chassis

  • Frame : detachable tubular duplex cradle in special high-strengh steel
  • Wheelbase : 1,560 mm
  • Trail : 116 mm
  • Rake : 29°
  • Front suspension : Marzocchi hydraulic telescopic fork, Ø 45 mm, adjustable separately
  • Front wheel travel : 140 mm
  • Rear suspension : swing arm with 2 hydraulic shock absorbers, exstension adjustable
  • Rear wheel travel : 96 mm
  • Braking system : integral breaking system, with proportioning and delay valve
  • Front brake : double Brembo Serie Oro stainless steel floating disc, Ø 320 mm, 4 piston calipers
  • Rear brake : single Brembo stainless steel floating disc, Ø 282 mm, 2 piston calipers
  • Wheels : Behr tubeless spoked steel rims
  • Front rim : 2.50” x 18”
  • Rear rim : 4.00” x 17”
  • Front tyre : 110/90 VB 18”
  • Rear tyre : 150/70 VB 17”

Electrical Equipment

  • Voltage : 12 V
  • Battery : 12 V – 30 Ah
  • Alternator : 12 V – 350 W

Dimensions

  • Length : 2,380 mm
  • Width : 815 mm
  • Height : 1,150 mm
  • Seat height : 780 mm
  • Ground clearance : 190 mm
  • Handlebar height : 1,050 mm
  • Front footrest height : 326 mm
  • Rear footrest height : 385 mm
  • Dry weight : 251 kg
  • Fuel tank capacity : 19 litre
  • Reserve : 4 litre
