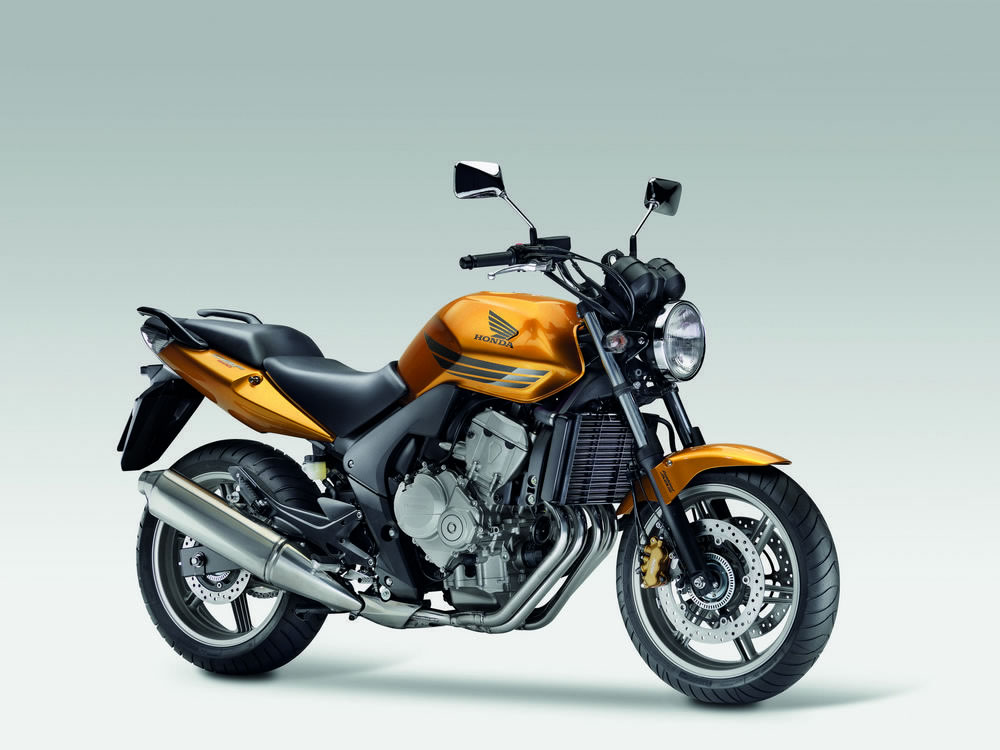

2009 Honda CBF600N

Introduction

Heading the mid-displacement Naked class, the CBF600 is a tried and trusted companion for all kinds of riders and all kinds of riding. Its comfortable, ‘just fit’ proportions are evenly matched with strong performance, low emissions and crisp, sporty handling. This makes it a reliable and versatile all-rounder for novices, commuters and weekend motorcyclists alike. Its compact, fuel-injected inline-4 engine (based on the all-conquering CBR600RR’s) is housed in a lightweight cast aluminium frame that feels nimble and easy to handle, both in urban traffic and at higher speeds. The seat and suspension systems are adjustable. Power delivery is seamless and braking is superbly smooth. All this is presented in a sleek and compact package with refreshingly basic styling and beautifully sculpted bodywork. High-powered, yet compact, friendly and easy to handle, the versatile CBF600N is a top Honda-quality celebration of the pure, undiluted pleasure that is classic Naked motorcycling.

Key Features

• Simple and elegant naked styling provides a timeless attraction and a comfortable ride
• Lightweight and compact fuel-injected 599cm3 DOHC inline-four engine tuned for a more comfortable balance of performance and acceleration
• HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust emissions to ensure full EURO-3 compliance
• Three-position height-adjustable seat offers custom-fit comfort and long hours of riding enjoyment, whatever your size
• Advanced die-cast aluminium frame reduces weight while maintaining excellent rigidity for reassuring sportbike handing
• Compliant 41mm telescopic front fork and Monoshock rear damper deliver smooth, confident handling
• Responsive stopping power provided by dual-piston caliper dual front disc brakes with 296mm floating rotors and a single-piston caliper rear disc brake
• New Pearl Amber Yellow colour variation

Colours

• Pearl Amber Yellow
• Pearl Night Star Black
• Quasar Silver Metallic

Accessories

• Comfort
• Luggage
• Decoration
• Protection
• Audio and Electronics
• Anti-Theft

Availability & Model Changes For 2009

• Available: March 2009
• Changes for 2009: New colour

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Displacement - 599.3cm3
• Bore x Stroke - 67 x 42.5mm
• Compression Ratio - 11.6 : 1
• Max. Power Output - 57kW/10,500min-1 (95/1/EC)
• Max. Torque - 59Nm/8,250min-1 (95/1/EC)
• Idling Speed - 1,300min-1
• Oil Capacity - 3.5 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 32mm
• Aircleaner - Dry, cartridge-type paper filter
• Fuel Tank Capacity - 20 litres (including 4-litre warning light reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 4° BTDC (idle) ~ 60° BTDC (12,000min-1)
• Sparkplug Type - CR8EH-9 (NGK); U24FER-9 (DENSO)
• Starter - Electric
• Battery Capacity - 12V/8.6AH
• ACG Output - 333W
• Headlight - 12V, 60W? 1 (low) / 55W ? 1 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Mechanical; cable-actuated
• Transmission Type - 6-speed
• Primary Reduction - 2.111 (76/36)
• Gear Ratios - 1; 2.750 (33/12), 2; 1.938 (31/16), 3; 1.556 (28/18), 4; 1.304 (30/23), 5; 1.150 (23/20), 6; 1.042 (25/24)
• Final Reduction - 2.625 (42/15)
• Final Drive - O-ring sealed chain

Frame

• Type - Mono-backbone; gravity die-cast aluminium

Chassis

• Dimensions (LxWxH) - 2,160 x 765 x 1,110mm
• Wheelbase - 1,490mm
• Caster Angle - 26°
• Trail - 110mm
• Turning Radius - 2.8m
• Seat Height - 785mm (±15mm)
• Ground Clearance - 130mm
• Kerb Weight - 213kg (F: 103kg; R: 110kg) * 218kg (F: 105kg; R: 113kg)
• Max. Carrying Capacity - 195kg
• Loaded Weight - 417kg (F: 144kg; R: 273kg)

Suspension

• Front - 41mm telescopic fork, 120mm axle travel
• Rear - Monoshock damper with 7-step adjustable preload, 125mm axle travel

Wheels

• Type - Front; U-section twin 6-spoke cast aluminium
• Rear; U-section twin 6-spoke cast aluminium
• Rim Size - Front; 17M/C x MT3.50
• Rear; 17M/C x MT5.00
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 160/60 ZR17M/C (69W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Front - 296 x 4.5mm dual hydraulic disc with dual-piston (*Combined three-piston) calipers, (*ABS) and sintered metal pads
• Rear - 240 x 5mm hydraulic disc with (*Combined) single-piston caliper, (*ABS) and sintered metal pads

*Combined-ABS version

All specifications are provisional and subject to change without notice
