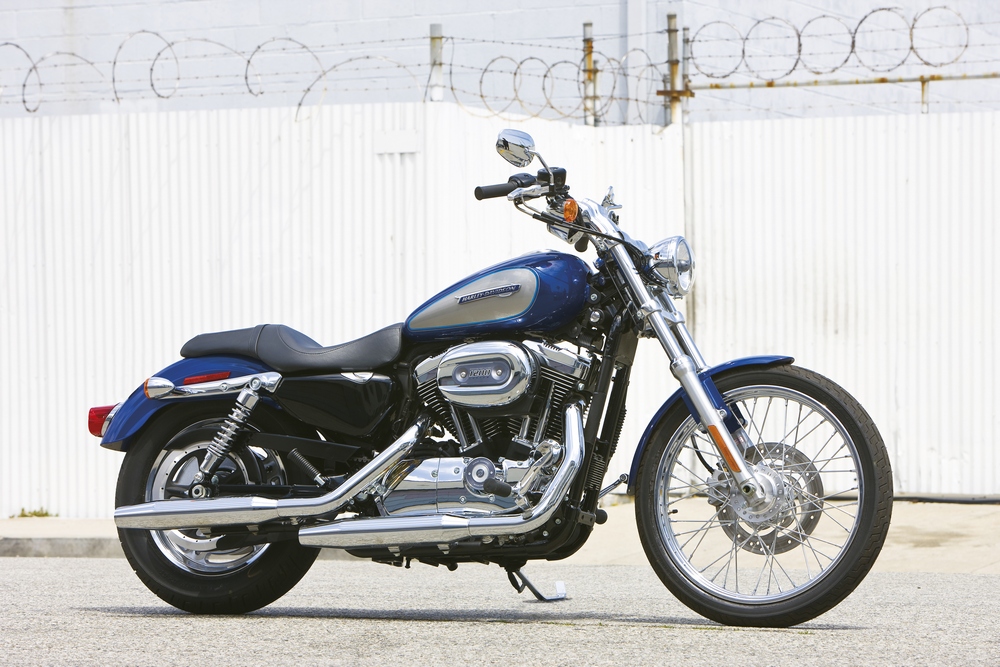

2009 Harley Davidson XL 1200C Sportster
Custom
XL 1200C Sportster 1200
Custom Packing plenty of power with just the right
mix of laid back custom style and chrome, the 1200
Custom stays true to its name. With a new lighter
weight chrome slotted disc cast aluminium rear wheel,
chrome laced steel 21-inch front wheel with new fender,
chrome engine highlights, chrome handlebars and headlight,
and a polished fuel tank console, the 1200 Custom
shimmers with style. Forward controls and pull-back
risers give the rider a cool-for-cruising position
in the saddle.
XL 1200C Sportster 1200 Custom features:
- Isolation-mounted 1200cc Evolution engine
- Black powdercoated engine with chrome treatment
- New lighter chrome slotted disc cast aluminium
16-inch rear wheel
- Chrome laced steel 21-inch front wheel
- Chrome staggered shorty dual exhaust system
- Chrome bullet headlight Low-rise, polished handlebars
on chrome pull-back risers
- New recalibrated suspension
- New low profile front fender
- One-piece, two-up Sportster classic seat
- Low profile rear shocks
- Forward foot controls
- Polished fuel tank console
- 17 litre fuel tank
- Smart Security System
Dimensions
Length (mm) ...................................................................................................2275
Seat Height (mm)2 .............................................................................................673
Ground Clearance (mm) ....................................................................................112
Rake at steering head (°) / Trail (mm) ........................................................
30 / 119
Fork Angle ........................................................................................................30°
Wheelbase (mm) .............................................................................................1520
Fuel Capacity (litres) ...........................................................................................17
Oil Capacity w/fi lter (litres) .................................................................................3.4
Dry Weight (kg) .................................................................................................255
Powertrain
Engine .................................................................................Air-cooled,
Evolution
Displacement (cu.cm) .....................................................................................1200
Bore x Stroke (mm) ...............................................................................88.9
x 96.8
Fuel System ...................................Electronic
Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.7:1
Exhaust System ....................Chrome, staggered
shorty exhaust with dual mufflers
Tyres:
Front ...............................................................................D402F
MH90-21 54H
Rear ...............................................................................
D401 150/80B16 71H
Wheels:
Front ...........................................................................
21” Chrome, steel laced
Rear ...........................................New
16” Chrome, cast aluminium slotted disc
Drivetrain
Primary Drive ..............................................................................Chain,
38/57 ratio
Final Drive .....................................................................................Belt,
30/68 ratio
Clutch ..................................................................................................
9-plate, wet
Transmission .............................................................................................5-speed
Gear Ratios:
1st ............................................................................................................
9.00
2nd ...........................................................................................................
6.43
3rd ............................................................................................................
4.78
4th ............................................................................................................
3.97
5th ............................................................................................................
3.40
Chassis
Brakes, Dia (Front/Rear,mm) ...................................................................
292 / 292
Caliper Type .....................................................Dual-piston
front, single-piston rear
Front Fork .....................................................................................................39mm
Rear Shocks ......................................................
Coil-over; preload dual-adjustable
Suspension Travel:
Front (mm) .................................................................................................145
Rear (mm) ....................................................................................................54
Frame ............................. Mild steel tubular
frame; circular sections; cast junctions
Swingarm .....Mild steel, rectangular tube sections,
stamped junctions; MIG welded
Performance
Engine Torque (EU Standard EC95/1)5 ......................98
Nm / 72 ft lbs @ 3200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) ..........................................
31 / 29
Electrical
Charging ..................................................................
Single-phase, 30-amp system
......................................... (357W @
13.5V, 2000 rpm, 405W max power @ 13.5V)
Starting..................... 1.2 kW electric with
solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp .................... Quartz Halogen, 55-watt
low beam, 60-watt high beam
Tail/Stop Lights....................................................................................5W/21W
Turn Signal Lights ...............................................................
21W self-canceling
Instruments ..............Handlebars-mounted electronic
speedometer with odometer;
.........................................................
Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam,
neutral, low oil pressure, turn signals,
......................................... engine diagnostics,
low fuel warnings, security system
Colour Options
Vivid Black; Dark Blue Pearl; Red Hot Sunglo; Flame
Blue Pearl & Pewter Pearl; Red Hot Sunglo &
Smokey Gold; Vivid Black & Mirage Orange Pearl
Model Features
Black powder-coated engine with chrome treatment
covers; Chrome, bullet headlamp; Chrome, pull-back
riser; Forward-mounted rider footpegs; Standard passenger
footpegs; Stainless steel, low-rise handlebars; One-piece,
two-up Sportster® classic seat; New low-profile
rear shocks for improved ride quality; New low-profile
front fender
Warranty
Warranty .................................................................24
months (unlimited mileage)
Service Interval .........................................................First
1,000 miles (1,600 km),
.................................................................
every 5,000 miles (8,000 km) thereafter
|
