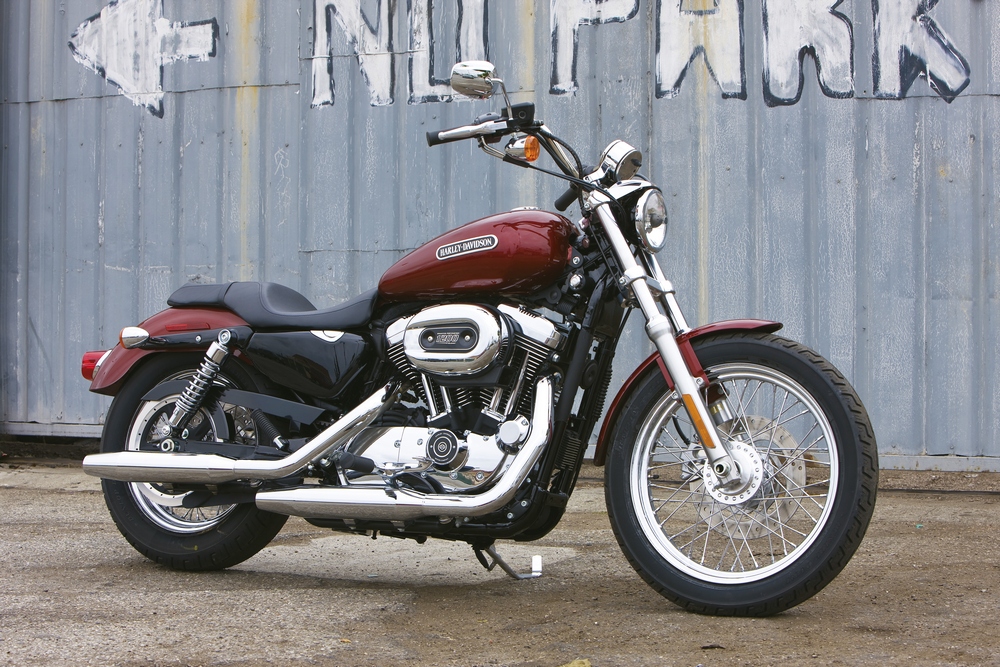

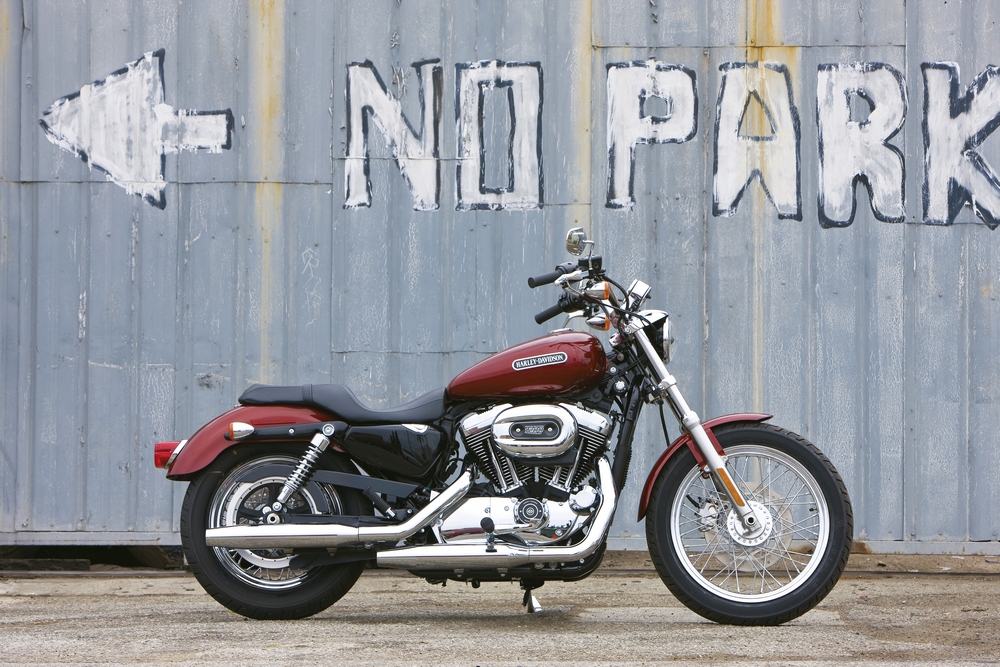

2009 Harley Davidson XL 1200L Sportster
Low

XL 1200L Sportster 1200 Low
Offering a blend of style, performance, agility and
easy-to-handle ergonomics, the 1200 Low adds a recalibrated
suspension and tyre-hugging front fender for 2009.
Powered by a fuel-injected 1200cc Evolution V-Twin
engine, the 1200 Low also features pull-back handlebars,
a low 668mm seat height, and a 17 litre fuel tank.
XL Sportster 1200 Low features:
- Isolation-mounted 1200cc Evolution engine
- Black powdercoated engine with chrome treatment
- Chrome steel laced wheels, 19-inch front / 16-inch
rear
- Wide handlebars on pull-back risers
- New recalibrated suspension
- New low profile front fender
- One-piece, two-up Sportster classic seat
- Chrome staggered shorty dual exhaust system
- Low profile rear shocks
- Low profile front forks
- Mid-mount foot controls
- Integrated chrome gauge housing and handlebar
clamp
- Black fender strut covers
- 17 litre fuel tank
- Smart Security System
Dimensions
Length (mm) ...................................................................................................2250
Seat Height (mm)2 .............................................................................................668
Ground Clearance (mm) ....................................................................................112
Rake at steering head (°) / Trail (mm) ........................................................
30 / 119
Fork Angle ........................................................................................................30°
Wheelbase (mm) .............................................................................................1515
Fuel Capacity (litres) ...........................................................................................17
Oil Capacity w/fi lter (litres) .................................................................................3.4
Dry Weight (kg) .................................................................................................251
Powertrain
Engine .................................................................................Air-cooled,
Evolution
Displacement (cu.cm) .....................................................................................1200
Bore x Stroke (mm) ...............................................................................88.9
x 96.8
Fuel System ...................................Electronic
Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.7:1
Exhaust System ....................Chrome, staggered
shorty exhaust with dual mufflers
Tyres:
Front .............................................................................
D401F 100/90-19 57H
Rear ...............................................................................
D401 150/80B16 71H
Wheels:
Front ...........................................................................
19” Chrome, steel laced
Rear ............................................................................
16” Chrome, steel laced
Drivetrain
Primary Drive ..............................................................................Chain,
38/57 ratio
Final Drive .....................................................................................Belt,
30/68 ratio
Clutch ..................................................................................................
9-plate, wet
Transmission .............................................................................................5-speed
Gear Ratios:
1st ............................................................................................................
9.00
2nd ...........................................................................................................
6.43
3rd ............................................................................................................
4.78
4th ............................................................................................................
3.97
5th ............................................................................................................
3.40
Chassis
Brakes, Dia (Front/Rear, mm) ..................................................................
292 / 292
Caliper Type .....................................................Dual-piston
front, single-piston rear
Front Fork .....................................................................................................39mm
Rear Shocks ......................................................
Coil-over; preload dual-adjustable
Suspension Travel:
Front (mm) .................................................................................................105
Rear (mm) ....................................................................................................54
Frame ............................. Mild steel tubular
frame; circular sections; cast junctions
Swingarm .....Mild steel, rectangular tube sections,
stamped junctions; MIG welded
Performance
Engine Torque (EU Standard EC95/1)5 ......................98
Nm / 72 ft lbs @ 3200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) ..........................................
30 / 31
Electrical
Charging ..................................................................
Single-phase, 30-amp system
......................................... (357W @
13.5V, 2000 rpm, 405W max power @ 13.5V)
Starting..................... 1.2 kW electric with
solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp .................... Quartz Halogen, 55-watt
low beam, 60-watt high beam
Tail/Stop Lights....................................................................................5W/21W
Turn Signal Lights ...............................................................
21W self-canceling
Instruments ..............Handlebars-mounted electronic
speedometer with odometer;
..........................................................
Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam,
neutral, low oil pressure, turn signals,
......................................... engine diagnostics,
low fuel warnings, security system
Colour Options
Vivid Black; Dark Blue Pearl; Flame Blue Pearl;
Red Hot Sunglo; White Gold Pearl & Pewter Pearl
Model Features
Black powder-coated engine with chrome covers; Chrome
headlamp visor; Chrome trim ring with black body headlamp;
Chrome riser; Mid-mounted rider footpegs; Standard
passenger footpegs; Stainless steel, pull-back handlebars;
One-piece, two-up Sportster classic seat; Low-profi
le front forks; New low profile rear shocks for improved
ride quality; New low-profile front fender
Warranty
Warranty .................................................................24
months (unlimited mileage)
Service Interval .........................................................First
1,000 miles (1,600 km),
.................................................................
every 5,000 miles (8,000 km) thereafter
|
