2009 Harley Davidson VRSCF V-Rod
Muscle

VRSCF V-Rod Muscle

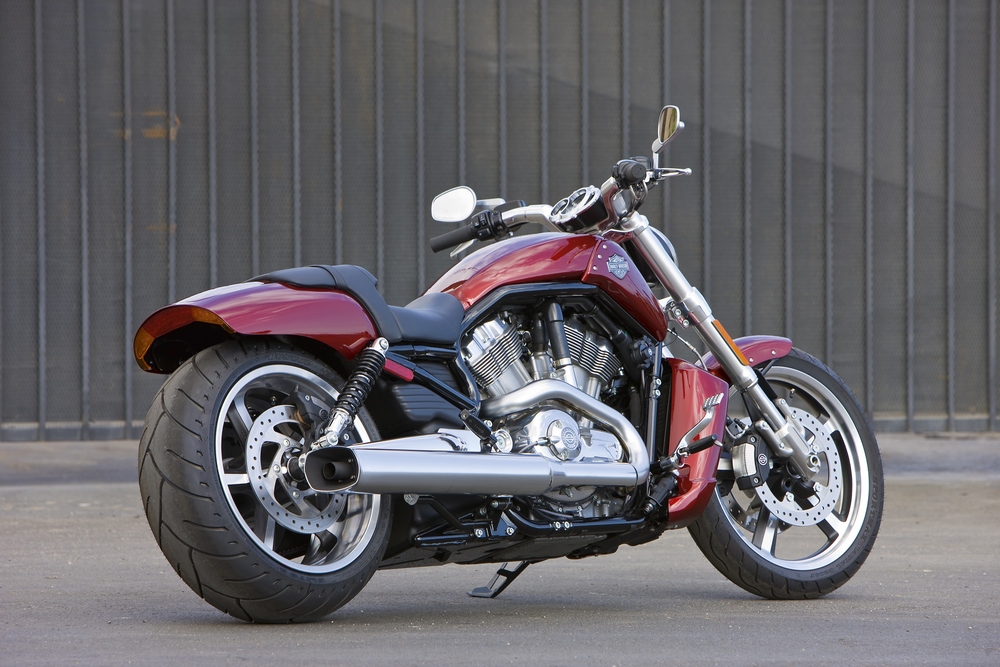

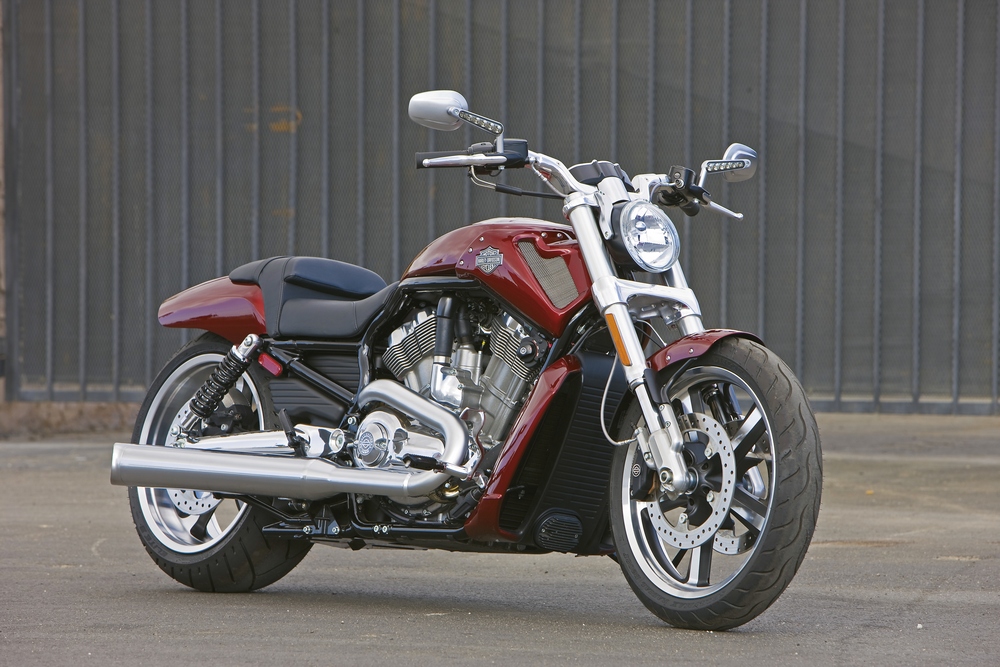

The wide, angular air-box cover and chopped tail
section give the new V-Rod Muscle lines that are clean,
athletic, and powerful. The size of the massive 240mm
rear tyre is accentuated by the new broad, clipped
and clean rear fender combined with an integrated
LED rear light. Front-end styling balances the rear,
with a trimmed fender that’s blacked out behind
satin-finished inverted forks and LED turn signals
integrated into the mirror stems.
The radiator shrouds are strikingly restyled and
colour-matched to the rest of the bodywork, while
the new airbox side covers incorporate air scoop inlets
covered with woven wire mesh. The sturdy black five-spoke
cast aluminium front and rear wheels are a new design
for the VRSC range. A new deep seat holds the rider
firmly in place against the thrust of the Revolution
engine. Offering a natural riding position, the Muscle
features forward foot controls, and handlebars with
internal wiring. Bold polished forged aluminium triple
clamps secure the inverted forks and frame the distinctive
V-Rod teardrop reflector optic headlamp, housed in
a satin black bucket.
The long profile of a 34-degree fork rake is stretched
visually by new large volume dual exhausts in satin
chrome. The V-Rod Muscle is available in Vivid Black,
Brilliant Silver, Dark Blue Denim and Red Hot Sunglo.
VRSCF V-Rod Muscle features:
- Liquid-cooled, 1250cc Revolution engine 123 hp
at 8000 rpm horsepower 85 ft. lbs. / 115 Nm torque
at 6500 rpm
- Pewter powdercoated powertrain with polished covers
- Slipper clutch
- Brembo triple-disc brakes with standard ABS
- Satin chrome dual side exhaust
- Five-spoke cast aluminium 19-inch front / 18-inch
rear wheels
- 240mm wide rear tyre
- Stylized rear shocks with black springs
- Smooth rear fender
- LED stop/tail/turn light
- LED front turn signals integrated in mirror stems
- Forward foot controls
- Internally wired handlebars cast with riser
- Black frame
- Teardrop reflector-optic headlight
- 640mm seat height
- ABS as standard
- Smart Security System
Dimensions
Length (mm) ...................................................................................................2410
Seat Height (mm)2 .............................................................................................640
Ground Clearance (mm) ....................................................................................105
Rake at steering head (°) / Trail (mm) ........................................................
34 / 141
Fork Angle ........................................................................................................
34º
Wheelbase (mm) .............................................................................................1700
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................4.3
Dry Weight (kg) .................................................................................................292
Powertrain
Engine .......................................................
Liquid-cooled, Revolution, 60° V-Twin
Displacement (cu.cm) .....................................................................................1250
Bore x Stroke (mm) ...................................................................................105
x 72
Fuel System ...................................Electronic
Sequential Port Fuel Injection (ESPFI)
Compression Ratio ........................................................................................11.5:1
Exhaust System ........................................
Satin chrome, dual side exhaust system
Tyres:
Front ........................................................................
D208F 120/70ZR-19 60W
Rear ..............................................................................
D419 240/40R-18 79V
Wheels:
Front ..........................................................19”
Black, 5-spoke cast aluminium
Rear ...........................................................18”
Black, 5-spoke cast aluminium
Drivetrain
Primary Drive ..............................................................................Gear,
64/117 ratio
Final Drive .....................................................................................Belt,
28/72 ratio
Clutch ....................................................................9-plate,
wet, A&S (Assist & Slip)
Transmission .............................................................................................5-speed
Gear Ratios:
1st ..........................................................................................................
10.97
2nd ...........................................................................................................
7.37
3rd ............................................................................................................
5.90
4th ............................................................................................................
5.10
5th ............................................................................................................
4.56
Chassis
Brakes, Dia (Front/Rear, mm) ...........................................................300
dual / 300
Caliper Type .........................................................................4-piston
front and rear
Front Fork ......................................................................................
43 mm inverted
Rear Shocks ..............................................................................
Preload adjustable
Suspension Travel:
Front (mm) .................................................................................................102
Rear (mm) ....................................................................................................74
Frame ...................Black steel perimeter upper
frame with hydroformed main rails;
..............................................................and
bolt-on lower frame rails, MIG welded
Swingarm ........................................................Polished,
one-piece cast aluminium
Performance
Engine Torque (EU Standard EC95/1)5 ....................115
Nm / 85 ft lbs @ 6500 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) ..........................................
32 / 32
Electrical
Charging ...................................................................Three-phase,
38-amp system
............................................... (439W
@ 13V, 2000 rpm, 489W max power @ 13V)
Starting........................ 0.8 kW electric with
direct drive starter motor engagement
Lights (as per country regulation):
Headlamp .................... Quartz Halogen, 55-watt
low beam, 60-watt high beam
Tail/Stop Lights.......................................................................Combination
LED
Turn Signal Lights ....................................................
Integrated dual colour LED
Instruments ................. Electronic speedometer
with odometer; Time-of-day clock;
...................................................................
Dual resettable tripmeter; Tachometer;
.................................................Hazard
warning integrated into turn signal controls
Indicator Lamps ......................... High beam,
neutral, low oil pressure, turn signals,
......................................................................engine
diagnostics, security system,
..................................................................
coolant temperature, low fuel warnings
Colour Options
Vivid Black; Brilliant Silver; Dark Blue Denim;
Red Hot Sunglo
Model Features
Pewter powder-coated engine with polished treatment
covers; Front fender with blackout; Chopped rear fender;
240mm wide rear tyre; Forward pulled back footpegs;
Passenger footpegs; Internally wired handlebar with
“fat” integrated cast riser; Two-piece,
two-up textured vinyl seat; Satin chrome headlamp
mount; Satin black headlamp bucket; Wide angular air
box cover and new air box side covers; LED front turn
signals incorporated into mirror stems; 4-piston front
and rear Brembo brakes with dual front rotor; 43mm
inverted forks; Stylised rear shocks; Slipper clutch;
ABS as standard.
Warranty
Warranty .................................................................24
months (unlimited mileage)
Service Interval9 .........................................................First
1,000 miles (1,600 km),
.................................................................
every 5,000 miles (8,000 km) thereafter
|
