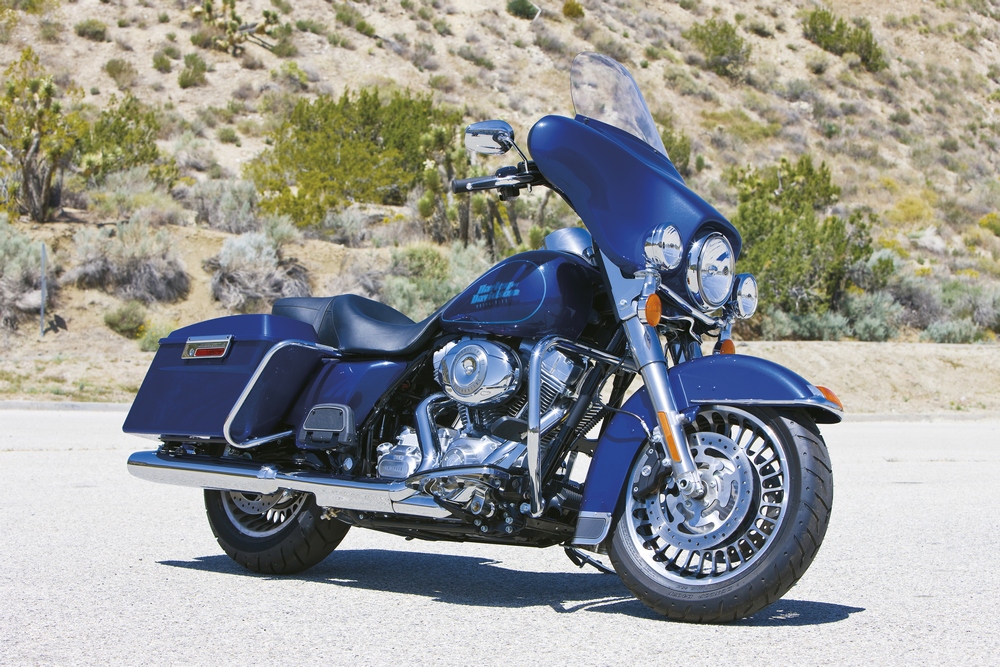

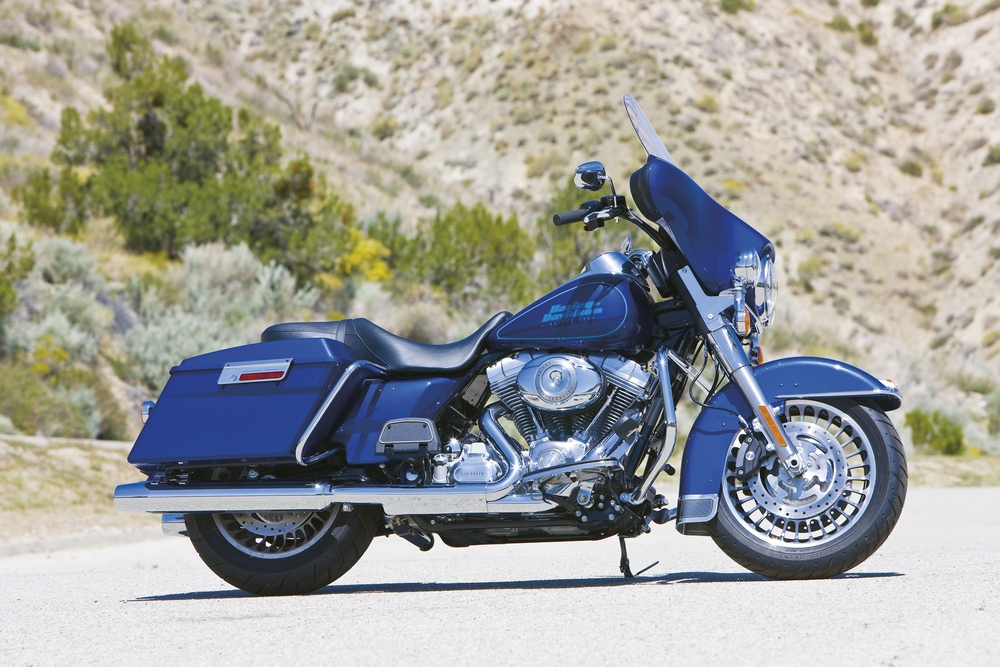

2009 Harley Davidson FLHT Electra
Glide Standard

FLHT Electra Glide
Standard Equipped with key touring features, the
Electra Glide Standard is a no-nonsense, long-haul
motorcycle you can grow with or build on. Standard
equipment includes locking hard saddlebags, a fork-mounted
‘batwing’ touring fairing with instrumentation,
auxiliary lamps, plus all the benefits of the new
Touring chassis, wheels and tyres.
FLHT Electra Glide Standard features:
- Isolation-mounted 1584cc Twin Cam 96 engine with
ESPFI
- 6-speed
- Cruise Drive transmission
- Active intake and exhaust system
- Silver powdercoated engine with polished treatment
covers
- Brembo triple-disc brake system with standard
ABS
- 22.7 litre fuel tank
- Electronic Throttle Control
- New 2-1-2 exhaust system
- New engine isolation system
- New Isolated Drive System
- New frame and swingarm
- New black cast aluminium wheels, 17-inch front/16-inch
rear
- Triple Circuit Damping (TCD) front forks
- Batwing, fork-mounted fairing
- Fairing-mounted speedometer and tachometer
- Clear-lens reflector-optics auxiliary lamps
- Locking GTX alloy saddlebags
- One-piece, two-up Electra Glide comfort-stitch
seat
- Smart Security System
Dimensions
Length (mm) ...................................................................................................2640
Seat Height (mm)2 .............................................................................................715
Ground Clearance (mm) ....................................................................................145
Rake at steering head (°) / Trail (mm) ........................................................
26 / 173
Fork Angle .....................................................................................................29.3°
Wheelbase (mm) .............................................................................................1625
Fuel Capacity (litres) ........................................................................................22.7
Oil Capacity w/fi lter (litres) .................................................................................3.8
Dry Weight (kg) .................................................................................................355
Powertrain
Engine ...........................................................................Air-cooled,
Twin Cam 96
Displacement (cu.cm) .....................................................................................1584
Bore x Stroke (mm) .............................................................................95.3
x 111.1
Fuel System ...................................Electronic
Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.2:1
Exhaust System .........................New Two-into-One-into-Two
chrome exhaust with
............................................................................dual
mufflers and taper end caps
Tyres:
Front ......................................................................
D407F BW 130/80B17 65H
Rear .........................................................................D407
BW 180/65B16 81H
Wheels:
Front ........................................................17”
Black, 28-spoke cast aluminium
Rear .........................................................16”
Black, 28-spoke cast aluminium
Drivetrain
Primary Drive ..............................................................................Chain,
34/46 ratio
Final Drive .....................................................................................Belt,
32/68 ratio
Clutch ..................................................................................................
9-plate, wet
Transmission .......................................................................6-speed
Cruise Drive™
Gear Ratios:
1st ............................................................................................................
9.59
2nd ...........................................................................................................
6.65
3rd ............................................................................................................
4.94
4th ............................................................................................................
4.00
5th ............................................................................................................
3.41
6th ............................................................................................................
2.88
Chassis
Brakes, Dia (Front/Rear,mm) ............................................................300
dual / 300
Caliper Type .................................................................4
piston fixed front and rear
Front Fork ..........................................
41.3mm telescopic, cartridge-style damping
Rear Shocks .....................................................................................
Air-adjustable
Suspension Travel:
Front (mm) .................................................................................................117
Rear (mm) ....................................................................................................76
Frame ............................................New
mild steel, single spar rigid backbone with
................................................................................cast
& forged node-tube joints
Swingarm .... New mild steel, two-piece deep drawn
shell with forged pivot section
Performance
Engine Torque (EU Standard EC95/1)5 .................131
Nm / 96.6 ft lbs @ 3500 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) ..........................................
31 / 33
Electrical
Charging ...................................................................Three-phase,
50-amp system
......................................... (585W @
13V, 2000 rpm and 650W max power @ 13V)
Starting..................... 1.2 kW electric with
solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp .................... Quartz Halogen, 55-watt
low beam, 60-watt high beam
Auxiliary Lamps ..................Two @ 35W each (except
where prohibited by law)
Tail/Stop Lights....................................................................................5W/21W
Turn Signal Lights ...............................................................
21W self-canceling
Instruments ....................Fairing-mounted, electronic
speedometer with odometer;
......................Time-of-day clock; Voltmeter;
Tachometer; Dual resettable tripmeter
Indicator Lamps ...............High beam, neutral,
low oil pressure, engine diagnostics,
............................... turn signals, security
system, 6-speed, low fuel warning, ABS
Colour Options
Vivid Black; Flame Blue Pearl; Black Denim
Model Features
Silver powder-coated engine with polished treatment
covers; “Batwing”, forkmounted fairing;
Chrome, low-profi le fuel tank console; Clear-lens
refl ector-optics headlamp; Full-length height adjustable
rider footboards; Full-length height adjustable passenger
footboards; New redesigned rider footboard supports
for
increased lean angle; Stainless steel, classic touring
handlebars; One-piece, two-up Electra Glide classic
comfort stitch seat; Clear, Lexan windshield; Injection-moulded
GTX saddlebags with locks; ABS as standard; Retuned
front and rear suspension for enhanced handling
Warranty
Warranty .................................................................24
months (unlimited mileage)
Service Interval .........................................................First
1,000 miles (1,600 km),
.................................................................
every 5,000 miles (8,000 km) thereafter
|
