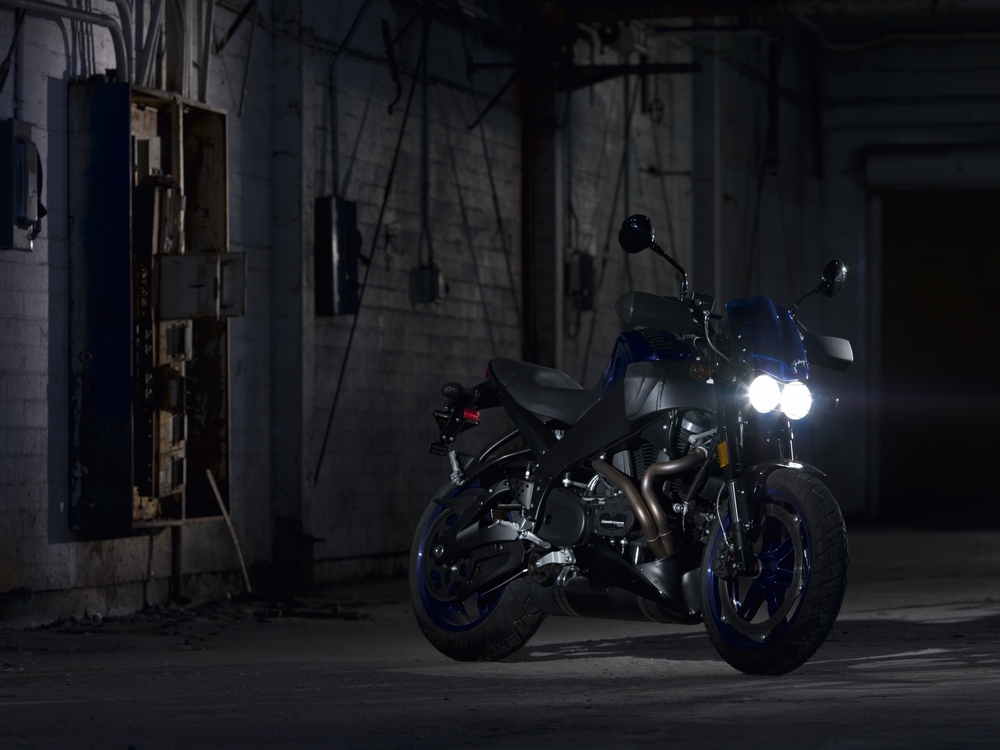

2009 Buell Lightning CityX XB9SX

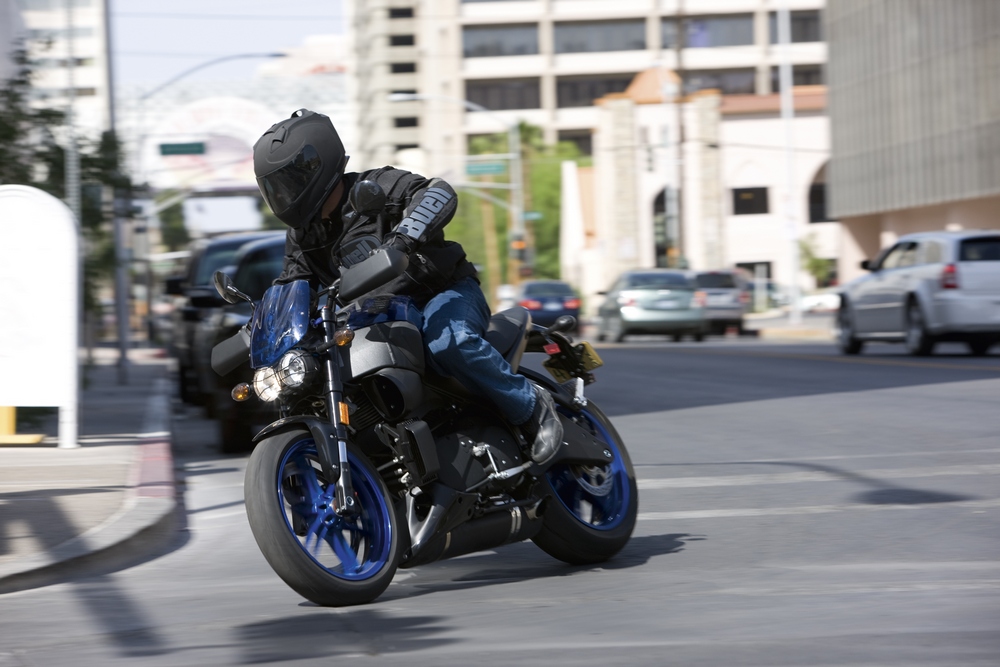

A Street bike for the middle-weight class, the CityX
was designed especially for the urban environment.
The torque and broad powerband of the Buell Thunderstorm
984 V-Twin engine lets the CityX pull briskly away
from traffic and accelerate past pesky cabs, while
an upright rider position, wide Supermoto-style handlebars
and intuitive handling help the CityX scat around
potholes and dodge through back alleys. A new saddle
shape for 2009 drops the seat height by 33mm to 764mm.
Hand deflectors, dual headlight grilles, and frame
pucks fend off minor cosmetic damage. Pirelli Scorpion
Sync tyres grip all road surfaces and add aggressive
style. Available with Cherry Bomb Translucent or Hero
Blue Translucent bodywork.
Buell Lightning CityX XB9SX Highlights
- Buell Thunderstorm 984 air/oil/fan-cooled V-Twin
engine
- 80 peak hp / 82 PS / 60 kW @ 7500 rpm (per EU
Standard EC95/1)
58 ft. lbs. / 79 Nm peak torque @ 4500 rpm (per
EU Standard EC95/1)
- DDFI II Electronic Fuel Injection ECM
- Eight-row oil cooler with Jiffy-tite fittings
- New stronger Veyance Hibrex drive belt with Flexten
Plus technology
- Fully adjustable 43mm Showa inverted fork
- Fully adjustable Showa rear shock absorber
- Buell ZTL front brake
- Dry Weight: 177kg
- Wheelbase: 1320mm
- New Seat height 764mm
- Pirelli Scorpion Sync T tyres
- New black engine, frame, swingarm, powertrain
and forks
- Translucent bodywork
- Supermoto-style crossbar handlebars with deflectors
- Headlight grille
- Cosmetic frame pucks
- Pre-Wired for Accessory Heated Grips
2009 Buell Lightning CityX XB9SX Specifications
Brakes:
Front .............................ZTL™ brake,
6-piston, fi xed caliper, 375 mm single sided,
...............................................................
inside-out, stainless steel, fl oating disc
Rear ...................Single piston, fl oating caliper;
240 mm stainless steel, fi xed disc
Front Fork5 .....................43 mm Showa®
inverted forks with adjustable compression
.......................................................
damping, rebound damping, and spring preload
Rear Shock5 ........ Showa® coil-over monoshock
with remote under-seat reservoir and
................... adjustable compression damping,
rebound damping, and spring preload
Suspension Travel:
Front (mm) ..................................................................................................120
Rear (mm) ...................................................................................................129
Frame ........................................ Black
aluminium frame with Uniplanar™ powertrain
....................................................................vibration
isolation system, fuel in frame
Performance
Engine Torque (EU standard EC95/1) .......................
79 NM / 58 ft.lbs. @ 4500 RPM
Horsepower (EU standard EC95/1) .....................
80hp / 82 PS / 60kW @ 7500 RPM
Electrics
Charging ..................................30-amp,
permanent magnet, single-phase alternator
...................................... with solid-state
regulator (405W @3000 rpm, 405W peak)
Starting ........................1.2 kW electric with
solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamps .........Twin Quartz Halogen [H7] 55-watt
low beam, 55-watt high beam
Tail/Stop Lights ...................................................................................5W
/ 21W
Turn Signal Lights ............................................................
10W manual canceling
License Plate Light .......................................................................................5W
Styling/Convenience
Instruments ............ Electronic speedometer,
tachometer, odometer; dual tripmeter;
...................... high beam, neutral, oil, low
fuel (plus, odometer shows miles traveled
.........................on reserve), turn signal
and engine diagnostic indicator lamps; clock
Colours
Cherry Bomb Translucent; Hero Blue Translucent
Warranty
2 Year, unlimited mileage warranty (Europe).
1 Year Buell Assistance roadside assistance (Europe).
Dimensions
Length (mm)2 .................................................................................................1950
Seat Height (Laden, mm)3 .................................................................................764
Ground Clearance (mm)2 ..................................................................................110
Rake at Steering Head (º) / Trail (mm)3 ........................................................21/
83.8
Fork Angle (º)3 ....................................................................................................21
Lean Angles:
Soft Contact, Degrees Right ...........................................................................42
Soft Contact, Degrees Left .............................................................................42
Hard Contact, Degrees Right ..........................................................................50
Hard Contact, Degrees Left ............................................................................48
Wheelbase (mm)2 ...........................................................................................1320
Fuel Capacity (litres) ........................................................................................
14.5
Oil Capacity (litres) ............................................................................................
2.4
Dry Weight (kg) ................................................................................................177
Powertrain
Engine ..................................Thunderstorm™
air/oil/fan-cooled, 4-stroke, 45° V-Twin
Displacement (cu.cm) .......................................................................................984
Bore x Stroke (mm) ...............................................................................88.9
x 79.4
Fuel System .................................................
45 mm down draft DDFI II fuel injection
Compression Ratio .......................................................................................
10.0:1
Exhaust .............Tuned, tri-pass resonance chamber
with mass-centralised mounting
Intake ...................................................................................
Zero-resistance airbox
Wheels/Tyres
Tyres
Front ............................................
Pirelli® Scorpian® Sync® T 120/70 ZR-17
58W
Rear ........................................... Pirelli®
Scorpian® Sync® T 180/55 ZR-17 73W
Wheels:
Colour ............................................Cherry
Bomb Translucent; Hero Blue Translucent
Front ....................................................................6-spoke,
ZTL™ cast aluminium
.........................................................................................................17”
x 3.5”
Rear .............................................................................6-spoke,
cast aluminium
.........................................................................................................17”
x 5.5”
Drivetrain
Primary Drive ...........................................................................
Chain, 1.676:1 ratio
Final Drive6 ................................ New
constant path, 14 mm pitch aramid-reinforced
............................ Veyance Hibrex® belt
with Flexten® Plus technology, 2.407:1 ratio
Clutch ......................................................................Wet,
multi-plate, compensated
Transmission ..........................................................................
5-speed, helical gear
Gear Ratios:
1st ............................................................................................................
2.65
2nd ...........................................................................................................
1.89
3rd ............................................................................................................
1.41
4th ............................................................................................................
1.17
5th ............................................................................................................
1.00
