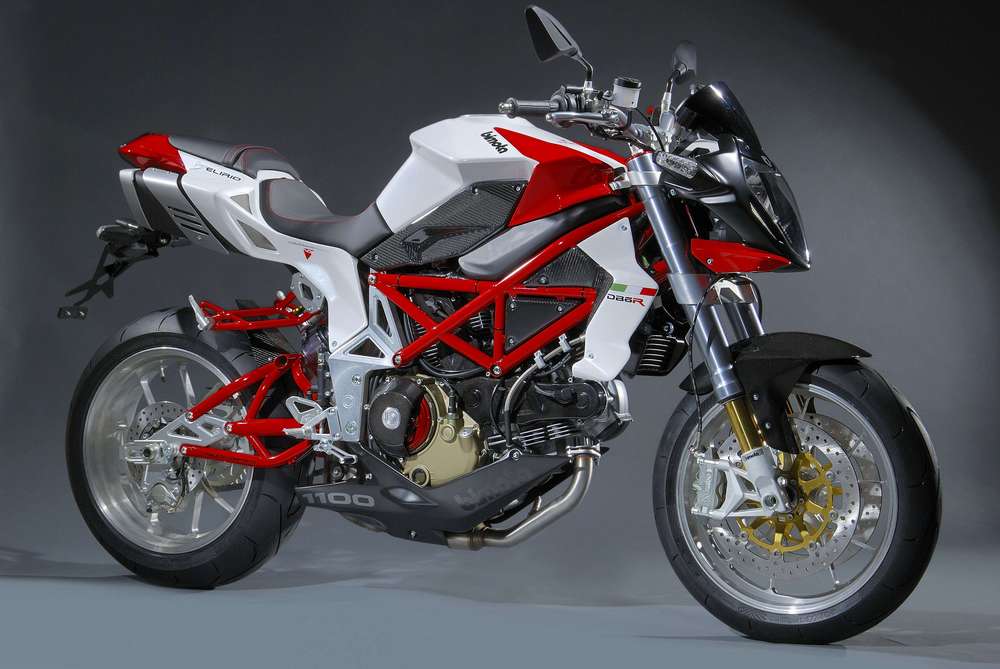

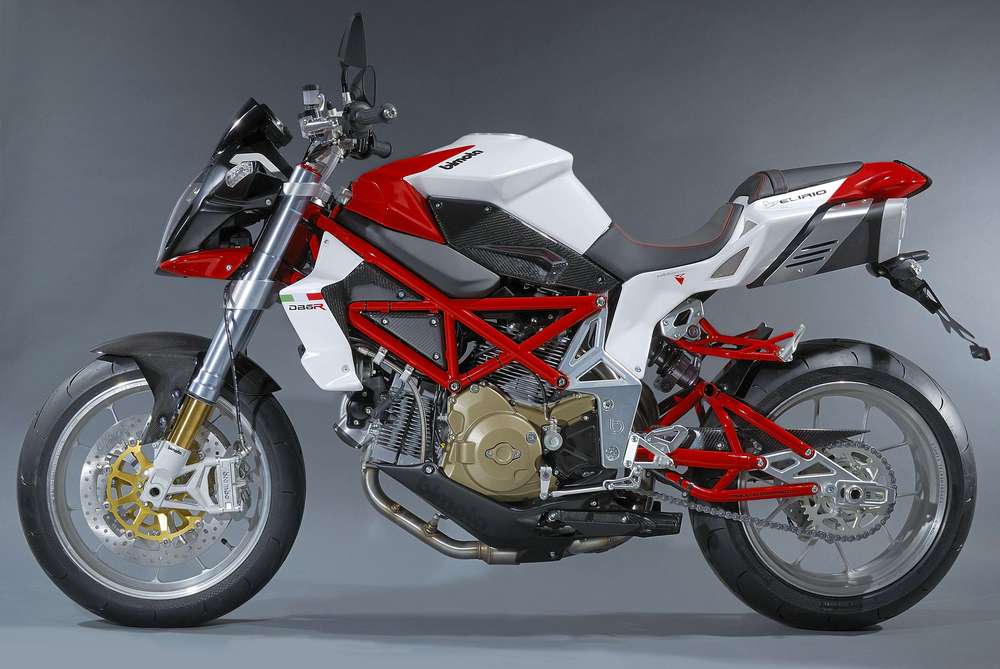

2009 Bimota DB6 R

Technical Data

Engine

• Ducati 1100
• Engine Configuration: Twin cylinder 90°
• Displacement: 1078 cc
• Engine Cooling: air/oil cooling
• Compression Ratio: 10±0.5:1
• Valves per cylinder: 2
• Bore x Stroke: 98.0 mm x 71.5 mm
• Engine Redline: 8500 rpm
• Valve Angle (Included): 28° Inlet / 28° Exhaust
• Valvetrain Type: Desmodromic valve actuation
• Intake Valve Diameter: Ø 40 mm
• Exhaust Valve Diameter: Ø 35 mm
• Intake Valve Timing: Open BTDC 15°
• Closed ABDC 65°
• Duration 260°
• Exhaust Valve Timing: Open BBDC 62°
• Closed ATDC 19°
• Duration 261°
• Fuel Pump: Bitron 3.5 bar, electronic
• Throttle Body Size: 45 mm
• Air Filter: Paper
• Exhaust System: 2 in 1 in 2, inox
• Emission: EURO 3
• Injection: Walbro
• Injectors: Magneti Marelli
• Lubrication System: Wet Sump
• Transmission Type: Dry clutch Multi-disc with hydraulic actuation system
• Primary Drive ratio: 33/61
• Final Drive ratio: 15/39
• Transmission ratio: VI = 28/24
• V = 24/23
• IV = 22/24
• III = 20/27
• II = 17/30
• I = 15/37

Chassis

• Wheelbase: 1430 mm
• Steering angle: 24°
• Swingarm length: 515±20 mm
• Seat height: 820 mm
• Footpeg height: 385 mm
• Handlebar height: 1040 mm
• Steering stem to seat center: 708 mm
• Overall length: 2045 mm
• Overall width: 830 mm
• Overall height: 1110 mm
• Ground clearance: 175 mm
• Front suspension: Marzocchi UD fork TiN fully adjustable
• diameter: 50 mm
• stroke: 120 mm
• Rear suspension: Extreme Tech Monoshock fully adjustable, compression low/high speed
• wheel stroke: 120 mm
• Front brake: Double Ø320 mm Brembo floating disc, 4-pistons,4-pads with radial Brembo callipers, Brembo radial pump
• Rear brake: Ø220 mm Brembo disc, 2-pistons, 2-pads with Brembo calliper
• Wheels: FRONT. 3.5x17.0 Forged Al Alloy
• REAR. 5.5x17.0 Forged Al Alloy
• Tyres: FRONT. 120/70 ZR17, Continental Sport Attack
• REAR. 180/70 ZR17, Continental Sport Attack
• Fuel tank: 16 l (5 l reserve)
• Total weight dry: 170 kg
