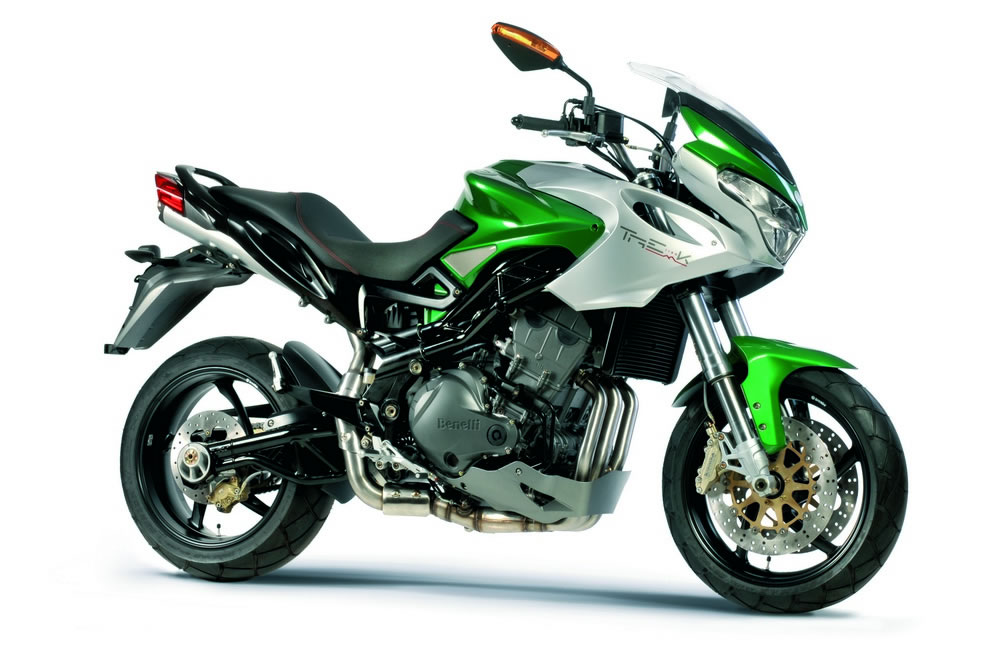

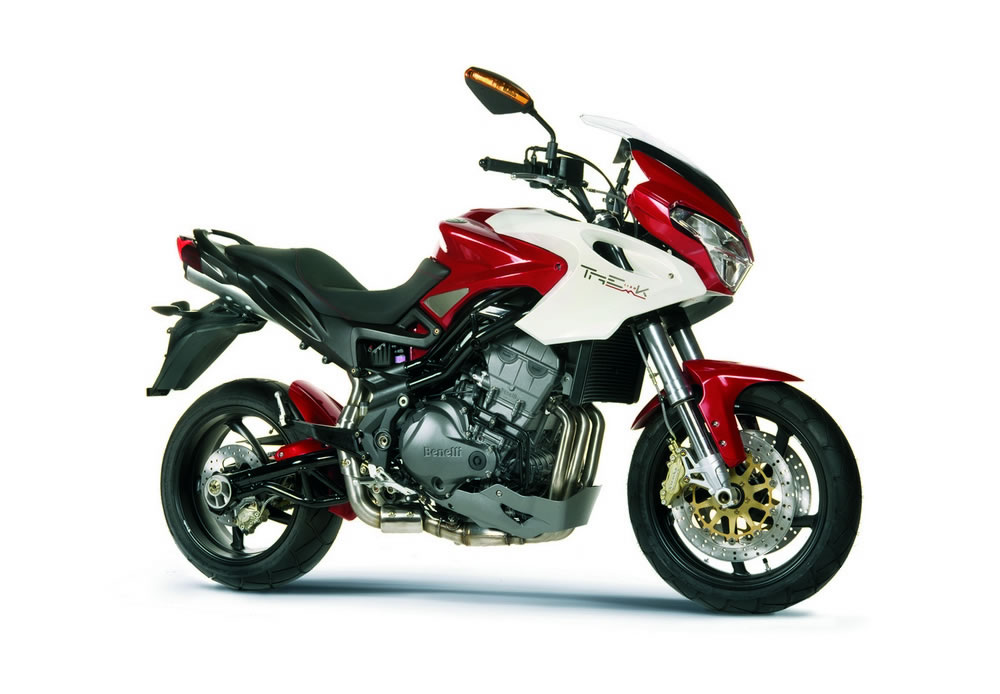

2009 Benelli Tre 1130K

Technical Specification
- ENGINE - 3 cylinders, 4 stroke, liquid cooled,
12 Valves, DOHC (double overhaed camshaft)
- CYLINDER CAPACITY - 1131 cc
- BORE X STROKE - 88 x 62
- COMPRESSION RATIO - 11,9:1
- MAXIMUM POWER - 92 Kw @ 9.000
- MAXIMUM NET TORQUE / RPM - 112 Nm @ 5.000
- FIRING ORDER - 1 > 3 > 2
- INTAKE VALVE DIAMETER - 33 mm
- EXHAUST VALVE DIAMETER - 29 mm
- INTAKE ENGINE TIMING - 12°bTDC 44° aBDC
- EXHAUST ENGINE TIMING - 36°aBDC 20° aTDC
- MAXIMUM VALVE LIFT - Int.7,5 exh.7,5
- THROTTLE BODY DIAMETER - 53 mm
- LUBRICATION SYSTEM - Wet sump
- FUEL SYSTEM - Injection EURO 3
- CLUTCH - Wet clucth 11 discs
- IGNITION - Digital - inductive type via electronic
engine management
- STARTING - Electric
- GEARBOX - 6 - speed
- TRANSMISSION - 525 chain type
- PRIMARY RATIO - 44 / 79
- FINAL RATIO - 16 / 34
- GEAR RATIOS (SECONDARY) - 1° 14 / 39, 2°
18 / 35, 3° 21 / 32, 4° 23 / 30, 5°
24 / 28, 6° 25 / 26
- FRAME - ASD steel tube trellis, with boxed section
- FRONT SUSPENSION - "upside down" fork
Ø 50 mm
- FRONT TRAVEL - 150 mm
- REAR SUSPENSION - ASD steel tube trellis swingarm
- REAR TRAVEL - 150 mm
- RAKE - 25°
- TRAIL - 102 mm
- OFFSET - 33 mm
- FRONT BRAKE DIAMETER - Ø 320 mm
- REAR BRAKE DIAMETER - Ø 240 mm
- FRONT TYRE - 120-70/17
- REAR TYRE - 180-55/17
- LENGTH - 2183 mm
- WIDTH - 850 mm
- HEIGHT - 1320 mm
- SEAT HEIGHT - 810 mm
- WHEELBASE - 1515 mm
- DRY WEIGHT - 205 kg
- FUEL TANK CAPACITY - 22 l
- FUEL RESERVE - 4 l
|
|
