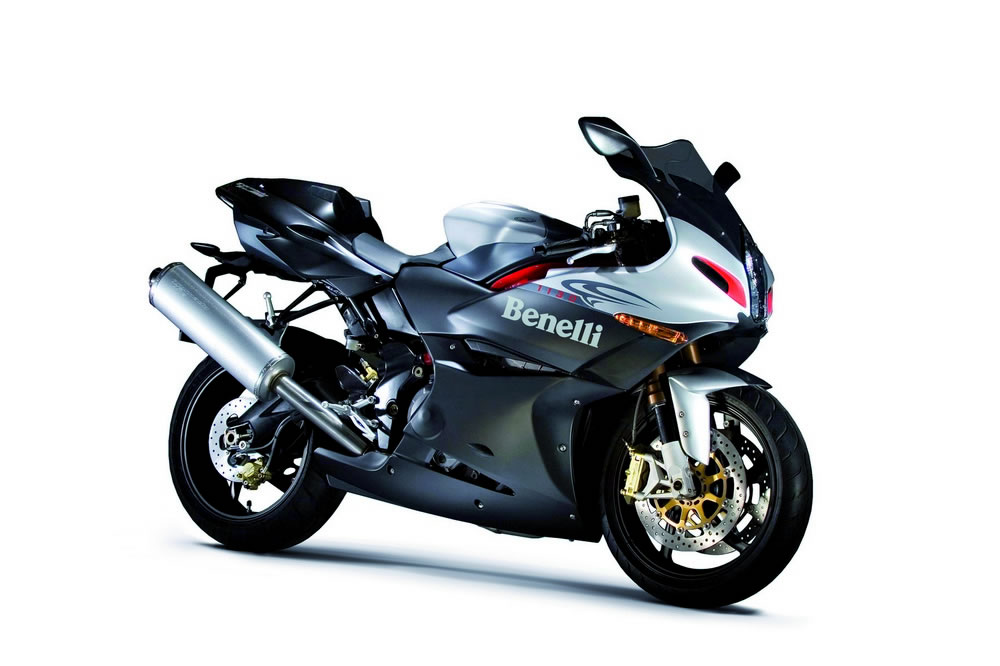

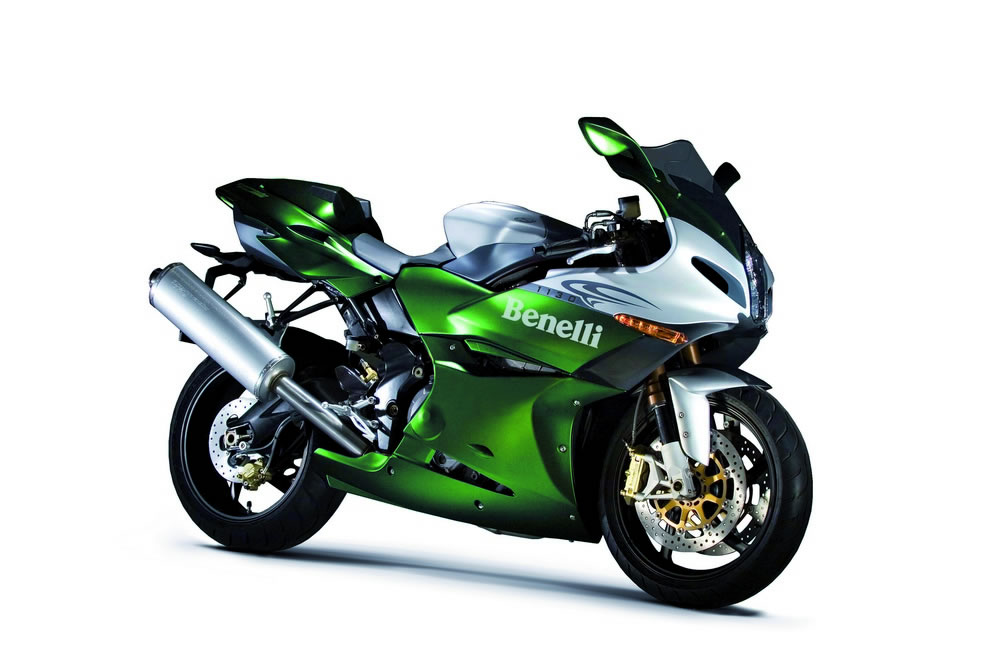

2009 Benelli Tornado Tre 1130

Technical Specifications
- ENGINE - 3 cylinders, 4 stroke, liquid cooled,
12 Valves, DOHC (double overhaed camshaft)
- CYLINDER CAPACITY - 1131 cc
- BORE X STROKE - 88 x 62
- COMPRESSION RATIO - 13,0:1
- MAXIMUM POWER - 120 Kw @ 10.500
- MAXIMUM NET TORQUE / RPM - 124 Nm @ 8.000
- FIRING ORDER - 1 > 3 > 2
- INTAKE VALVE DIAMETER - 33 mm
- EXHAUST VALVE DIAMETER - 29 mm
- INTAKE ENGINE TIMING - 21° bTDC 57° aBDC
- EXHAUST ENGINE TIMING - 36° bTDC, 26°aBDC
- MAXIMUM VALVE LIFT - Int.9,8 exh.8,75
- THROTTLE BODY, DIAMETER - Ø 53 mm
- LUBRICATION SYSTEM - Wet sump
- FUEL SYSTEM - Injection EURO 3
- CLUTCH - Dry clutch anti-hopping system
- IGNITION - Digital - inductive type via electronic
engine management
- STARTING - Electric
- GEARBOX - 6 - speed
- TRANSMISSION - 525 chain type
- PRIMARY RATIO - 44 / 79
- FINAL RATIO - 16 / 36
- GEAR RATIOS (SECONDARY) - 1° 14 / 39, 2°
18 / 35, 3° 21 / 32, 4° 23 / 30, 5°
24 / 28, 6° 25 / 27
- FRAME - ASD steel tube trellis, with boxed section
- FRONT SUSPENSION - "Upside down" fork
totally adjustable Ø 50 mm
- FRONT TRAVEL - 120 mm
- REAR SUSPENSION - Box-type structure swingarm
- REAR TRAVEL - 120 mm
- RAKE - 23,5°
- TRAIL - 95 mm
- OFFSET - 35 mm
- FRONT BRAKE DIAMETER - Ø 320 mm with radial
caliper
- REAR BRAKE DIAMETER - Ø 240 mm
- FRONT TYRE - 120-70/17; 120-65/17
- REAR TYRE - 180-55/17; 190-50/17; 190-55/17
- LENGTH - 2039 mm
- WIDTH - 717 mm
- HEIGHT - 1153 mm
- SEAT HEIGHT - 810 mm
- WHEELBASE - 1419 mm
- DRY WEIGHT - 199 kg
- FUEL TANK CAPACITY - 19 l
- FUEL RESERVE - 4 l
|
|
