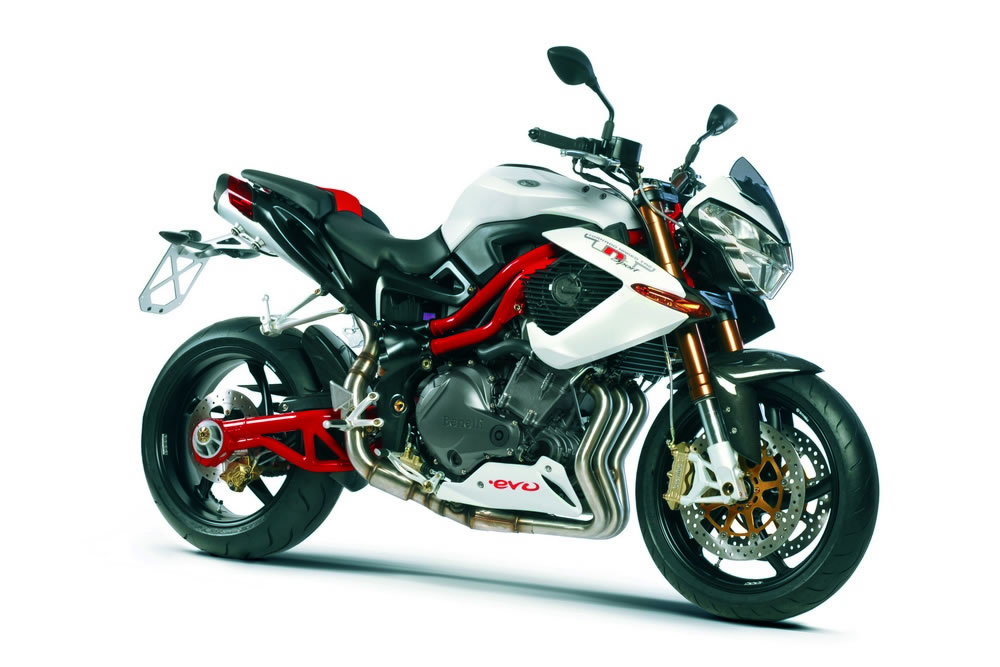

2009 Benelli Tornado Naked TRE Sport
evo
Technical Specifications
- ENGINE - 3 cylinders, 4 stroke, liquid cooled,
12 Valves, DOHC (double overhaed camshaft)
- CYLINDER CAPACITY - 1131 cc
- BORE X STROKE - 88 x 62
- COMPRESSION RATIO - 11,9:1
- MAXIMUM POWER - 95 Kw @ 9.250
- MAXIMUM NET TORQUE / RPM - 117 Nm @ 6.750
- FIRING ORDER - 1 > 3 > 2
- INTAKE VALVE DIAMETER - 33 mm
- EXHAUST VALVE DIAMETER - 29 mm
- INTAKE ENGINE TIMING - 21°bTDC 42° aBDC
- EXHAUST ENGINE TIMING - 42°aBDC 21° aBDC
- MAXIMUM VALVE LIFT - Int.8,75 exh.8,75
- THROTTLE BODY DIAMETER - 53 mm
- LUBRICATION SYSTEM - Wet sump
- FUEL SYSTEM - Injection EURO 3
- CLUTCH - Wet clucth 11 discs
- IGNITION - Digital - inductive type via electronic
engine management
- STARTING - Electric
- GEARBOX - 6 - speed
- TRANSMISSION - 525 chain type
- PRIMARY RATIO - 44 / 79
- FINAL RATIO - 16 / 36
- GEAR RATIOS (SECONDARY) - 1° 14 / 39, 2°
18 / 35, 3° 21 / 32, 4° 23 / 30, 5°
24 / 28, 6° 25 / 27
- FRAME - ASD steel tube trellis, with boxed section
- FRONT SUSPENSION - "Upside down" fork
totally adjustable Ø 50 mm
- FRONT TRAVEL - 120 mm
- REAR SUSPENSION - ASD steel tube trellis swingarm
with totally adjustable shock absorber
- REAR TRAVEL - 120 mm
- BRAKE - 24°
- TRAIL - 95 mm
- OFFSET - 33 mm
- FRONT BRAKE DIAMETER - Ø 320 mm with radial
caliper
- REAR BRAKE DIAMETER - Ø 240 mm
- FRONT TYRE - 120-70/17; 120-65/17
- REAR TYRE - 180-55/17;190-55/17;200-50/17
- LENGTH - 2100 mm
- WIDTH - 790 mm
- HEIGHT - 1050 mm
- SEAT HEIGHT - 780 mm
- WHEELBASE - 1443 mm
- DRY WEIGHT - 199 kg
- FUEL TANK CAPACITY - 17 l
- FUEL RESERVE - 4 l
|
|
