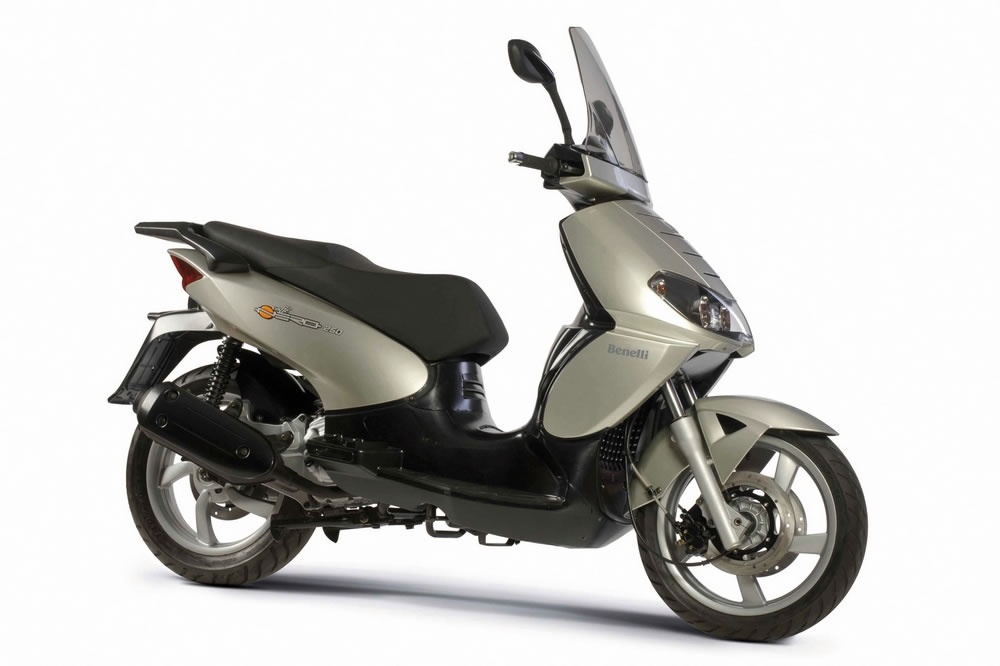

2009 Benelli Caffenero

Technical Specification

• ENGINE - Single cylinder, 4 stroke, SOHC
• CYLINDER CAPACITY - 248 c.c
• BORE X STROKE - 69 x 66, 8m
• COMPRESSION RATIO - 10,5 : 1
• MAXIMUM POWER - 15 Kw @ 7450 rpm
• MAXIMUM NET TORQUE / RPM - 22 Nm @ 5500 rpm
• LUBRICATION - Wet sump
• COOLING SYSTEM - Liquid cooled
• FUEL SYSTEM - Electronic fuel injection fully integrated throttle body
• CLUTCH - Automatic
• IGNITION - Electronic
• STARTING - Electric starter
• GEARBOX - Automatic stepless gear change
• TRANSMISSION - V-Belt
• TYPE-APPROVAL - EURO 3
• FRAME - High tensil steel triangular trellis
• FRONT SUSPENSION - Fork Ø 35 mm
• FRONT TRAVEL - 104 mm
• REAR SUSPENSION - Hydraulic shock absorber - 5 positions adjustable
• REAR TRAVEL - 90 mm
• RAKE - 27 °
• FRONT BRAKE DIAMETER - Disk 247 mm dual piston caliper
• REAR BRAKE DIAMETER - Disk 247 mm dual piston caliper
• FRONT TYRE - 110/70 - 16 tubeless
• REAR TYRE - 140/70 - 16 tubeless
• LENGTH - 2217 mm
• WIDTH - 770 mm
• HEIGHT - 1225 mm
• SEAT HEIGHT - 830 mm
• WHEELBASE - 1455 mm
• DRY WEIGHT - 150 kg
• FUEL TANK CAPACITY - 11,5 lt
• FUEL RESERVE - 2,5 lt
