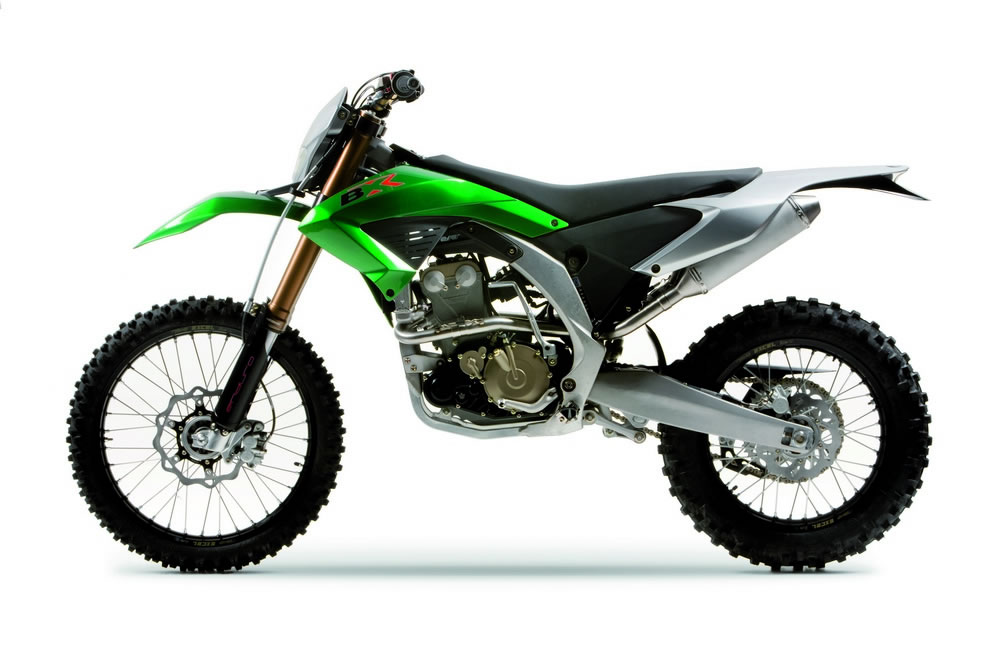

2009 Benelli BX Enduro 505
Technical Specification
-
ENGINE - Single cylinder 4 stoke
DOHC 4 titanium valves
-
CYLINDER CAPACITY - 505 cc
-
BORE X STROKE - 104 X 59,5
-
COMPRESSION RATIO - 11,5:1
-
MAXIMUM POWER - 44,5 Kw @ 8500
-
MAXIMUM NET TORQUE / RPM - 50
@ 5750
-
INTAKE VALVE DIAMETER - Ø
37 mm
-
EXHAUST VALVE DIAMETER - Ø
32 mm
-
LUBRICATION SYSTEM - Wet sump
and reeds
-
FUEL SYSTEM - Electronic injection
- throttle body 42 mm EURO 3
-
CLUTCH - Wet clutch 7 steel discs
-
IGNITION - Digital
-
STARTING - Kick starter and electric
-
GEARBOX - 6 speed extractable
-
TRANSMISSION - Chain 520
-
ALTERNATOR - 250 W
-
FRAME - Aluminium alloy Perimeter
with casting, moulded, extruded parts and structural
carbon roods elements
-
FRONT SUSPENSION - Ø 50
mm fully adjustable
-
FRONT TRAVEL - 310 mm
-
REAR SUSPENSION - Sachs shock
absorber fully adjustable
-
REAR TRAVEL - 310 mm
-
RAKE - 26,5°
-
TRAIL - 110 mm
-
OFFSET - 24 mm
-
FRONT BRAKE DIAMETER - Wave,
Ø 260 mm
-
REAR BRAKE DIAMETER - Wave, Ø
220 mm
-
FRONT RIM - 1,60"
-
FRONT TYRE - 80-100/21
-
REAR RIM - 2,15"
-
REAR TYRE - 140-80/18
-
STEERING ANGLE - 45°/45°
-
LENGTH - 2160 mm
-
WIDTH - 810 mm
-
HEIGHT - 1240 mm
-
SEAT HEIGHT - 960 mm
-
WHEELBASE - 1450 mm
-
FUEL TANK CAPACITY - 9 l
-
WEIGHT - 110 kg
|
|
