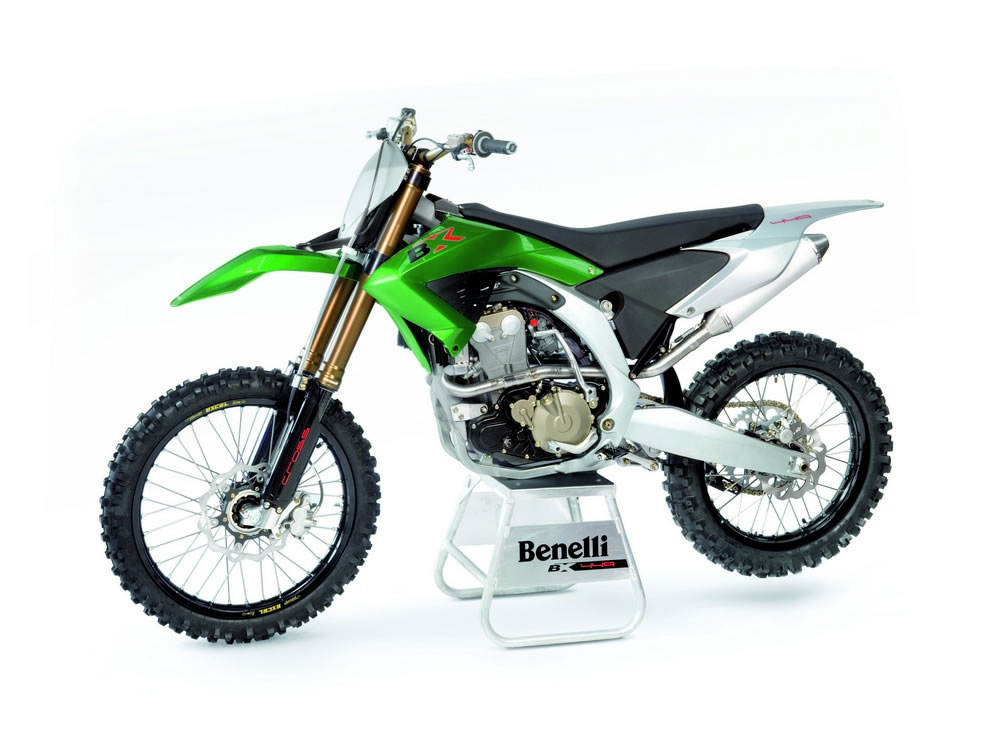

2009 Benelli BX Cross 449
Technical Specification
- ENGINE TYPE - Single cylinder 4 stroke DOHC 4
titanium valve
- CYLINDER CAPACITY - 449 cc
- BORE X STROKE - 98 x 59,5
- COMPRESSION RATIO - 12,5:1
- MAXIMUM POWER - 41,3 Kw @ 9500 g/min
- MAXIMUM NET TORQUE / RPM - 45 Nm @ 7000 g/min
- INTAKE VALVE DIAMETER - Ø 37 mm
- EXHAUST VALVE DIAMETER - Ø 32 mm
- LUBRICATION SYSTEM - Wet sump and reeds
- FUEL SYSTEM - Carburator, KEIHIN FCR MX 41
- CLUTCH - Wet cluch 7 steel disks
- IGNITION - Kokusan CDI digitale
- STARTING - Kick starter
- GEARBOX - 5 speed extractable
- TRANSMISSION - Chain 520
- ALTERNATOR - 60 w
- FRAME - Aluminium alloy Perimeter with casting,
moulded, extruded parts and structural carbon roods
elements
- FRONT SUSPENSION - Ø 50 mm fully adjustable
- FRONT TRAVEL - 310 mm
- REAR SUSPENSION - Sachs shock absorber fully
adjustable
- REAR TRAVEL - 310 mm
- RAKE - 26,5°
- TRAIL - 110 mm
- OFFSET - 24 mm
- FRONT BRAKE - Wave, Ø 260 mm
- REAR BRAKE - Wave, Ø 220 mm
- FRONT RIM - 1,60’
- FRONT TYRE - 80-100/21
- REAR RIM - 2,15’
- REAR TYRE - 110-90/19
- STEERING ANGLE - 45°/45°
- LENGTH - 2160 mm
- WIDTH - 810 mm
- HEIGHT - 1240 mm
- SEAT HEIGHT - 960 mm
- WHEELBASE - 1450 mm
- FUEL TANK CAPACITY - 9 l
- WEIGHT - 108 kg
|
|
