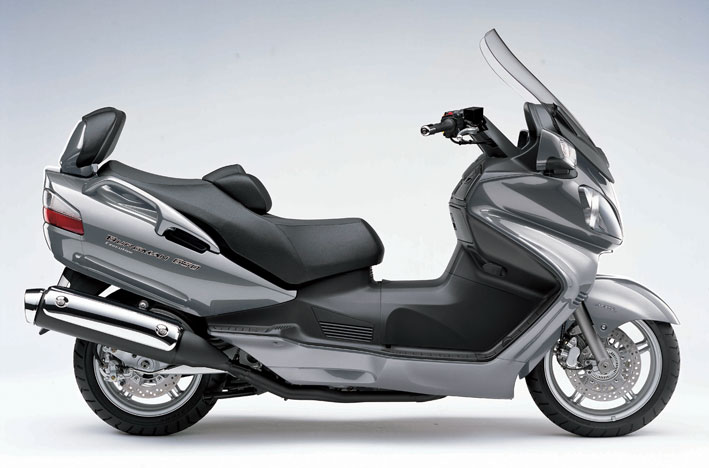

2006 Suzuki Burgman 650A Executive
Dimensionjs;
Overall Length - 2,260 mm
Overall Width - 810 mm
Overall Height - 1,435 mm
Wheelbase - 1,595 mm
Ground Clearance - 130 mm
Seat Height - 750 mm
Dry Mass - 244 kg
Fuel Capacity - 15 litres
Engine;
Engine Type - 2-cylinder liquid-cooled DOHC 4-stroke
Bore x Stroke - 75.5 x 71.3mm
Max Power - 55 PS (40.5 Kw) @ 7,000 rpm
Max Torque - 62 Nm @ 5,000 rpm
Piston Displacement - 638 cc
Compression Ratio - 11.2:1
Carburettor - Fuel Injection 32mm
Lubrication - Wet sump
Electrical System;
Ignition Type - Electric Ignition (transistorized)
Starter System - Electronic
Transmission;
Clutch - Automatic
Transmission - Auto + 5-speed man (SECVT)
Drive System - Gear drive
Chassis;
Front Suspension - Telescopic
Rear Suspension - Swingarm, adjustable spring preload
Rake/Trail - 26 degrees/106 mm
Front Brake - 2-piston caliper, 260 mm dual disc
Rear Brake - 2-piston caliper, 250 mm disc
Front Tyre - 120/70R15
Rear Tyre - 160/60R14
|
|
