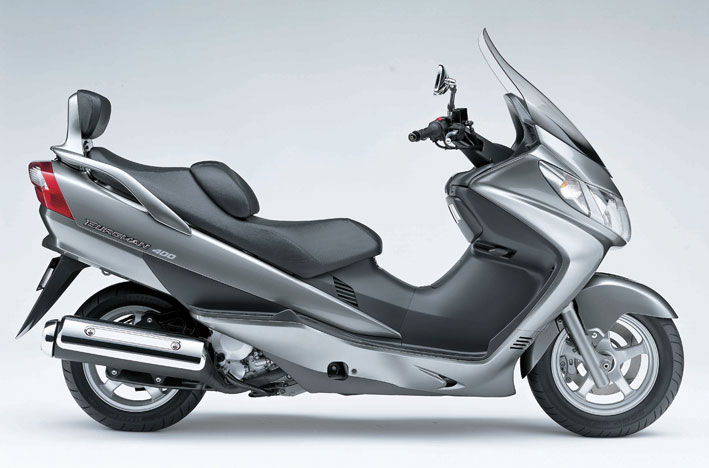

2006 Suzuki Burgman 400
Technical Specifications;
Overall length - 2,260mm
Overall width - 760mm
Overall height - 1,375mm
Wheelbase - 1,590mm
Ground clearance - 125mm
Seat height - 695mm
Dry mass - 184kg
Engine;
Engine type - Liquid-cooled, 4-stroke, single-cylinder, 4-valve
Bore x Stroke - 83.0 x 71.2mm
Max. power - 32ps@ 7,500rpm
Max. torque - 32Nm @ 6,000rpm
Piston displacement - 385cc
Compression ratio - 10.2 : 1
Carburation - Fuel injected
Lubrication - Wet sump
Electrical;
Ignition type - Electronic (transistorised)
Starter system - Electric
Transmission;
Clutch - Automatic centrifugal type
Transmission - Variable ratio automatic
Drive system - V-belt
Chassis;
Front suspension - Telescopic, 41mm inner tube, coil spring, oil damped
Rear suspension - Link type, progressive linkage, coil spring, gas/oil damped, externally adjustable spring preload
Rake / Trail - 27 degrees / 106mm (4.2 inches)
Front brake - 260mm single hydraulic disc
Rear brake - 210mm single hydraulic disc (Combined braking system)
Front tyre - 110/90-13
Rear tyre - 130/70-13
Fuel tank capacity - 13.0 litres
|
|
