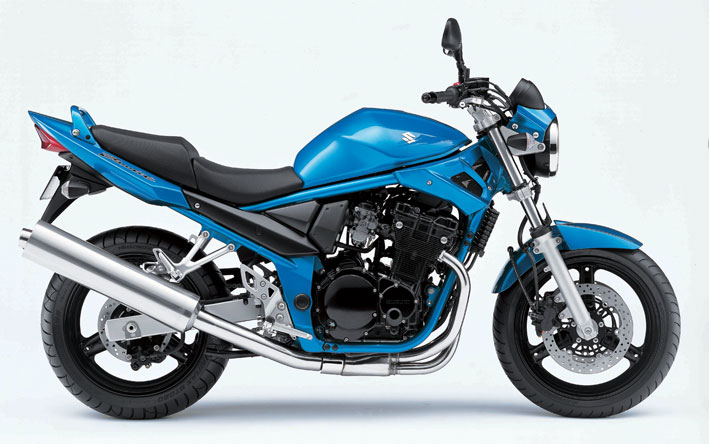

2006 Suzuki Bandit 650
Dimensions;
Overall Length - 2,110 mm
Overall Width - 770 mm
Overall Height - 1,090 mm
Wheelbase - 1,440 mm
Ground Clearance - 130 mm
Seat Height - Adjustable, 770 - 790 mm
Dry Mass - 201kg
Fuel Capacity - 20 litres
Engine;
Engine Type - 4-stroke, air-cooled with SACS, DOHC, 4-cylinder
Bore x Stroke - 65.5 mm x 48.7 mm
Max Power - 77.5 PS @ 10,100
Max Torque - 59.2 Nm @ 4,000
Piston Displacement - 656 cc
Compression Ratio - 10.5:1
Carburettor - Keihin CVR32
Lubrication - Wet sump
Electrical System;
Ignition Type - Digital electronic (Full Trangistorised)
Starter System - Electric starter
Transmission;
Clutch - Wet multi plate
Transmission - 6-speed, constant mesh
Drive System - Chain
Chassis;
Front Suspension - 41 mm telescopic, coil spring, spring pre-load fully adjustable
Rear Suspension - Link type, oil damped, coil spring, spring pre-load 7-way adjustable, rebound damping 4-way adjustable
Rake/Trail - 26 degrees/108 mm
Front Brake - 2-piston callipers, 290 mm dual-disc brake
Rear Brake - 2-piston calliper, 240 mm disc brake
Front Tyre - 120/70 ZR17M/C (58W)
Rear Tyre - 160/60 ZR17M/C
|
|
