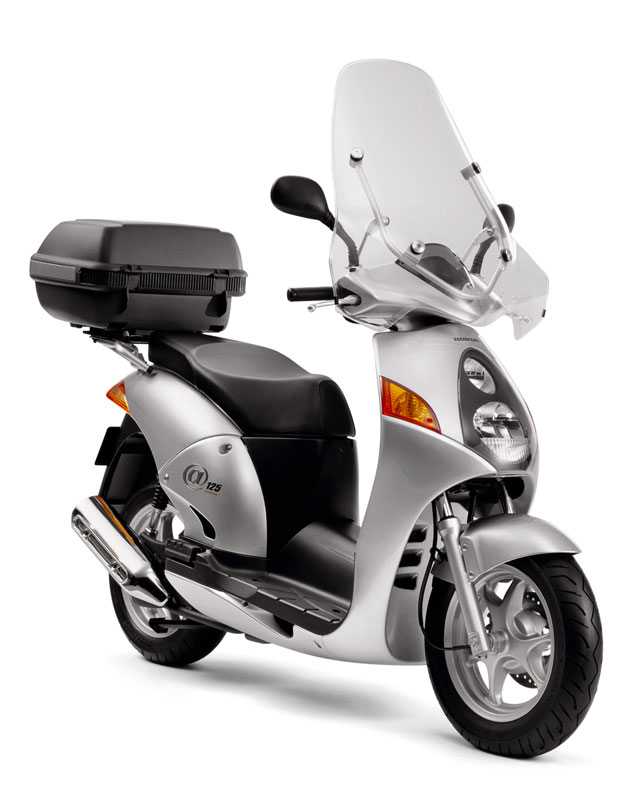

An attractive people mover on any street it travels, the @125 really grabs
attention with its modern, curvaceous lines and unique 2-in-1 headlight. Uptown,
downtown, anywhere your impulse leads you, the @125 is never out of place, and so
well-loved that it's always on the go. Its spacious, comfortable proportions almost make
you forget how lithe and agile it can be, and its elliptical curves conceal a convenient
carrying compartment right under its plushly padded seat.
Swift and smooth motivation comes by way of a quiet and powerful liquid-cooled
4-stroke single-cylinder engine that also features thrifty fuel economy and low
emissions that everyone can appreciate. And start-ups are as easy as the push of a
button. If distinctive style is a big attraction in your life, let everyone know you're
going your own way aboard the @125.
For fully licensed riders, the larger-displacement @150 provides an extra boost in
performance that makes it a perfect choice for those who want to maximise their style as
well as their riding and commuting enjoyment.
Colours;
Heavy Grey Metallic
Highlands Green Metallic
Velvet Red Metallic
Quasar Silver Metallic
New Features;
New colour variations
TRechnical Specifications @125 (ED-type);
Engine Type - Liquid-cooled 4-stroke SOHC single
Displacement - 125cm3
Bore x Stroke - 52.4 x 57.8mm
Compression Ratio - 11 : 1
Max. Power Output - 10.1kW/9,000min-1 (95/1/EC)
Max. Torque - 11.5Nm/7,250min-1 (95/1/EC)
Fuel System;
Carburation - 26mm VK-type carburettor
Fuel Tank Capacity - 9 litres (including 2.5-litre reserve)
Electrical System;
Ignition System - Digital transistorised with electronic advance
Starter - Electric
Drivetrain;
Transmission Type - V-Matic
Final Drive - V-belt
Chassis;
Dimensions - (LxWxH) 1,940 x 700 x 1,170mm
Wheelbase - 1,330mm
Seat Height - 800mm
Ground Clearance - 130mm
Dry Weight - 120kg
Suspension;
Type, Front - 33mm telescopic fork, 88mm axle travel
Rear - Dual damper unit swingarm, 75mm axle travel
Wheels;
Type, Front - Cast aluminium
Rear - Cast aluminium
Rim Size - Front; 13M/C x MT2.75
Rear - 13M/C x MT3.50
Tyre Size - Front; 110/90-13M/C 56L
Rear - 130/70-13M/C 57L
Brakes;
Type, Front - 220mm hydraulic disc with dual-piston calliper and sintered
metal pads
Rear - 130mm leading/trailing drum
All specifications are provisional and subject to change without notice.
Technical Specifications @150 (ED-type);
Engine Type - Liquid-cooled 4-stroke SOHC single
Displacement - 153cm3
Bore x Stroke - 58 x 57.8mm
Compression Ratio - 11 : 1
Max. Power Output - 11.6kW/8,500min-1 (95/1/EC)
Max. Torque - 14.2Nm/7,000min-1 (95/1/EC)
Fuel System;
Carburation - 26mm VK-type carburettor
Fuel Tank Capacity - 9 litres (including 2.5-litre reserve)
Electrical System;
Ignition System - Digital transistorised with electronic advance
Starter - Electric
Drivetrain;
Transmission Type - V-Matic
Final Drive - V-belt
Chassis;
Dimensions - (LxWxH) 1,940 x 700 x 1,170mm
Wheelbase - 1,330mm
Seat Height - 800mm
Ground Clearance - 115mm
Dry Weight - 120kg
Suspension;
Type, Front - 33mm telescopic fork, 89mm axle travel
Rear - Dual damper unit swingarm, 75mm axle travel
Wheels;
Type, Front - Cast aluminium
Rear - Cast aluminium
Rim Size - Front; 13M/C x MT2.75
Rear - 13M/C x MT3.50
Tyre Size - Front; 110/90-13M/C 56L
Rear - 130/70-13M/C 57L
Brakes;
Type - Front; 220mm hydraulic disc with dual-piston calliper and sintered
metal pads
Rear - 130mm leading/trailing drum
All specifications are provisional and subject to change without notice.
