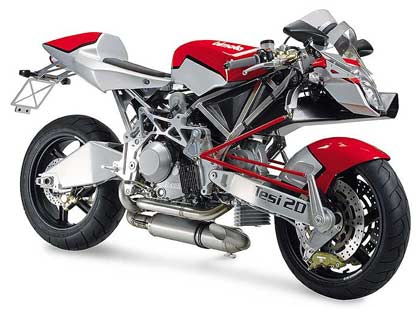

Bimota Tesi 2D - 2005
2004 is the 31st anniversary of Bimota's inception. Founded by three partners, Bimota has always been renowned as a manufacturer of extremely advanced and refined motorcycles, produced in limited editions and using components at the cutting edge of technology. The company, based in Rimini, developed through its race program the knowledge needed to create a series of production models and succeeded in manufacturing motorcycle models able to stimulate emotions for the street rider that can only be experienced when a machine is developed with care and commitment to
be the best it can be.
Bimota's aim today is to re-launch this historic brand, a brand that is still today a reference point for enthusiasts all over the world, and continue the tradition by creating refined and technologically advanced models with avant-garde designs. Through an on-going research program
and the utilisation of materials at the vanguard of technology, the company
strongly believes it can continue to create the ultimate in motor cycling perfection.
The tenacity to believe in an ongoing research and development
program that led from a quadrilateral steering system with
a floating swing arm, to a new dimension 2D.
The refinement epitomised by the machined frame in aircraft specification alloy The courage to make real futuristic visions that lead to the realization of projects such as Tesi, a concept that in 1990
shook the biking world.
The technology of the fully adjustable Double System suspension. The passion for the bike that stems from racing and carries through
into the production of exclusive models made with an intense care
for each and every component.
Front brake: 2 x 320 mm semi-floating discs, 4-piston calipers -
Brembo
Frame: Omega machined aluminium alloy
Wheelbase: 1375 mm / 54.1 in
Front suspension: Progressive linkage with fully adjustable Double
System monoshock
Front wheel travel: 120 mm / 4.7 in
Front wheel: 6 spoke design light alloy forged 3.50x17
Front tyre: 120/70 ZR 17
Rear suspension: Direct linkage with fully adjustable Double System
monoshock
Rear wheel travel: 120 mm / 4.7 in
Rear brake: 220 mm disc, 2-piston caliper
Rear wheel: 6 spoke design light alloy forged 5.50x17
Rear tyre: 180/55 ZR 17
Fuel tank capacity: 13 l / 3.4 US gal (including 3 l / 0.8 US gal reserve)
Weight: 149 kg / 340,6 lbs
Seat height: 830 mm / 32.7 in
Warranty: 2 years unlimited mileage
Colors: Silver/Red/Black
Engine: Ducati - L twin cylinder, 2 valves per cylinder
Desmodromic; air cooled
Displacement: 991 cc
Bore x Stroke: 94x71.5
Compression ratio: 10,5:1
Power: 63 kW - 85.5 Hp @ 8000 rpm
Torque: 87.5 Nm - 9 kgm @ 6300 rpm
Fuel injection: Electronic fuel injection, 45 mm throttle body
Emissions: Euro 2
Gearbox: 6 speed
Final drive: Chain; Front sprocket 15; Rear sprocket 38
Clutch: Dry Multi-plate with hydraulic control
|
