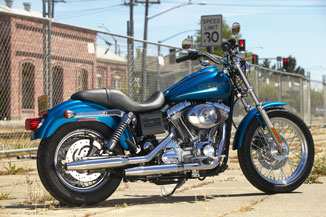

Harley Davidson FXDCI Dyna Super Glide Custom - 2005
Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
Clutch - Multi-plate, wet
Transmission - Five-speed
Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
Engine - 45º Aircooled Twin Cam 88 ® (vibration isolation-mounted)
Valves - Pushrod-operated overhead valves; w/hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke - 95.3 x 101.6 mm
Displacement - 1449 cc
Compression Ratio - 8.8:1
Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
Length - 2300 mm
Seat Height - (measure laden w/81.7kg rider) 673 mm
Ground Clearance - 137.2 mm
Rake - 28 degrees
Trail - 104.1 mm
Wheelbase - 1595 mm
Tyres: Dunlop Harley-Davidson Series, Front - D401 100/90-19 57H, Rear - D401 150/80B16 71H
Fuel Capacity - 17.8 L
Reserve Fuel Capacity - 3.4 L
Oil Capacity - 2.8 L
Dry Weight - 290 kg
Frame - Mild steel, rectangular section backbone w/twin down-tubes
Swing Arm - Mild steel, rectangular section
Front Fork - 39 mm w/polished aluminum fork triple clamp and dual-rate springs
Rear Shocks - Coil-over w/adjustable spring preload
Wheels - 19 in. laced front, 16 in. rear laced
Brakes: Caliper Type Four-piston front and rear
Rotor Type (diameter x width): Patented, Uniform Expansion Rotors, Front - 292.1 mm x 5.08 mm, Rear - 292.1 mm x 5.84 mm
Suspension travel: Front wheel - 155 mm, Rear wheel - 109 mm
Engine Torque (per 95/1/EC)2: 102 Nm @ 3400 rpm
Lean Angle (per SAEJ1168): Right - 31 degrees, Left - 32 degrees
Battery - Sealed 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging - 28-amp permanent magnet alternator w/solid-state regulator
(364 watts @ 3000 rpm; 416 watts peak)
Starting - 1.2 kw electric w/Bendix-type engagement
Lights: (As per country regulation)
Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
Tail/stop lights - 5w/21w
Turn signal lights - (self-canceling) 21w
Indicator lamps: High beam, neutral, oil pressure, engine diagnostic light,
turn signals and security system
Colours - Vivid Black, Sierra Red Pearl, Black Cherry Pearl, Lava Red Sunglo, Glacier White Pearl
Warranty - 24 months (unlimited mileage)
Service Interval - First 1,600 Km; every 8,000 Km thereafter.
Highlights
Engine Trim - Silver powdercoated w/chrome treatment
Exhaust System - Chrome staggered shorty duals
Oil tank - Under-transmission
Ignition - Right side under seat
Front Fender - Sport-style w/painted brace
Rear Fender - Sport wrap-around w/ chrome supports
Seat - One-piece rider and passenger accommodations
Instruments - Electronic speedometer w/odometer and
resettable tripmeter; fuel gauge
Fork Lock - Barrel key, key common w/ignition
| |
