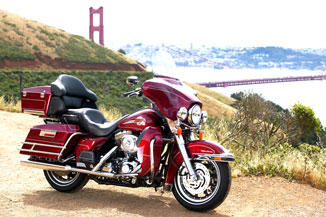

Harley Davidson FLHTCUI Ultra Classic Electra Glide - 2005
Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
Clutch - 9-plate, wet
Transmission - Five-speed
Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
Engine - 45º Aircooled Twin Cam 88 ® (vibration isolation-mounted)
Valves - Pushrod-operated overhead valves; w/hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke - 95.3 x 101.6 mm
Displacement - 1449 cc
Compression Ratio - 8.8:1
Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
Length - 2500 mm
Seat Height - (measure laden w/ 81.7kg rider) 693 mm
Ground Clearance - 129.5 mm
Rake - 26 degrees
Trail - 157.5 mm
Wheelbase - 1592 mm
Tyres: Dunlop Harley-Davidson Series, Front - D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
Fuel Capacity - 18.9 L
Oil Capacity - 3.8 L
Dry Weight - 372 kg
Frame - Mild steel, rectangular section backbone w/ twin down-tubes
Swing Arm - Conventional, rectangular
Front Fork - Telescopic cartridge-style damping
Rear Shocks - Air-adjustable
Wheels - 16 in. front, 16 in. rear 9-hollow spoke, cast aluminum alloy
Brakes: Caliper Type Four-piston front and rear
Rotor Type (diameter x width): Patented, Uniform Expansion Rotors, Front - (DUAL) 292.1 mm x 5.08 mm, Rear - 292.1 mm x 5.84 mm
Suspension travel: Front wheel - 117 mm, Rear wheel - 76 mm
Engine Torque (per 95/1/EC)2: 109 Nm @ 3400 rpm
Lean Angle (per SAEJ1168): Right - 31 degrees, Left - 30 degrees
Lights: (As per country regulation)
Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
Passing lamps - 2 @ 35w (except where prohibited by law)
Tail/stop lights - 3 each @ 21w
Turn signal lights - (self-canceling) 21w
Indicator lamps: High beam, passing lamps, neutral, oil pressure,
engine diagnostic light, low fuel warning, cruise control,
speakers, accessory, turn signals, and security system
Colours - Vivid black, sierra red pearl, black cherry pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold pearl and vivid black, two-tone
vivid black and lava red sunglo
Warranty - 24 months (unlimited mileage)
Service Interval - First 1,600 Km; every 8,000 Km thereafter.
Highlights
Engine Trim - Black powdercoated w/ chrome covers
Exhaust System - Chrome crossover duals
Ignition Tank - console-mounted
Seat - Two up
Passenger Backrest - Integrated in Tour-Pak lid w/ wrap-around armrests
Foot Supports - Full-length operator floor boards w/ heel-toe shifter lever
Fairing - Fork-mounted "Bat Wing"
Fairing - Air Deflectors Clear Lexan w/ hand-removable fasteners
Lower Fairings - GTX nylon, vented, removable
Windshield - Clear Lexan
Glovebox 2 - located in lower fairings w/snap-covers
Instruments - Electronic Speedometer and tachometer; fuel gauge; voltmeter;
oil pressure gauge; clock (integrated in stereo); ambient air temperature gauge; odometer and resettable trip meter
Stereo - Premium sound system (40 watts per speaker) w/ AM/FM/CD player,
fairing-mounted speakers, Weather Band, digital clock, radio controls
for passenger, bi-directional seek and scan, music search and music scan,
4 presets and automatic volume control w/adjustable sensitivity
Aux. Audio Input On radio face; will accommodate any line-level audio
output device, like personal CD or MP3 player
Antenna - Twin AM/FM/WB and CB antennae
Rear Speakers Push-to-talk, or voice-activated w/ adjustable sensitivity
Intercom - Integral w/passenger backrest
CB 4-Watt, 40-Channel electronically tuned CB
(prohibited in some countries) w/passenger controls
Headset/headset receptacles Driver and passenger stereo helmet headset
receptacles for CB/intercom/sound system
(use restricted in some states and countries; single headset included)
Cruise Control Electronic w/set, resume, accelerate and decelerate functions
Handlebar Controls - Start; engine cutoff; L/R turn signals; horn;
hi/low beam; sound system audio and channel control, CB/intercom and cruise control
Hazard Warning Integrated w/turn signal controls
Electrical - Power Outlet Cigarette lighter; 4-pin accessory connector beneath seat
Tour-Pak Deluxe, fiberglass, side-hinged w/capacity for 2 full-face
helmets, fabric-lined interior, custom-fit woven-nylon
soft luggage liners, storage pocket, volume: 75L
Saddlebags - Fiberglass w/hinged lids and slant chrome latches,
custom-fit woven-nylon soft luggage liners,
chrome dual-rail saddlebag guards volume: 36L per bag
Luggage Locks - Tour-Pak and saddlebag barrel-key; common w/ignition
Fork Lock - Barrel key, common w/ignition
Gas Cap - Lock Barrel key, common w/ ignition
Battery - Sealed, maintenance-free, 12-volt, 29 amp-hour, 270 cca
(per Battery Council International rating)
Charging - 45-amp permanent magnet alternator w/solid-state regulator
(559 watts @ 2000 rpm; 599 watts peak)
Starting - 1.2 kw electric w/Bendix-type engagement
Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws, and
some models are not available in certain countries. All models feature 5-speed transmission and carbon fiber belt final drive; 40 mm constant velocity carburetor with enrichner and accelerator pump (except Electronic Sequential Pat Fuel Injection Models); and multi-plate clutch with diaphragm spring in oil bath. Values are nominal. Performance varies by country. Availability may vary from dealer to dealer, and is subject to change without notice. See motorcycle owner's manual for complete details.
|
