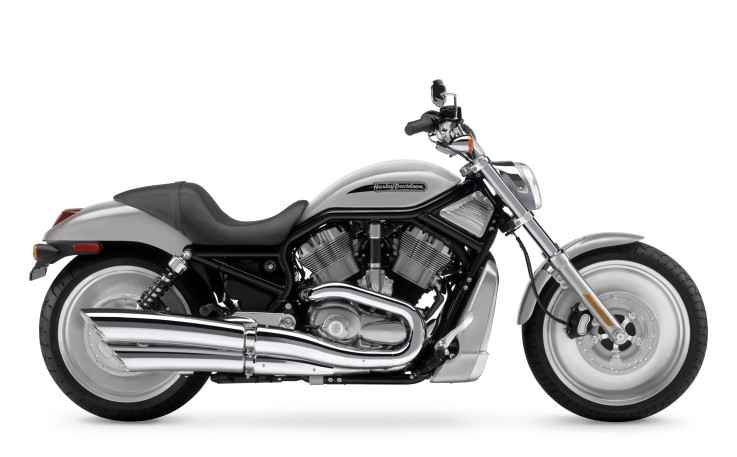

2004 Harley Davidson VRSCB V-Rod

The VRSCB V-Rod is a reinterpretation of the original. Start with a black frame and black-and-silver engine with polished highlights, then add black to components like the control levers, rear springs and brake callipers. A new interchangeable handlebar and minimalist, silver instrument housing give the VRSCB V-Rod a harder edge than its brother. A range of colour treatments is available on this model, including a version of the popular Anodised Aluminium, Vivid Black and the impactful Racing Orange.

VRSCB features:

• Liquid-cooled, 1,130cc Revolution V-twin engine
• Black-and-silver powder coated engine with chrome highlights
• Aluminium bodywork available in Anodised Aluminium, Vivid Black or Racing Orange
• Black-painted hydroformed frame
• Black-painted controls
• Interchangeable handlebars
• Aerodynamic reflector-optic headlight
• 18 Inch disc rear wheel; 19 inch disc front wheel
• Aluminium radiator shroud with twin vortex air scoops

Specifications - VRSCB V-Rod

• Length - 2435 mm
• Seat Height (measure laden w/ 81.7kg rider) - 660 mm
• Ground Clearance - 141.0 mm
• Rake (steering head) - 34.0 degrees
• Fork Angle - 38.0 degrees
• Trail - 99.1 mm
• Wheelbase - 1710 mm
• Tyres: Radial, Front - D207 120/70ZR19 60W, Rear - D207 180/55ZR18 74W
• Fuel Capacity - 14.0 L
• Reserve Fuel Capacity - No reserve due to fuel injection
• Oil Capacity - 4.3 L
• Dry Weight - 275 kg
• Engine - 60º Liquid-cooled V-Twin RevolutionT engine
• Valves - Direct acting double overhead cam; four valves per cylinder; chain driven w/ hydraulic tensioners
• Bore x Stroke - 100 x 72 mm
• Displacement - 1131 cc
• Compression Ratio - 11.3:1
• Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
• Air Cleaner Downdraft intake - hidden
• Lubrication System - Wet-sump, integrated w/ powertrain crankcase
• Primary Drive - Double row chain, oil bath, mechanical tensioner, 117/64 ratio, Final Drive Gates carbon fiber reinforced polychain belt, 72/30 ratio
• Clutch - 9-plate, wet
• Transmission - Five-speed
• Overall Ratio: 1st - 10.98, 2nd - 7.38, 3rd - 5.88, 4th - 5.10, 5th - 4.57
• Frame - Steel perimeter upper frame w/ hydroformed main rails and bolt-on lower frame rails
• Swing Arm - One piece cast aluminum polished
• Front Fork - Wide 49 mm custom fork
• Wheels - 19-inch front, 18-inch wide cast disc rear
• Brakes: Caliper type Four-piston front and rear
• Rotor type (diameter x width): Patented, One piece floating rotor (front), Uniform Expansion Rotor (rear); Front (Dual) 292.1mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
• Suspension Travel: Front Wheel 100 mm, Rear Wheel 70 mm
• Engine Torque (per 95/1/EC)2: World 105 NM @ 6600 rpm, France (opt. Germany) 97Nm@6100 rpm
• Lean Angle (per SAEJ1168): Right 32.0 degrees, Left 32.0 degrees
• Battery - Sealed, maintenance-free, 12-volt, 12 amp-hour (per Battery Council International rating) 200 cca
• Charging - 37-amp rare earth magnet alternator solid-state regulator (481w @ 3000 rpm, 494w peak)
• Starting - 0.8kw electric Bendix-type engagement
• Lights: (As per country regulation)
• Headlamp - Quartz Halogen 55-watt low beam, 60-watt high beam
• Tail/stop lights - reflector optics 5w/21w
• Turn signal lights (self-canceling) 21w - Indicator lamps High beam, neutral, oil, turn signals, engine diagnostics, cooling temperature, low fuel, security system

Styling

• Engine Trim - Powdercoated platinum silver crankcase, Silver cylinder heads and chrome-plated covers
• Exhaust System Highly stylized 2 into 1 into 2
• Ignition Barrel - Keyed, right side under seat
• Seat - 2-piece textured vinyl w/ flip-up fuel fill access
• Passenger Backrest Available - Genuine Motor Accessories
• Foot Supports - Forward
• Rear Fender Supports - Internal to rear fender w/ included P&A saddlebag mounting points
• Instruments - Electronic speedometer w/ odometer and resettable tripmeter w/diagnostic capabilities and solid state tell-tale indicator module; tachometer. Hazard warning Integrated into turn signal controls
• Fork Lock - Barrel Key, common w/ ignition key
• colours - Anodized Aluminium, Vivid Black, Racing Orange
• Warranty - 24 months (unlimited mileage)
• Service Interval - First 1,600 Km; every 8,000 Km thereafter.
