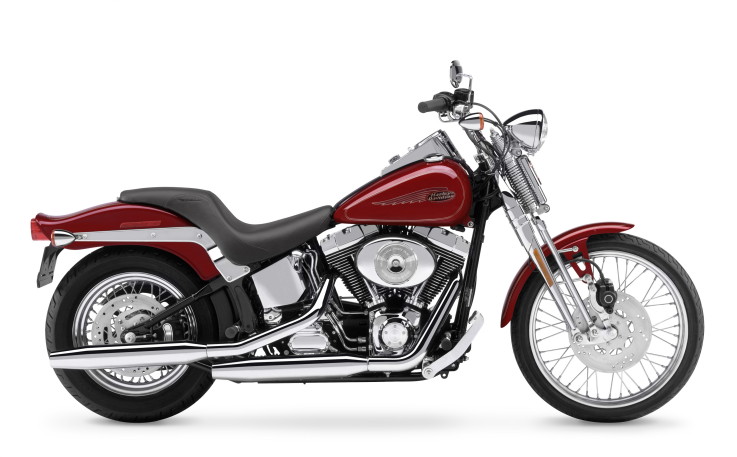

2004 Harley FXSTSI Springer Softail
The only motorcycle on the market today sporting
a classic springer fork, the FXSTSI Springer Softail
gets a new attitude for 2004 with a wider, flat handlebar
and a low, smooth Badlander seat with subtle top-stitching.
The bobtail rear fender and laced 21 inch front wheel
complete the new, edgier look.
FXSTSI Springer Softail features:
- Rigid-mount, Twin Cam 88B balanced engine
- Black powder-coated engine with chrome covers
- Chrome springer forks
- Laced wheels
- Chrome tank console, rear fender supports, oil
tank and air cleaner
- Low, smooth Badlander seat
Specifications - FXSTSI Springer Softail
- Length - 2375 mm
- Seat Height (measure laden w/ 81.7kg rider) -
640 mm
- Ground Clearance - 137.2 mm
- Rake - 32 degrees
- <>li>Trail - 134.6 mm
- Wheelbase - 1660 mm
- Tyres: Dunlop Harley-Davidson Series
- Front - D402F MH90-21 54H
- Rear - D401 150/80B 16 71H
- Fuel Capacity - 18.9 L
- Reserve Fuel Capacity - 1.9 L
- Oil Capacity - 3.3 L
- Dry Weight - 302 kg
- Engine - 45º Air-cooled Twin Cam 88BT (balanced)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449 cc
- Compression Ratio - 8.8:1
- Fuel System Electronic Sequential Port Fuel Injection
(ESPFI)
- Drivetrain - Primary Drive Double row chain, oil
bath, mechanical tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate, wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm Triangular "hard tail" style
- Rear Shocks - Hidden, horizontal-mounted, coil-over
- Front Fork - Chrome, leading-link, "Springer"
style
- Wheels - 21 in. laced front, 16 in. laced rear
- Brakes: Caliper type Single-piston front, and
four-piston rear
- Rotor type (diameter x width): Front 292.1 mm
x 5.08 mm, Rear 292.1 mm x 5.84 mm
- Suspension travel: Front Wheel 112 mm, Rear Wheel
110 mm
- Engine Torque (per 95/1/EC)2: 102 Nm@3500 rpm
- Lean Angle (per SAEJ1168): Right 32 degrees, Left
31 degrees
- Battery - Sealed, maintenance-free, 12-volt, 19
amp-hour, 270 cca (per Battery Council International
rating)
- Charging - 37-amp permanent magnet alternator
w/ solid-state regulator (481 watts @ 3,000 rpm,
494 watts peak)
- Starting - 1.2 kw electric w/ Bendix-type engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen 55-watt low beam, 60-watt
high beam
- Tail/stop lights - 5w/21w
- Turn signal lights (self-canceling) - 21w - Indicator
lamps High beam, neutral, oil, turn signals, and
security system
Styling
- Engine Trim Powdercoated black w/ chrome covers
- Exhaust System Chrome staggered shorty duals
- Oil Tank Chrome "Horseshoe" w/ chrome external
oil lines
- Ignition Tank console-mounted
- Foot Supports Forward controls
- Rear Fender Bobtail
- Rear Fender Supports Chrome
- Fork Lock Barrel key, common w/ ignition
- Instruments Electronic speedometer w/ odometer
and resettable tripmeter w/ diagnostic readout capabilities
- Flasher Hazard warning integrated into turn signal
controls
- Vivid Black, Luxury Blue, Sierra Red, Lava Red
Sunglo, Impact Blue
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km, every 8,000
Km thereafter.
|
