2004 Harley Havidson FXSTBI
Night Train

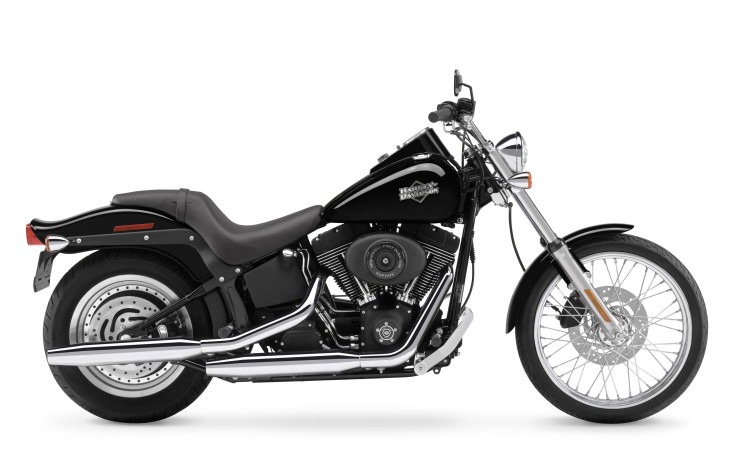

FXSTBI Night Train
Black is the new black. The FXSTBI Night
Train is dark as night, black as coal. Choose
Vivid Black or new Lava Red Sunglo paint on
the tank and fenders, accented by wrinkle-black
trim on the engine covers and a black tank
console, air cleaner, oil tank and rear fender
support. The chrome pipes look even brighter
surrounded by all that black trim. A new three-dimensional
tank emblem is only available on the Night
Train.
FXSTBI Night Train features:
Rigid-mount, Twin Cam 88B balanced engine
Black powder-coated engine with wrinkle-black
and texture-black covers
Laced 21 inch front wheel; 16 inch disc
rear wheel
Low, smooth Badlander seat
Drag bars on 152mm risers
Black tank console, air cleaner, oil tank
and rear fender supports
Three-dimensional tank emblem
Specifications - FXSTBI Night Train
Length - 2420 mm
Seat Height (measure laden w/ 81.7kg rider)
- 640 mm
Ground Clearance - 142.2 mm
Rake - 32 degrees
Trail - 127 mm
Wheelbase - 1695 mm
Tyres: Dunlop Harley-Davidson Series - Front
- D402F MH90-21 54H, Rear - D401 150/80B 16
71H
Fuel Capacity - 18.9 L
Reserve Fuel Capacity - 1.9 L
Oil Capacity - 3.3 L
Dry Weight - 292 kg
Engine - 45º Air-cooled Twin Cam 88BT (balanced)
Valves - Pushrod-operated overhead valves;
w/ hydraulic self-adjusting lifters; two valves
per cylinder
Bore x Stroke - 95.3 x 101.6 mm
Displacement - 1449 cc
Compression Ratio - 8.8:1
Fuel System - Electronic Sequential Port
Fuel Injection (ESPFI)
Primary Drive - Double row chain, oil bath,
mechanical tensioner, 36/25 ratio
Final Drive Gates - carbon fiber reinforced
polychain belt, 32/70 ratio
Clutch - 9-Plate, wet
Transmission - Five-speed
Overall Ratio: 1st - 10.11, 2nd - 6.96,
3rd - 4.95, 4th - 3.87, 5th - 3.15
Frame - Mild steel, rectangular section
backbone w/ twin down-tubes
Swing Arm - Triangular "hard tail" style
Rear Shocks - Hidden, horizontal-mounted,
coil-over
Front Fork - 41.3 mm telescopic
Wheels - 21 in. laced front, 16 in. cast
black disc rear
Brakes: Caliper type Four-piston front and
rear
Rotor type (diameter x width): Patented,
Uniform Expansion Rotors - Front 292.1 mm
x 5.08 mm, Rear 292.1 mm x 5.84 mm
Suspension travel: Front Wheel 142 mm, Rear
Wheel 110 mm
Engine Torque (per 95/1/EC)2: 102 Nm@3500
rpm
Lean Angle (per SAEJ1168): Right 31 degrees,
Left 34 degrees
Battery - Sealed, maintenance-free, 12-volt,19
amp-hour, 270 cca (per Batter y Council International
rating)
Charging - 37-amp permanent magnet alternator
w/ solid-state regulator (481 watts @ 3,000
rpm, 494 watts peak)
Starting - 1.2 kw electric w/ Bendix-type
engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam,
60-watt high beam
Tail/stop lights - 5w/21w
Turn signal lights (self-canceling) - 21w
- Indicator lamps High beam, neutral, oil,
turn signals, and security system
Styling
Engine Trim - Powdercoated black w/ black
covers
Exhaust System - Chrome staggered shorty
duals
Oil Tank Black - "Horseshoe" w/ chrome external
oil lines
Ignition Tank - console-mounted
Foot Supports - Forward controls
Rear Fender - Bobtail
Rear Fender - Supports Black wrinkle finish
Fork Lock - Barrel key, common w/ ignition
Instruments - Electronic speedometer w/
odometer and resettable tripmeter w/ diagnostic
readout capabilities. Flasher Hazard warning
integrated into turn signal controls
Colours - Vivid Black, Lava Red Sunglo
Warranty 24 months (unlimited mileage)
Service Interval - First 1,600 Km; every
8,000 Km thereafter.
|
