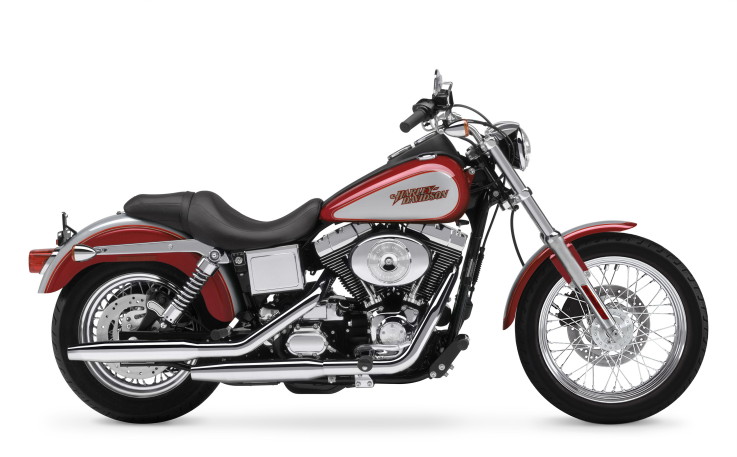

2004 Harley FXDLI Dyna Low Rider

The FXDLI Dyna Low Rider offers a long, low profile with a raked out fork-styling that's favored by many riders. Its 689mm seat height, easy-toreach pull-back bars, mid-mount foot controls and a low centre of gravity make it a great choice for shorter riders, but this is a bike any rider will enjoy.

FXDLI Dyna Low Rider features:

• Vibration-isolated Twin Cam 88 engine
• Black powder-coated engine with chrome covers
• Low-profile suspension
• Low-slung custom seat
• Raked-out fork
• Pull-back handlebars
• Mid-mount foot controls
• Tank-mounted speedometer and tachometer

Specifications - FXDLI Dyna Low Rider

• Length - 2340 mm
• Seat Height (measure laden w/ 81.7kg rider) - 640 mm
• Ground Clearance - 116.8 mm
• Rake - 32 degrees
• Trail - 129.5 mm
• Wheelbase - 1625 mm
• Tyres: Dunlop Harley-Davidson Series - Front - D401F 100/90-19 57H, Rear - D401 150/80B16 71H
• Fuel Capacity - 17.4 L
• Reserve Fuel Capacity - 3.4 L
• Oil Capacity - 2.8 L
• Dry Weight - 290 kg
• Engine - 45º Air-cooled Twin Cam 88® (vibration isolation-mounted)
• Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
• Bore x Stroke - 95.3 x 101.6 mm
• Displacement - 1449 cc
• Compression Ratio - 8.8:1
• Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
• Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
• Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
• Clutch - Multi-plate, wet
• Transmission - Five-speed
• Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
• Frame - Mild steel, rectangular section backbone w/ twin down-tubes
• Swing Arm - Mild steel, rectangular section
• Front Fork - 39 mm w/ polished aluminum fork triple clamp and dual-rate springs
• Rear Shocks - Low-profile coil-over w/ adjustable spring preload
• Wheels - 19-inch laced front, 16-inch rear laced
• Brakes: Caliper type Four-piston front and rear
• Rotor type (diameter x width): Patented, Uniform Expansion Rotors - Front 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
• Suspension travel: Front wheel 155 mm, Rear wheel 84 mm
• Engine Torque (per 95/1/EC)2: 102 Nm@3400 rpm, Lean Angle (per SAEJ1168): Right 29 degrees, Left 29 degrees
• Battery - Sealed 12-volt, 19 amp-hour, 270cca (per Battery Council International rating)
• Charging - 28-amp permanent magnet alternator w/ solid-state regulator (364 watts @ 3,000 rpm, 416 watts peak) Starting 1.2 kw electric w/ Bendix-type engagement
• Lights: (As per country regulation)
• Headlamp - Quartz halogen 55-watt low beam, 60-watt high beam
• Tail/stop lights - 5w/21w
• Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil pressure, engine diagnostic light, turn signals and security system
• Styling
• Engine Trim - Black powdercoated w/ chrome covers
• Exhaust System - Staggered chrome shorty duals
• Oil Tank - Under-transmission
• Foot Supports - Forward controls
• Ignition - Right side under seat
• Front Fender - Sport-style w/ painted brace
• Rear Fender - Sport wrap-around w/ chrome supports
• Foot Pegs - Rubber-isolated operator and rubber covered passenger
• Seat - Low-slung custom seat w/ tapered passenger pillion
• Instruments - Electronic speedometer w/ odometer and resettable tripmeter; tachometer, fuel gauge
• Fork Lock - Barrel key, key common w/ ignition
• Colours - Vivid Black, Luxury Blue, Brilliant Silver, Sierra Red, Lava Red Sunglo, Impact Blue, Glacier White Pearl, Two Tone Luxury Blue/Impact Blue
• Warranty - 24 months (unlimited mileage)
• Service Interval - First 1,600 Km; every 8,000 Km thereafter.
