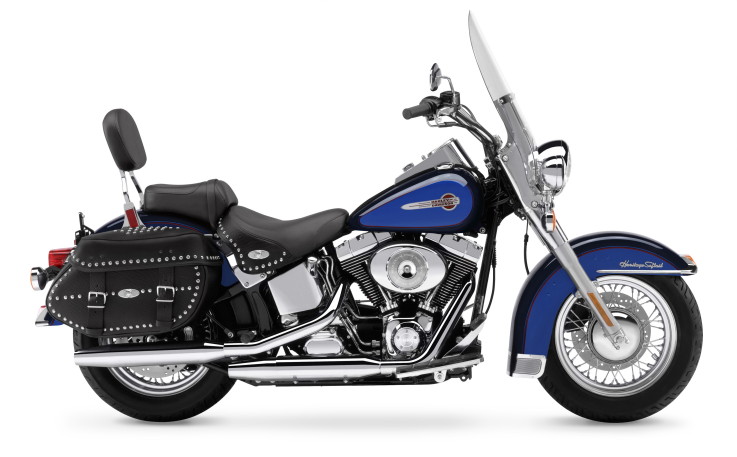

2004 Harley FLSTCI Heritage Softail
Classic
With a look that's a flashback to the Eisenhower
era, the FLSTCI Heritage Softail Classic will shimmer
- day or night. Sporting studded leather saddlebags
and seat trim, detachable windshield, passing lamps,
full skirted FL fenders and high touring handlebars,
you'll be cruising.
FLSTCI Heritage Softail Classic features:
- Rigid-mount, Twin Cam 88B balanced engine
- Black powder-coated engine with chrome covers
- Detachable king-size Lexan windshield
- Leather saddlebags with quick-release buckles
- Passenger backrest
- Competition handlebars
- Full FL front fender with chrome accents
- Chrome passing lamps
- Chrome hub cover
- Chrome plated directional light bar
Specifications - FLSTCI Heritage Softail Classic
- Length - 2391 mm
- Seat Height (measure laden w/ 81.7kg rider) -
648 mm
- Ground Clearance - 129.5 mm
- Rake - 32 degrees
- Trail - 147 mm
- Wheelbase - 1630 mm
- Tyres: Dunlop Harley-Davidson Series - Front -
D402F MT90B16 72H, Rear - D401 150/80B16 71H
- Fuel Capacity - 19.7 L
- Reserve Fuel Capacity - 1.9 L
- Oil Capacity - 3.3 L
- Dry Weight - 322 kg
- Engine - 45º Air-cooled Twin Cam 88BT (balanced)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449 cc
- Compression Ratio - 8.8:1
- Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
- Primary Drive - Double row chain, oil bath, mechanical
tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate, wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm - Triangular "har d tail" style
- Front Fork - 41.3 mm, Telescopic w/ "beer can"
covers
- Wheels 16 in. laced front, 16 in. laced rear
- Brakes: Caliper type Four-piston front and rear
- Rotor type (diameter x width): Patented, Uniform
Expansion Rotors - Front 292.1 mm x 5.08 mm, Rear
292.1 mm x 5.84 mm
- Suspension travel: Front Wheel 130 mm, Rear Wheel
110 mm
- Engine Torque (per 95/1/EC) EFI: 102 Nm@3500 rpm,
Lean Angle (per SAEJ1168):Right 29 degrees, Left
28 degrees
- Battery - Sealed, maintenance-free, 12-volt, 19
amp-hour, 270 cca (per Battery Council International
rating)
- Charging 37-amp permanent magnet alternator w/
solid-state regulator (481 watts @ 3,000 rpm, 494
watts peak)
- Starting - 1.2 kw electric w/ Bendix-type engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen 55-watt low beam, 60-watt
high beam
- Tail/stop lights - 5w/21w
- Turn signal lights (self-canceling) - 21w - Passing/fog
lamps, standard indicator lamps, high beam, neutral,
oil, turn signals, and security system
Styling
- Engine Trim - Powdercoated black w/ chrome covers
- Exhaust System - Chrome staggered shorty duals
- Oil Tank - Chrome "Horseshoe" w/ chrome external
oil lines
- Ignition Barrel - key, tank console-mounted
- Windshield - Detachable king-size Lexan
- Passenger Backrest - Standard
- Saddlebags - Nostalgic studded leather
- Foot Supports - Full-length operator floorboards
w/ heel-toe shifter lever
- Rear Fender - Full coverage
- Rear Fender - Supports Chrome
- Fork Lock Barrel - key, common w/ ignition
- Instruments - Electronic speedometer w/ odometer
and resettable tripmeter w/ diagnostic readout capabilities.
Flasher Hazard warning integrated into turn signal
controls
- Colours - Vivid Black, Luxury Blue, Brilliant
Silver, Sierra Red, Luxury Teal, Lava Red Sunglo,
Glacier White Pearl, Two-Tone Luxury Blue/Impact
Blue, Two-Tone Luxury Teal/Brilliant Silver
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
