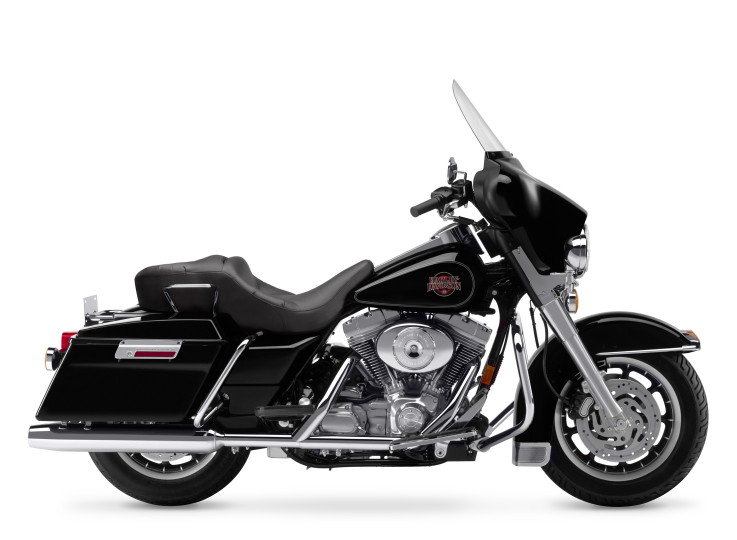

2004 Harley FLHTI Electra Glide Standard
Representing great value, the FLHTI Electra Glide
Standard offers a host of basic touring amenities,
including locking fibreglass saddlebags, fork-mounted
fairing, and air-adjustable rear suspension. New this
year is a comfort-stitch seat that replaces the plush
button seat used on previous models. The new seat
eliminates pressure points and water pockets created
by the seat buttons. A new rear tyre is slightly wider
and offers longer life for added touring pleasure
and reduced service cost. Available with standard
EFI, the Electra Glide Standard is a great entry-level
touring mount or a starting point for the rider who
wants to customise a bike to his or her exact specifications.
FLHTI Electra Glide Standard features:
- Vibration-isolated 1450cc Twin Cam 88 engine
- Silver powder-coated engine
- Air-adjustable rear suspension
- Bat-wing, fork-mounted fairing
- Fibreglass saddlebags
- Comfort-stitch touring saddle
- Fairing-mounted speedometer and tachometer, fuel
gauge and voltmeter
- Triple-disc brakes
Specifications - FLHTI Electra Glide Standard
- Length - 2440 mm
- Seat Height (measure laden w/ 81.7kg rider) -
693 mm
- Ground Clearance - 129.5 mm
- Rake - 26 degrees
- Trail - 157.5 mm
- Wheelbase - 1592 mm
- Tyres: Dunlop Harley-Davidson Series - Front -
D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
- Fuel Capacity - 18.9 L
- Reserve Fuel Capacity - 3.4 L
- Oil Capacity - 3.8 L
- Dry Weight - 332 kg
- Engine - 45º Air-cooled Twin Cam 88® (vibration
isolation-mounted)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449cc
- Compression Ratio - 8.8:1
- Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
- Primary Drive Double row chain, oil bath, mechanical
tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate,wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm - Conventional, rectangular
- Front Fork - Telescopic w/ cartridge-style damping
- Rear Shocks - Air-adjustable
- Wheels - 16 in. front 16 in. rear 9-hollow spoke,
cast aluminium alloy
- Brakes: Caliper type Four-piston front and rear
- Rotor type (diameter x width): Patented, Uniform
Expansion Rotors - Front 292.1 mm x 5.08 mm, Rear
292.1 mm x 5.84 mm
- Suspension Travel: Front 117 mm, Rear 76 mm
- Engine Torque (per 95/1/EC): 109 Nm@3400 rpm
- Lean Angle (per SAEJ1168): Right 31 degrees, Left
30 degrees
- Battery - Sealed, maintenance-free, 12-volt, 30
amp-hour, 270 cca (per Battery Council International
rating)
- Charging - 37-amp permanent magnet alternator
w/ solid-state regulator
- Starting - 1.2 kw electric w/ Bendix-type engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen, 55-watt low beam, 60-watt
high beam
- Passing lamps - 2 @ 35w (except where prohibited
by law)
- Tail/stop lights - 5w/21w
- Turn signal lights (self-canceling) - 21w - Indicator
lamps High beam, passing lamps, neutral, oil pressure,
engine diagnostic light, accessory, turn signals,
cruise control (pre-wired), and security system
Styling
- Engine - Trim Silver powdercoated w/ polished
aluminum covers
- Exhaust System - Chrome cross-over duals
- Ignition Tank - console-mounted
- Seat - Extended comfort; plush, pillow-look; accepts
available driver backrest
- Foot Supports - Full-length operator floor boards
w/ heel-toe shifter lever
- Fairing - Fork-mounted "Bat Wing"
- Windshield - Clear Lexan
- Instruments - Electronic speedometer and tachometer
w/ odometer and resettable tripmeter; voltmeter;
fuel gauge. Cruise Control Wired to accept electronic
cruise control. Handlebar Controls Start; engine
cutoff; L/R turn signals; horn; hi/low beam; audio
controls in place for easy installation of available
system. Hazard Warning Integrated w/ turn signal
controls
- Electrical Power Outlet(s) - Cigarette lighter;
4-pin accessory connector beneath seat
- Saddlebags - Fiberglass w/ hinged lid and chrome
slant latches, volume 36L per bag. Luggage Locks
Saddlebag barrel key, common w/ ignition
- Fork Lock - Barrel key, common w/ ignition
- Gas Cap Lock Barrel key, common w/ ignition
- Colours - Vivid Black
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
