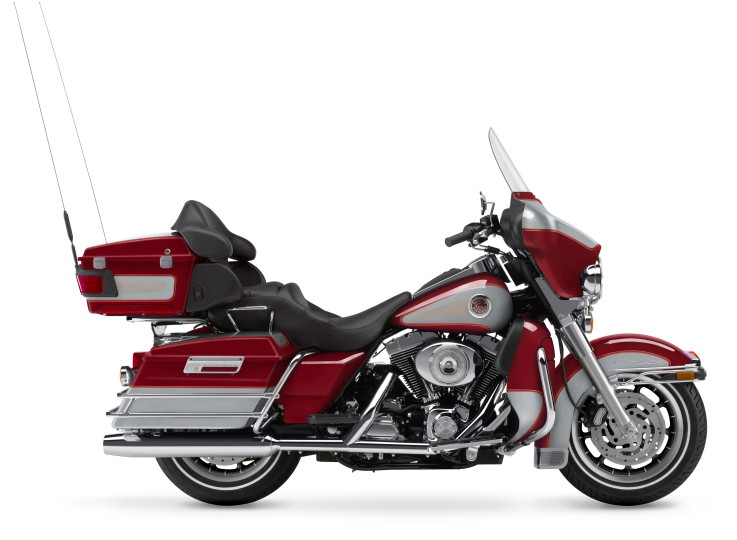

2004 Harley FLHTCUI Ultra Classic
Electra Glide
The ultimate touring machine from Harley-Davidson,
the FLHTCUI Ultra Classic Electra Glide offers every
feature a serious touring rider could ask for, including
electronic cruise control, standard fuel injection,
lower fairings with storage compartments, full instrumentation,
passenger sound system and bike to bike C.B. radio*
and intercom. A new rear tyre is slightly wider and
offers longer life for added touring pleasure and
reduced service cost.
FLHTCUI Ultra Classic Electra Glide features:
- Vibration-isolated 1450cc Twin Cam 88 engine with
fuel injection
- Black powder-coated engine with chrome covers
- Bat-wing, fork-mounted fairing
- Lower fairings with storage compartments
- Fibreglass saddlebags with King Tour-Pak
- Custom-fit soft luggage liners
- Tour-Pak mounted tail/stop light
- Comfort-stitch touring saddle and passenger backrest
- Full instrumentation (electronic tachometer and
speedometer, fuel gauge, voltmeter, oil-pressure
gauge, ambient air temperature gauge and odometer/tripmeter)
- 40-watt per channel, four-speaker AM/FM/CD sound
system
- C.B.* and intercom
- Passenger sound system and C.B.*/intercom controls
- Electronic cruise control
- Triple-disc brakes
- Air-adjustable rear suspension
Specifications - FLHTCUI Ultra Classic Electra Glide
- Length - 2500 mm
- Seat Height (measure laden w/ 81.7kg rider) -
693 mm
- Ground Clearance - 129.5 mm
- Rake - 26 degrees
- Trail - 157.5 mm
- Wheelbase - 1592 mm
- Tyres: Dunlop Harley-Davidson Series - Front -
D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
- Fuel Capacity - 18.9 L
- Reserve Fuel Capacity - 3.4 L
- Oil Capacity - 3.8 L
- Dry Weight - 372 kg
- Engine - 45º Air-cooled Twin Cam 88® (vibration
isolation-mounted)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449 cc
- Compression Ratio - 8.8:1
- Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
- Primary Drive - Double row chain, oil bath, mechanical
tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate, wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm - Conventional rectangular
- Front Fork - Telescopic cartridge-style damping
- Rear Shocks - Air-adjustable
- Wheels - 16 in. front, 16 in. rear, 9-hollow spoke,
cast aluminum alloy
- Brakes: Caliper type Four-piston front and rear
- Rotor type (diameter x width): Patented, Uniform
Expansion Rotors - Front (DUAL) 292.1 mm x 5.08
mm, Rear 292.1 mm x 5.84 mm
- Suspension travel: Front 117 mm, Rear 76 mm
- Engine Torque (per 95/1/EC2: 109 Nm@3400 rpm
- Lean Angle (per SAEJ1168): Right 31 degrees, Left
30 degrees
- Battery - Sealed, maintenance-free, 12-volt, 30
amp-hour, 270 cca (per Battery Council International
rating)
- Charging - 44-amp permanent magnet alternator
w/ solid-state regulator (572 watts @ 3000 rpm,
585 watts peak)
- Starting - 1.2 kw electric w/ Bendix-tpe engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen, 55-watt low beam, 60-watt
high beam
- Passing lamps - 2 @ 35w (except where prohibited
by law)
- Tail/stop lights - 3 each @ 21w
- Turn signal lights (self-canceling) - 21w - Indicator
lamps High beam, passing lamps, neutral, oil pressure,
engine diagnostic light, low fuel warning, cruise
control, speakers, accessory, turn signals, and
security system
Styling
- Engine Trim - Black powdercoated w/ chrome covers
- Exhaust System - Chrome crossover duals
- Ignition Tank - console-mounted
- Seat - Extended comfort; plush, pillow-look; accepts
available driver backrest
- Passenger Backrest - Integrated in Tour-Pak lid
w/ wrap-around armrest
- Foot Supports - Full-length operator floor boards
w/ heel-toe shifter lever
- Fairing - Fork-mounted "Bat Wing"
- Fairing Air Deflectors - Clear Lexan w/ hand-removable
fasteners
- Lower Fairings - Fiberglass; removable; integral
glove boxes
- Windshield - Clear Lexan
- Glovebox - 2 located in lower fairings w/ snap-covers
- Instruments - Electronic Speedometer and tachometer;
fuel gauge; voltmeter; oil pressure gauge; clock
(integrated in stereo); ambient air temperature
gauge; odometer and resettable trip meter. Stereo
Premium Sound System (40 watts per speaker) w/ AM/FM/CD
player, fairing-mounted speakers, Weather Band,
digital clock, radio controls for passenger, bi-directional
seek and scan, music search and music scan, 4 presets
and automatic volume control w/ adjustable sensitivity.
Aux. Audio Input On radio face; will accommodate
any line-level audio output device, like personal
CD or MP3 player. Antenna Twin AM/FM/WB and CB antennae.
Rear Speakers Integral w/ passenger backrest. Intercom
Push-to-talk, or voice-activated w/ adjustable sensitivity
CB 4-Watt, 40-Channel electronically tuned CB (prohibited
in some countries) w/ passenger controls Headset/headset
receptacles Driver and passenger stereo helmet headset
receptacles for CB/intercom/sound system (use restricted
in some states and countries; single headset included).
Cruise Control Electronic w/ set, resume, accelerate
and decelerate functions. Handlebar Controls Start;
engine cutoff; L/R turn signals; horn; hi/low beam;
sound system audio and channel control, CB/intercom
and cruise control. Hazard Warning Integrated w/
turn signal controls. Electrical Power Outlet Cigarette
lighter; 4-pin accessory connector beneath seat.
Tour-Pak Deluxe, fiberglass, side-hinged w/ capacity
for 2 full-face helmets, fabric-lined interior,
custom-fit woven-nylon soft luggage liners, storage
pocket, volume: 75L Saddlebags Fiberglass w/ hinged
lids and slant chrome latches, custom-fit woven-nylon
soft luggage liners, chrome dual-rail saddlebag
guards volume: 36L per bag. Luggage Locks Tour-Pak
and saddlebag barrel-key; common w/ ignition Fork
Lock Barrel key, common w/ ignition. Gas Cap Lock
Barrel key, common w/ ignition
- Colours - Vivid Black, Luxury Blue, Sierra Red,
Luxury Teal, Lava Red Sunglo, Glacier White Pearl,
Two-Tone Luxury Blue/Impact Blue, Two-Tone Luxury
Teal/Brilliant Silver
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
