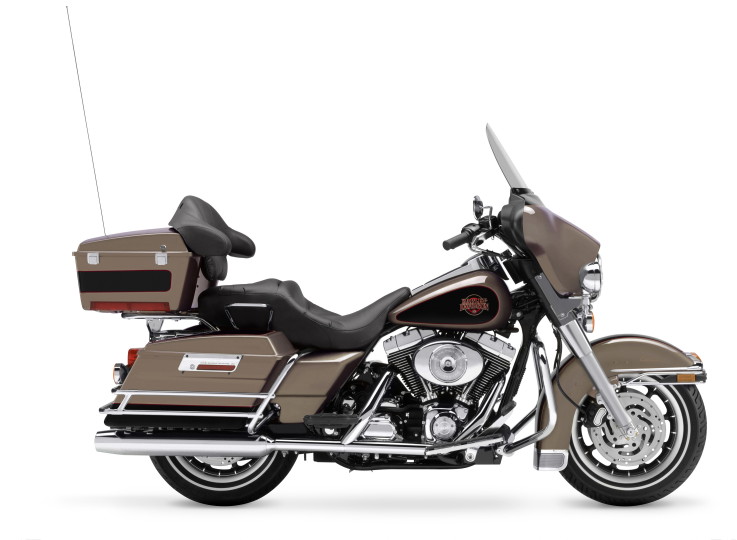

2004 Harley FLHTCI Electra Glide
Classic
Here's a bike that offers everything you need for
long-haul touring. The FLHTCI Electra Glide Classic
(available with standard EFI Twin Cam 88 engine for
2004) is a step up from the basic, but not loaded
with every single bell and whistle. Features include
the King Tour-Pak rear luggage box with passenger
backrest, full engine instrumentation, additional
fender and saddlebag trim, and chrome engine covers.
Electra Glide Classic also has the new comfortstitch
touring seat that replaces the plush button seat used
on previous models. The new seat eliminates pressure
points and water pockets created by the seat buttons.
A new rear tyre is slightly wider and offers longer
life for added touring pleasure and reduced service
cost.
FLHTCI Electra Glide Classic features:
- Vibration-isolated 1450cc Twin Cam 88 engine
- Black powder-coated engine with chrome covers
- Bat-wing, fork-mounted fairing
- Fibreglass saddlebags with King Tour-Pak
- Comfort-stitch touring saddle and passenger backrest
- Full instrumentation (electronic tachometer and
speedometer, fuel gauge, voltmeter, oil-pressure
gauge, ambient air temperature gauge and odometer/tripmeter)
- 40-watt per channel AM/FM/CD sound system
- Triple-disc brakes
- Air-adjustable rear suspension
Specifications - FLHTCI Electra Glide Classic
- Length - 2500 mm
- Seat Height (measure laden w/ 81.7kg rider) -
693 mm
- Ground Clearance - 129.5 mm
- Rake - 26 degrees
- Trail - 157.5 mm
- Wheelbase - 1592 mm
- Tyres: Dunlop Harley-Davidson Series - Front -
D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
- Fuel Capacity - 18.9 L
- Reserve Fuel Capacity - 3.4 L
- Oil Capacity - 3.8 L
- Dry Weight - 357 kg
- Engine - 45º Air-cooled Twin Cam 88 ® (vibration
isolation-mounted)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449 cc
- Compression Ratio - 8.8:1
- Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
- Primary Drive - Double row chain, oil bath, mechanical
tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate, wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm - Conventional , rectangular
- Front Fork - Telescopic cartridge-style damping
- Rear Shocks - Air-adjustable
- Wheels - 16 in. front 16 in. rear 9-hollow spoke,
cast aluminum alloy
- Brakes: Caliper type Four-piston front and rear
- Rotor type (diameter x width): Patented, Uniform
Expansion Rotors - Front (DUAL) 292.1 mm x 5.08
mm, Rear 292.1 mm x 5.84 mm
- Suspension travel: Front 117mm, Rear 76mm
- Engine Torque (per 95/1/EC)2: 109 Nm@3400 rpm
- Lean Angle (per SAEJ1168): Right 31 degrees, Left
30 degrees
- Battery - Sealed, maintenance-free, 12-volt, 30
amp-hour, 270 cca (per Battery Council International
rating)
- Charging: 37-amp permanent magnet alternator w/
solid-state regulator (481 watts @ 3000 rpm; 494
watts peak)
- Starting - 1.2 kw electric w/ Bendix-type engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen, 55-watt low beam, 60-watt
high beam
- Passing lamps - 2 @ 35w (except where prohibited
by law)
- Tail/stop lights - 5w/21w
- Turn signal lights (self-canceling) - 21w - Indicator
lamps High beam, passing lamps, neutral oil pressure,
engine diagnostic light, accessory, speakers, turn
signals, low fuel warning, and security system
Styling
- Engine Trim - Black powdercoated w/ chrome covers
- Exhaust System - Chrome crossover duals
- Ignition Tank - console-mounted
- Seat - Extended comfort; plush, pillow-look; accepts
available driver backrest
- Passenger Backrest - Integrated in Tour-Pak lid
w/ wrap-around armrests
- Foot Supports - Full-length operator floor boards
w/ heel-toe shifter lever
- Fairing - Fork-mounted "Bat Wing"
- Windshield - Clear Lexan
- Instruments - Electronic speedometer and tachometer;
fuel gauge; voltmeter; oil pressure gauge; clock
(integrated in stereo); ambient air temperature
gauge; odometer and resettable trip meter. Stereo
Premium sound system (40 watts per speaker) w/ AM/FM/CD
player, fairing-mounted speakers, Weather Band,
digital clock, bi-directional seek and scan, music
search and music scan, 4 presets and automatic volume
control w/ adjustable sensitivity. Aux. Audio Input
On radio face; will accommodate any line-level audio
output device, like personal CD or MP3 player. Antenna
Single AM/FM/WB antenna. Cruise Control Electronic
w/ set, resume, accelerate and decelerate functions.
Handlebar Controls Start; engine cutoff; L/R turn
signals; horn; hi/low beam; Sound System audio and
channel control. Hazard Warning Integrated w/ turn
signal controls. Electrical Power Outlet(s) Cigarette
lighter; 4-pin accessory connector beneath seat.
Tour-Pak Fiberglass; side-hinged; capacity for 2
full-face helmets; storage pocket; integral wrap-around
passenger backrest; rubber mat liner, volume: 75L.
Saddlebags Fiberglass w/ hinged lids, chrome slant
latches, and chrome dual-rail saddlebag guards,
volume: 36L per bag. Luggage Locks Tour-Pak and
saddlebag barrel-key; common w/ ignition. Fork Lock
Barrel key, common w/ ignition. Gas Cap Lock Barrel
key, common w/ ignition.
- Colours - Viivid Black, Luxury Blue, Sierra Red,
Luxury Teal, Lava Red Sunglo, Two Tone Smokey Gold/Vivid
Black, Two-Tone Luxury Blue/Impact Blue
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
