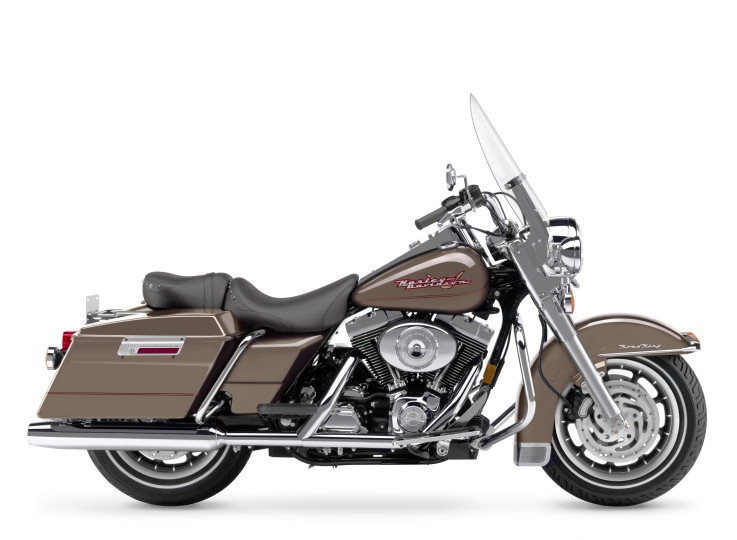

2004 Harley FLHRI Road King

The FLHR Road King delivers classic Harley-Davidson styling and long haul comfort, with standard features like a detachable windshield and locking fibreglass saddlebags. The Road King is offered with a standard fuel-injected Twin Cam 88 engine for 2004.

FLHRI Road King features:

• Vibration-isolated 1450cc Twin Cam 88 engine
• Black powder-coated engine with chrome covers
• Heritage styling
• Large, Hiawatha headlight with chrome nacelle
• Detachable windshield
• Large, tank-mounted speedometer
• Two-piece seat
• Locking fibreglass saddlebags
• Triple-disc brakes
• Air-adjustable rear suspension

Specifications - FLHRI Road King

• Length - 2440 mm
• Seat Height (measure laden w/ 81.7kg rider) - 693 mm
• Ground Clearance - 129.5 mm
• Rake - 26 degrees
• Trail - 157.5 mm
• Wheelbase - 1592 mm
• Tyres: Dunlop Harley-Davidson Series - Front - D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
• Fuel Capacity - 18.9 L
• Reserve Fuel Capacity - 3.4 L
• Oil Capacity - 3.8 L
• Dry Weight - 332 kg
• Engine - 45º Air-cooled Twin Cam 88® (vibration isolation-mounted)
• Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
• Bore x Stroke - 95.3 x 101.6 mm
• Displacement - 1449cc
• Compression Ratio - 8.8:1
• Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
• Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
• Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
• Clutch - 9-Plate,wet
• Transmission - Five-speed
• Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th 3.15
• Frame - Mild steel, rectangular section backbone w/ twin down-tubes
• Swing Arm - Conventional, rectangular
• Front Fork - Telescopic
• Rear Shocks - Air-adjustable
• Wheels - 16 in. front, 16 in. rear, 9-hollow spoke, cast aluminum alloy (laced option)
• Brakes: Caliper Type Four-piston front and rear
• Rotor Type (diameter x width): Patented, Uniform Expansion Rotors - Front (DUAL) 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
• Suspension travel: Front 117mm, Rear 76mm
• Engine Torque (per 95/1/EC)2: 109 Nm@3400 rpm
• Lean Angle (per SAEJ1168): Right 31 degrees, Left 30 degrees
• Battery - Sealed, maintenance-free, 12-volt, 30 amp-hour, 270 cca (per Battery Council International rating)
• Charging: 37-amp permanent magnet alternator w/ solid-state regulator (481 watts @ 3000 rpm; 494 watts peak)
• Starting - 1.2 kw electric w/ Bendix-type engagement
• Lights: (As per country regulation)
• Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
• Passing lamps - 2 @ 35 watts each (except where prohibited by law)
• Tail/stop lights - 5w/21w
• Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil pressure, engine diagnostic light, turn signals, low fuel warning and security system
• Styling
• Engine Trim - Black powdercoated w/ chrome covers
• Exhaust System - Chrome crossover duals
• Ignition Tank - console-mounted
• Seat - Custom solo saddle w/ removable passenger pillion
• Foot Supports - Full-length operator floor boards w/ heel-toe shifter lever
• Windshield Large, clear Lexan; quick-detachable
• Instruments Electronic speedometer w/ odometer and resettable tripmeter; fuel gauge w/ low fuel light. Cruise Control Wired to accept cruise control. Handlebar Controls Start; engine cutoff; L/R turn signals; horn; hi/low beam. Hazard Warning Integrated w/ turn signal controls. Electrical Power Outlet 4-pin accessory connector beneath seat. Saddlebags Fiberglass w/ hinged lid and chrome slant latches, volume: 36L per bag. Luggage Locks Saddlebag barrel key, common w/ ignition
• Fork Lock - Barrel key, common w/ ignition
• Colours - Vivid Black, Sierra Red, Luxury Teal, Smokey Gold
• Warranty - 24 months (unlimited mileage)
• Service Interval - First 1,600 Km; every 8,000 Km thereafter.
