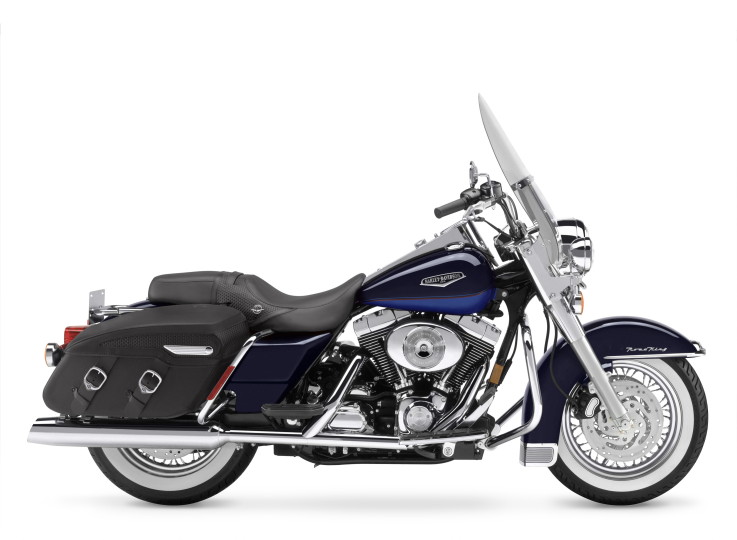

2004 Harley Davidson FLHRCI Road King Classic
FLHRCI Road King Classic
A tribute to the heritage of Harley-Davidson,
the FLHRCI Road King Classic is built for long
days on the road. The Road King Classic combines
styling details like wide whitewall tyres, laced
wheels and leather-covered saddlebags with features
that make it perfectly suited for touring, including
standard sequential port fuel injection, cruise
control and air-adjustable rear suspension.
FLHRCI Road King Classic features:
Vibration-isolated 1450cc Twin Cam 88 engine
with EFI
Black powder-coated engine with chrome covers
Heritage styling
Large, Hiawatha headlight with chrome nacelle
Detachable windshield
Large, tank-mounted speedometer
Leather-wrapped, hard saddlebags
Tooled leather seat
Chrome tank and fender emblems
Wide whitewall tyres
Wire laced wheels
Triple disc brakes
Air-adjustable rear suspension
Electronic cruise control
Specifications - FLHRCI Road King Classic
Length - 2440 mm
Seat Height (measure laden w/ 81.7kg rider)
- 683 mm
Ground Clearance - 129.5 mm
Rake - 26 degrees
Trail - 157.5 mm
Wheelbase - 1592 mm
Tyres: Dunlop Harley-Davidson Series (Wide
Whitewall) - Front - D402F MT90-B16 72H, Rear
- D402 MU85-B16 77H
Fuel Capacity - 18.9 L
Reserve Fuel Capacity - 3.4 L
Oil Capacity - 3.8 L
Dry Weight - 332 kg
Engine - 45º Air-cooled Twin Cam 88® (vibration
isolation-mounted)
Valves - Pushrod-operated overhead valves;
w/ hydraulic self-adjusting lifters; two valves
per cylinder
Bore x Stroke - 95.3 x 101.6 mm
Displacement - 1449 cc
Compression Ratio - 8.8:1
Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
Primary Drive - Double row chain, oil bath,
mechanical tensioner, 36/25 ratio
Final Drive Gates - carbon fiber reinforced
polychain belt, 32/70 ratio
Clutch - 9-Plate, wet
Transmission - Five-speed
Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd
- 4.95, 4th - 3.87, 5th - 3.15
Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
Swing Arm - Conventional, rectangular
Front Fork - Telescopic
Rear Shocks - Air-adjustable
Wheels - 16 in. laced front, 16 in. laced
rear
Brakes: Caliper type Four-piston front and
rear
Rotor type (diameter x width): Patented, Uniform
Expansion Rotors - Front (DUAL) 292.1 mm x 5.08
mm, Rear 292.1 mm x 5.84 mm
Suspension travel: Front 117 mm, Rear 76mm
Engine Torque (per 95/1/EC)2: 109 Nm@3400
rpm
Lean Angle (per SAEJ1168): Right 31 degrees,
Left 30 degrees
Battery - Sealed, maintenance-free, 12-volt,
28 amp-hour, 300 cca (per Battery Council International
rating)
Charging - 44-amp permanent magnet alternator
w/ solidstate regulator (572 watts @ 3000 rpm,
585 watts peak)
Starting - 1.2 kw electric w/ Bendix-type
engagement
Lights: (As per country regulation)
Headlamp - Quartz halogen, 55-watt low beam,
60-watt high beam
Passing lamps - 2 @ 35 watts each (except
where prohibited by law)
Tail/stop lights - 5w/21w
Turn signal lights (self-canceling) - 21w
- Indicator lamps High beam, neutral, oil and
turn signals, low fuel warning, engine diagnostic
light, and security system
Styling
Engine - Trim Black powdercoated w/ chrome
covers
Exhaust System - Chrome crossover duals
Ignition Tank - console-mounted
Seat - Custom classic seat w/ slot for available
driver backrest
Foot Supports - Full-length operator floor
boards w/ heel-toe shifter lever
Windshield Large, clear Lexan; quick-detachable
Instruments Electronic speedometer w/ odometer
and resettable tripmeter; fuel gauge w/ low
fuel light. Cruise Control Electronic w/ set,
resume, accelerate and decelerate. Handlebar
Controls Start; engine cutoff; L/R turn signals;
horn; hi/low beam; cruise on/off and set/resume.
Hazard Warning Integrated w/ turn signal controls.
Electrical Power Outlet 4-pin accessory connector
beneath seat. Saddlebags Custom, leather-wrapped
hard bags w/ chrome buckle leather straps and
hidden quick-clips, volume: 30L per bag. Fork
Lock, Gas Cap Lock Barrel key, common w/ ignition
Colours - Two-Tone Luxury Blue/Impact Blue,
Two-Tone Luxury Teal/Brilliant Silver
Warranty - 24 months (unlimited mileage)
Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
