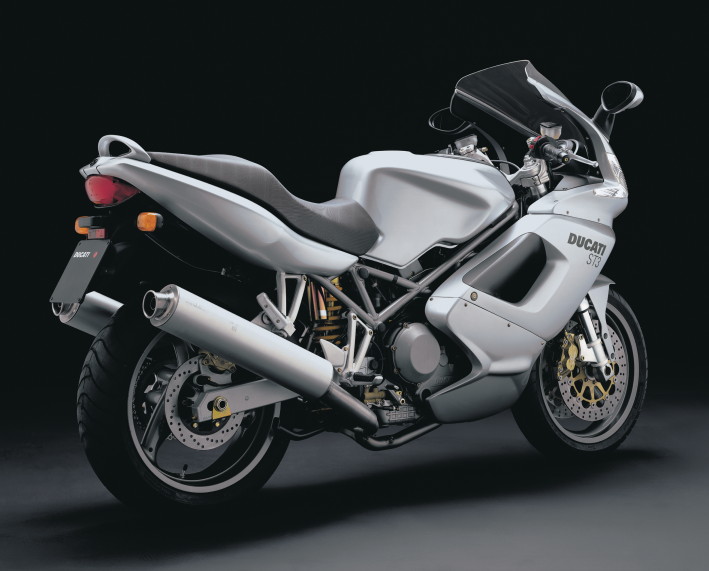

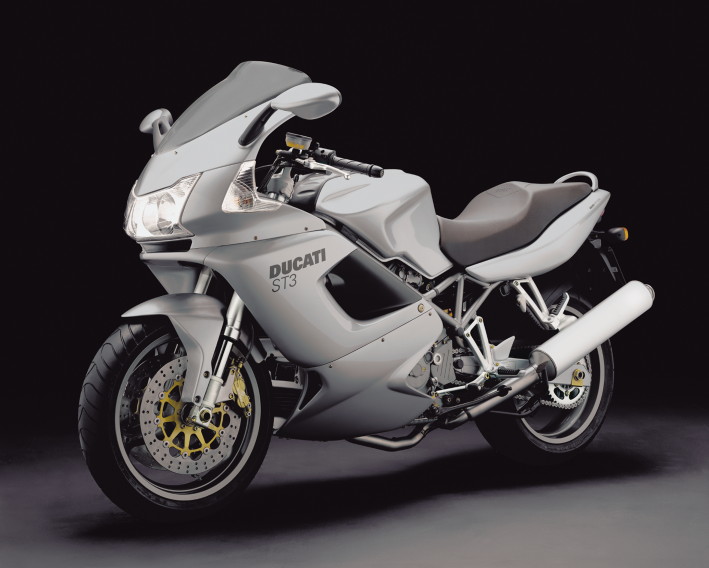

2004 Ducati ST3
 |
- Engine Type - L twin cylinder, 3 valve per
cylinder Desmodromic, liquid cooled
- Displacement - 992 cc
- Bore and stroke - 94 x 71.5 mm
- Compression Ratio - 11.3:1
- Power - 75 KW - 102 HP @ 8750 rpm
- Torque - 93 Nm - 9,5 Kgm @ 7250 rpm
- Fuel injection - Marelli Electronic Fuel
Injection, 50 mm throttle body
- Exhaust - 2 aluminium mufflers with catalytic
converter
- Emissions - Euro 2
- Gearbox - 6 speed
- Ratio - 1st 37/15, 2nd 30/17, 3rd 27/20,
4th 24/22, 5th 23/24, 6th 24/28
- Primary drive - Straight cut gears; ratio
1.84
- Final drive - Chain; Front sprocket 15;Rear
sprocket 42
- Clutch - Dry multiplate with hydraulic control
- Frame - Tubular steel trellis frame
- Wheelbase - 56.3 in / 1430 mm
- Rake - 24°
- Steering angle - 30° right and left
- Front suspension - Showa 43 mm adjustable
preload upside-down front fork
- Front wheel travel - 5.1 in / 130 mm
- Front wheel - 3 spoke light alloy 3.50 x
17
- Front tyre - 120/70 ZR 17
- Rear suspension - Progressive linkage with
adjustable Sachs monoshock
- Rear wheel travel - 5.8 in / 148 mm
- Rear wheel - 3 spoke light alloy 5.50 x
17
- Rear tyre - 180/55 ZR 17
- Front Brake - 2 x 320 mm semi-floating discs,
4-piston caliper
- Rear Brake - 245 mm disc, 2-piston caliper
- Fuel capacity - 5.5 US gal (of which 1.5
US gal reserve)
- Weight - 472 lbs / 214 Kg
- Seat height - 32.3 in / 820 mm
- Max height - 50 in / 1274 mm
- Max length - 81.5 in / 2070 mm
- Instruments - Electronic instrument panel
using CAN comunication protocol with CPU:
multifunctional digital display (speedometer,
clock, odometer/trip, oil/water temperature,
fuel gauge with both analogical (bars) digital
readouts, instant/average consumption, consumed
fuel, residual autonomy, mantainance operations,
average speed, injection self diagnosis),
analogic rev counter, self adjusting (according
to outdoor light) pilot lights (warning light
for low oil pressure, indicators for high/low
beam, neutral, turn signals, immobilizer fuel
reserve, injection diagnosis), headlight angle
adjustment, immobilizer system, electroluminescent
lighting
- Warranty - 2 years unlimited mileage
|
| |
