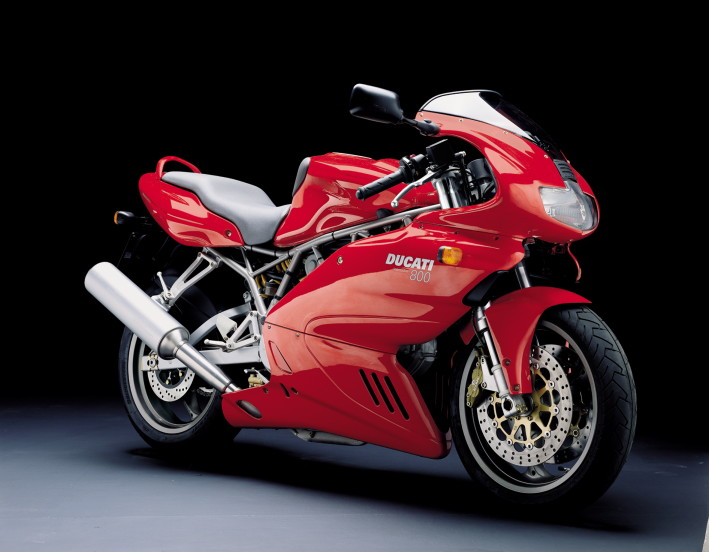

2004 Ducati SS800
- Engine Type - L-twin cylinder, 2 valves per cylinder
Desmodromic, air-cooled
- Displacement - 803cc
- Bore and stroke - 88 x 66 mm
- Compression Ratio - 10.5:1
- Power - 54,8 kW - 74,5 HP @ 8250 rpm
- Torque - 70 Nm - 7,1 Kgm @ 6250 rpm
- Fuel injection - Marelli electronic fuel injection,
45 mm throttle body
- Exhaust - 2 aluminium mufflers with 3-way catalytic
converter (non-catalytic for USA version)
- Emissions - Euro 2 - (except USA version)
- Gearbox - 6 speed
- Ratio - 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23,
5th 22/22, 6th 24/26
- Primary drive - Straight cut gears; ratio 1.85
- Final drive - Chain; Front sprocket 15; Rear sprocket
39
- Clutch - Wet multiplate with hydraulic control
- Frame - Tubular steel trellis frame
- Wheelbase - 55.3 in / 1405 mm
- Rake - 24°
- Steering angle - 28° right and left
- Front suspension - Marzocchi 43 mm upside-down
fork
- Front wheel travel - 5.4 in / 136 mm
- Front wheel - 3-spoke light alloy 3.50 x 17
- Front tyre - 120/70 ZR 17
- Rear suspension - Progressive cantilever linkage
with fully-adjustable Sachs monoshock. Steel swingarm
- Rear wheel travel - 5.8 in / 148 mm
- Rear wheel - 3-spoke light alloy 5.50 x17
- Rear tyre - 170/60 ZR 17
- Front Brake - 2 x 320 mm semi-floating discs,
fixed 4-piston calipers
- Rear Brake - 245 mm disc, 2-piston caliper
- Fuel capacity - 4.2 US gal (of which 1 US gal
reserve) 16 l (of which 4 l reserve)
- Weight - 409,3 lbs / 185,4 Kg
- Seat height - 32.1 in / 815 mm
- Max height - 43.7 in / 1110mm
- Max length - 79.9 in / 2030 mm
- Instruments - Electronic panel: speedometer, rev
counter, warning light for low oil pressure, high
beam indicators, turn signals, fuel level, immobilizer,
LCD for clock and oil temperature, LCD odometre
and trip metre.
- Warranty - 2 years unlimited mileage
| |
