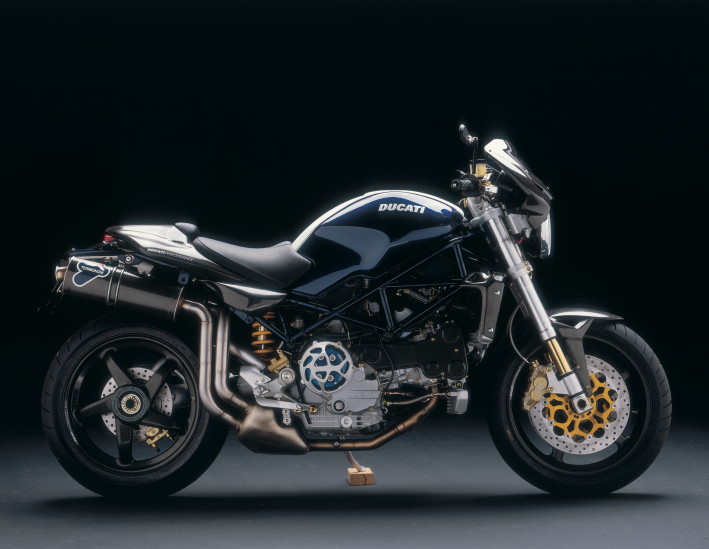

2004 Ducati MS4R
- Engine Type - L-twin cylinder, 2 valve per cylinder
Desmodromic, air-cooled
- Displacement - 996 cc
- Bore and stroke - 96 x 68.8 mm
- Compression Ratio - 11.6:1
- Power - 83,4 kW - 113 HP @ 8750 rpm
- Torque - 95,5 Nm - 9,68 Kgm @ 7000 rpm
- Fuel injection - Marelli electronic fuel injection,
45 mm throttle body
- Exhaust - 2 aluminum mufflers
- Emissions - Euro 2
- Gearbox - 6 speed
- Ratio - 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23,
5th 22/22, 6th 24/26
- Primary drive - Straight cut gears; Ratio 1.84
- Final drive - Chain; Front sprocket 15; Rear sprocket
42
- Clutch - Dry multiplate with hydraulic control
- Frame - Tubular steel trellis frame
- Wheelbase - 56.7 in / 1440 mm
- Rake - 24°
- Steering angle - 27° right and left
- Front suspension - Showa upside-down fork 43 mm
- Front wheel travel - 5.1 in / 130 mm
- Front wheel - 3-spoke light alloy 3.50 x 17
- Front tyre - 120/60 ZR 17
- Rear suspension - Progressive linkage with Showa
fully adjustable monoshock. Aluminum single-sided
swingarm.
- Rear wheel travel - 5.8 in / 148 mm
- Rear wheel - 5-spoke light alloy 5.50 x 17
- Rear tyre - 180/55 ZR 17
- Front Brake - 2 x 320 mm discs, 4-piston caliper
- Rear Brake - 245 mm disc, 2-piston caliper
- Fuel capacity - 3.9 US gal (of which 0.9 US gal
reserve) 15 l (of which 3,5 l reserve)
- Weight - 425 lbs / 193 Kg
- Seat height - 31,5 in / 800 mm
- Max height - 48,1 in / 1222 mm
- Max length - 83,5 in / 2121 mm
- Instruments - Electronic panel: speedometer, rev
counter, warning light for low oil pressure, indicators
for high beam, turn signals, LCD clock, immobilizer.
- Warranty - 2 years unlimited mileage
| |
