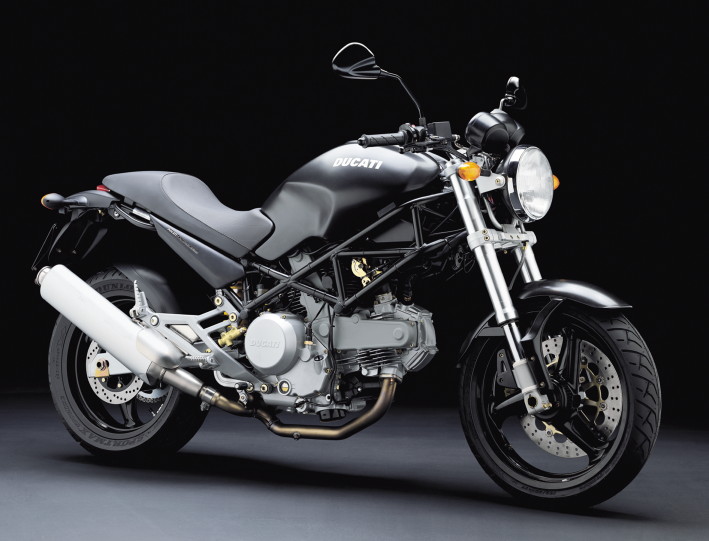

2004 Ducati M620ie
- Engine Type - L-twin cylinder, 2 valve per cylinder
Desmodromic, air-cooled
- Displacement - 618 cc
- Bore and stroke - 80 x 61.5 mm
- Compression Ratio - 10.5:1
- Power - 44,3 kW - 60 HP @ 9500 rpm
- Torque - 53,3 Nm - 5,4 Kgm @ 6750 rpm
- Fuel injection - Marelli electronic fuel injection,
45 mm throttle body
- Exhaust - 2 aluminum mufflers
- Emissions - Euro 2
- Gearbox - 6-speed (5-speed M620 Dark mono disc)
- Ratio - 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23,
5th 22/22, 6th 24/26 (1st 40/16, 2nd 36/21, 3rd
32/24, 4th 29/27, 5th 28/29 for M620 Dark mono disc)
- Primary drive - Straight cut gears; Ratio 1.85
- Final drive - Front sprocket 15; Rear sprocket
48 (46 M620 Dark mono disc)
- Clutch - Wet multiplate with hydraulic control
- Frame - Tubular steel trellis frame
- Wheelbase - 56.7 in / 1440 mm
- Rake - 24°
- Steering angle - 27° right and left
- Front suspension - 43 mm upside-down fork
- Front wheel travel - 5.1 in / 130 mm
- Front wheel - 3-spoke light alloy 3.50 x 17
- Front tyre - 120/60 ZR 17
- Rear suspension - Progressive linkage with Sachs
adjustable monoshock.
- Rear wheel travel - 5.8 in / 148 mm
- Rear wheel - 3-spoke light alloy 4.50 x17
- Rear tyre - 160/60 ZR 17
- Front Brake - 2 x 320 mm discs, 4-piston caliper
(320 mm disc, 4-piston caliper M620 Dark mono disc)
- Rear Brake - 245 mm disc, 2-piston caliper
- Fuel capacity - 3.9 US gal (of which 0.9 US gal
reserve)
- Weight - 390 lbs / 177 Kg
- Seat height - 30.3 in / 770 mm
- Max height - 47,2 in / 1212 mm
- Max length - 82,7 in / 2100 mm
- Instruments - Electronic panel: speedometer, rev
counter, warning light for low oil pressure, indicators
for high beam, turn signals, LCD clock, immobilizer.
- Warranty - 2 years unlimited mileage
| |
