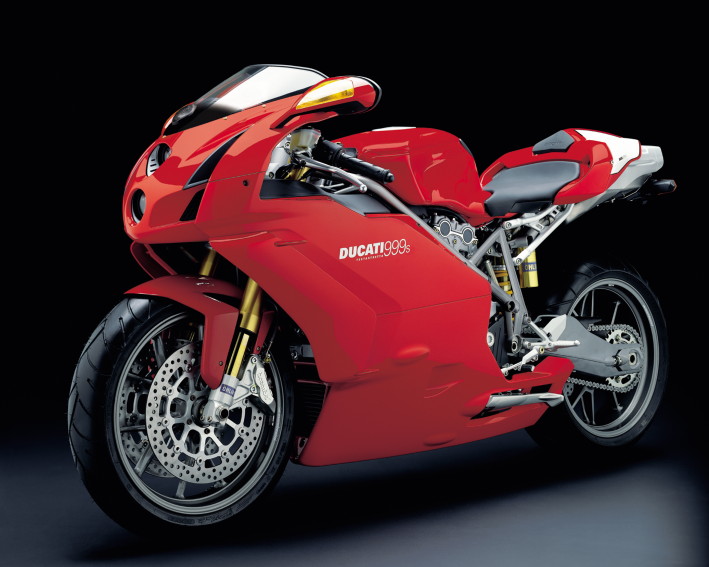

2004 Ducati 999S
- Engine Type - L twin cylinder, 4 valve Testastretta
Desmodromic, liquid cooled
- Displacement - 998cc
- Bore and stroke - 100 x 63.5 mm
- Compression Ratio - 11.4:1
- Power - 100 kW - 136 HP @ 9750 rpm
- Torque - 106 Nm - 10,8 Kgm @ 8000 rpm
- Fuel injection - Marelli Electronic Fuel Injection,
54 mm throttle body
- Exhaust - Exhaust system with single steel muffler,
with catalytic converter
- Emissions - Euro 2
- Gearbox - 6 speed
- Ratio - 1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22,
5th 24/23, 6th 23/24
- Primary drive - Straight cut gears; ratio 1.84
- Final drive - Chain; Front sprocket 15; Rear sprocket
36
- Clutch - Dry multiplate with hydraulic control
- Frame - Tubular steel trellis frame
- Wheelbase - 55.9 in / 1420 mm
- Rake - 23.5° - 24.5°
- Steering angle - 28.5° right and left
- Front suspension - Ohlins with TiN upside-down
fork fully adjustable
- Front wheel travel - 4.9 in / 125 mm
- Front wheel - 5 spoke Y light alloy 3.50 x 17
- Front tyre - 120/70 ZR 17
- Rear suspension - Ohlins progressive linkage with
adjustable monoshock
- Rear wheel travel - 5.0 in / 128 mm
- Rear wheel - 5 spoke Y light alloy 5.50 x 17
- Rear tyre - 190/50 ZR 17
- Front Brake - 2 x 320 mm semi-floating discs,
4-piston 4-pads caliper
- Rear Brake - 240 mm disc, 2-piston caliper
- Fuel capacity - 15.5 l (3 l reserve)
- Weight - 438 lbs / 199 Kg
- Seat height - 30.7 in / 780 mm
- Max height - 42.9 in / 1090 mm
- Max length - 82.5 in / 2095 mm
- Instruments - LCD, speedometer, rev counter, high
beam indicator, turn signals, warning light for
low oil pressure, fuel level, warning light for
neutral, water temperature, immobilizer.
- Warranty - 2 years unlimited mileage
| |
