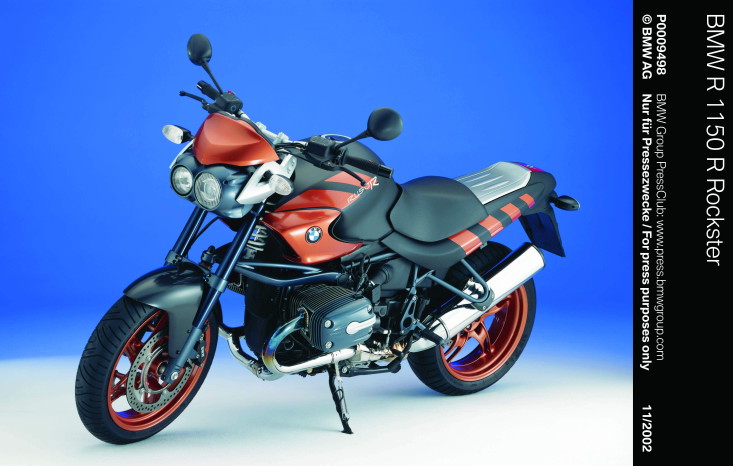

2004 BMW R1150 Rockster
The Rockster, which retails at £7,295
on the road, is a sportier version of the
successful R1150 R model, from where it derives
its engine, gearbox, frame, swing arm and
electrics. The striking headlights are taken
from the R1150 GS, while some of the components
such as the Telelever sliding tubes, 5.5 inch
rear wheel rim and the front mudguard come
from the R1100 S. Riding dynamics are uprated
for greater agility.
Although the Rockster is primarily about
innovative design and forward thinking it
incorporates all the best components and elements
of the current boxer range it is a machine
that shows a new face and character. Like
the rest of BMW's boxer range, the R1150 R
Rockster features a dual ignition system that
improves the uniformity of combustion throughout
the engine's operating range, while reducing
fuel consumption and emission levels.
Striking twin-tone paintwork in matt black
and a choice of Citrus Green Metallic and
Orange Metallic colour schemes gives the Rockster
a truly unique identity that will appeal to
all fans of naked roadsters, who want a motorcycle
that performs as good as it looks.

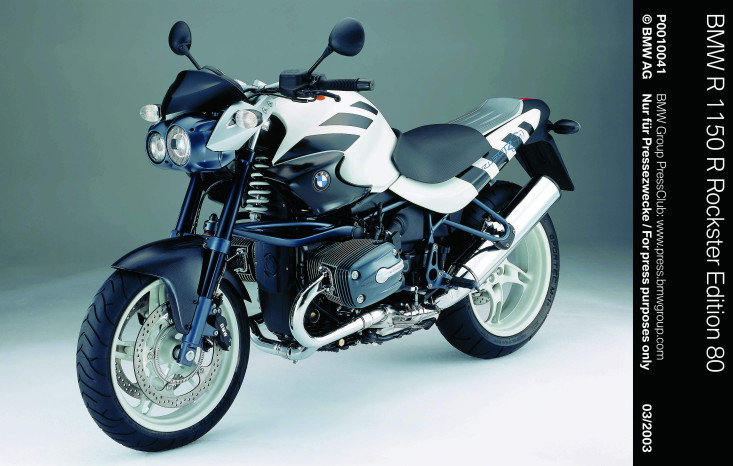

Special Edition BMW 80th anniversary Rockster
rolls out
To celebrate 80 years of manufacturing motorcycles
of uncompromising quality, the Munich factory
of BMW Motorrad has produced a special anniversary
edition of the acclaimed R1150 R Rockster.
Based on the standard model and limited to
a production of 2003 units, the special version
is designated the R1150 R Rockster Edition
80. Each unit carry an individual number and
display exclusive badges with the legend 80
Years in script lettering. New owners will
receive a presentation folder with the motorcycle
that includes a certificate and a DVD on 80
years of BMW Motorrad.
A special colour has been reserved for the
Edition 80. It is painted in Alpine White
uni matt and Sapphire Black metallic, and
features a black dual seat. Standard equipment
includes BMW's industry-leading integral ABS
braking system, and heated grips.
Customers can call BMW's information line:
0800 777 155 or visit www.bmw-motorrad.co.uk
Specifications for BMW R1150 R Rockster
- Engine Type - Air/oil-cooled 2-cylinder
4-stroke-Boxer engine, single camshaft and
four valves per cylinder
- Bore/stroke - 101 mm x 70.5 mm
- Capacity - 1130 cc
- Rated output - 62.5 kW (85 bhp) at 6,750
rpm
- Max. torque - 98 Nm at 5,250 rpm
- Compression ratio - 10.3:1
- Mixture control/engine management - Electronic
intake pipe injection/digital engine management:
Bosch Motronic MA 2.4 with overrun fuel
cut-off, dual ignition
- Emission control - Closed-loop 3-way catalytic
converter
- Maximum speed - Approx. 197 km/h
- Fuel consumption over 100 km at constant
90 km/h - 4.6 litres
- Fuel consumption over 100 km at constant
120 km/h - 5.7 litres
- Fuel type - Unleaded premium, minimum
octane rating 95 (RON)
- Alternator - 700 W three-phase alternator
- Battery - 12 V / 19 Ah
- Clutch - Single-disc dry clutch, hydraulically
operated
- Gearbox - Constant mesh 6-speed transmission
- Drive - Shaft drive
- Frame - Triple-section frame consisting
of front and rear section, load bearing
engine.
- Front wheel location/suspension - BMW
Motorrad Telelever; stanchion diameter 35
mm, spring strut, adjustable rebound damping
- Rear wheel location/suspension - Die-cast
aluminium single-sided swinging arm with
BMW Motorrad Paralever; spring strut, spring
pre-load adjustable to continuously variable
levels by means of hydraulic handwheel,
adjustable rebound damping
- Travel front/rear - 120 mm / 135 mm
- Wheelbase (in normal position) - 1,486
mm
- Castor (in normal position) - 125 mm
- Steering head angle (in normal position)
- 63.1°
- Wheels - Die-cast aluminium wheels
- Rim front - 3.50 x 17
- Rim rear - 5.50 x 17
- Tyres front - 120/70 ZR 17
- Tyres rear - 180/55 ZR 17
- Brake front - EVO-brake system with dual
disc, floating brake discs, diameter 320
mm, 4-piston fixed calipers
- Brake rear - Single disc brake, diameter
276 mm, two-piston fixed caliper
- ABS - Special equipment BMW Motorrad Integral
ABS (partially integral)
- Length - 2,170 mm
- Width (inc. mirrors) - 920 mm
- Height (not inc. mirrors) - 1,097 mm
- Seat height, unladen weight - 835 mm (optional
lower seat height: 795 mm)
- Unladen weight, road ready, fully fuelled
- 239 kg
- Dry weight - 219 kg
- Permitted total weight - 450 kg
- Payload (with standard equipment) - 211
kg
- Usable tank volume - 20.5 litres
- Reserve - Approx. 4.0 litres
- Price - £7,295
- ABS - £750
- Colours - Citrus metallic/soft black matt,
orange metallic/soft black matt, alpine
white matt/sapphire black metallic (Edition
80)
|
