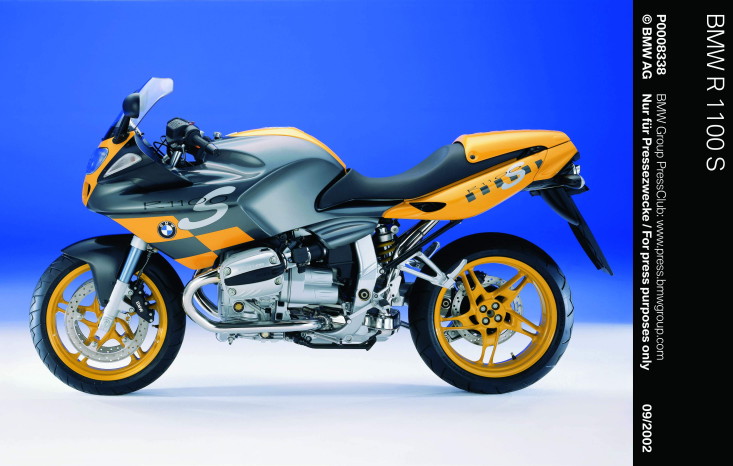

2004 BMW R1100 S

The BMW R1100 S is much more than the sum of its parts. It is a sports motorcycle that dares to be different. It has that indefinable something – “something” that has attracted the world’s most respected riders and “something” that inspired the popular and spectacular International BoxerCup race series. Essentially though, the R1100 S is a BMW in the honoured tradition – a quality motorcycle built uncompromisingly for the road – but with true sports capability. The lightest and most agile of all BMW’s boxer machines, the R1100 S is the most dynamic yet.

A RRP of £7,745 on the road also makes the R1100 S excellent value for money.

Power punch

The four valves per cylinder, air/oil-cooled horizontal twin is the most powerful production boxer engine in BMW’s history. The high-compression four-valve boxer engine features optimised air intake, forged pistons and the latest generation of digital engine electronics. It also has magnesium cylinder heads for reduced weight. The engine develops a punchy 98bhp (72kw) and an equally impressive 97Nm of torque at 5,750 rpm.

Power from the engine is transmitted to the road through a new, close-ratio six-speed gearbox and BMW’s ultra-reliable drive shaft. Light, precise gearshift action and extremely well chosen ratios mean that abundant pulling power is available to the rider under all road and traffic situations.

Visually, the R1100 S engine is slightly different to the other power units in BMW’s R-range. The bolts on the magnesium cylinder heads are new and there are three protruding fins on the lower half of the head. The word “Magnesium” is inscribed on both rocker covers.

Road and track

Despite the R1100 S’s undoubted track capabilities most owners will only ever ride the S on the road. The bike’s strength is its practicality and versatility over other machines of the sports genre.

Unlike many hybrid sport motorcycles the S handles as superbly off the track as it does on. Telelever, the most significant advance in front wheel suspension of the last decade, and other dedicated components, enable the R1100 S to continue the BMW tradition of producing motorcycles with unsurpassed road holding.

Ultimate braking

Increasing the power output of the new R1100 S also meant upgrading an already good braking system. The new EVO front brake is a significant advance in motorcycle brake technology and by fitting it as standard to the R1100 S, BMW has fulfilled a commitment to produce the safest sports motorcycle available.

EVO front braking requires approximately half the manual pressure to achieve the same stopping power as a conventional system. Braking is further improved by equipping the R1100 S with two larger front discs (320mm/12.6 inches) and sintered brake pads. This combination produces an increase in braking forces of between 15 and 20 per cent.

The intelligent, third generation integral ABS system is an after-market option that perfectly compliments the new EVO system and is unique to the sport genre.

Riding for real

The R1100 S is a sports motorcycle that will enable its rider to undertake any, on the road, two-wheel task with confidence. The S makes few compromises in the roles it can assume, irrespective of extremes or whether this means commuting, or touring.

The tractability of the R1100 S in town is matched by its adaptability on a long run. An 18-litre tank (of which 4 litres are “reserve”) means that the S can achieve a practical touring range approaching 200 miles, depending on the type of riding.

To enhance the sports-touring capabilities of the R1100 S, BMW has provided a number of general and touring options. These include pannier case holders and the spacious BMW system cases, heated grips, raised handlebars and high windscreen.

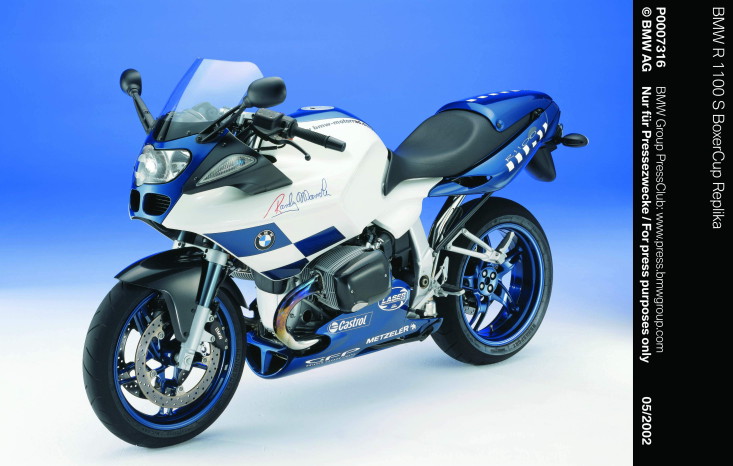

R1100 S Sport BoxerCup replica

A special sports version of BMW’s R1100 S is available for £8,495 on the road which – in addition to the standard equipment – includes sports suspension, a 5.5 inch rear wheel rim and sport decals. It comes in a special Randy Mamola BoxerCup blue/white design.

choice of colours

The R1100 S is available in Piemont red metallic, Titanium silver metallic, Pacific blue metallic and Titanium grey metallic/mandarin colour combinations.

Customers can call BMW‘s information line: 0800 777 155 or visit www.bmw-motorrad.co.uk

Specifications for R1100 S

• Engine Type - Air/oil-cooled 2-cylinder 4-stroke boxer engine, one camshaft and four valves per cylinder
• Bore x stroke - 99 mm x 70.5 mm
• Capacity - 1085 ccm
• Rated output - 72 kW (98 bhp) at 7500 rpm
• Max. torque - 97 Nm at 5750 rpm
• Compression ratio - 11,3 : 1
• Carburetion/engine management - Electronic intake pipe injection/digital engine management: Bosch Motronic - MA 2.4 with overrun fuel cut-off, dual ignition
• Emission control - Closed-loop 3-way catalytic converter
• Maximum speed - Approx. 200 km/h
• Fuel consumption over 100 km at steady 90 km/h - 4.1 l
• Fuel consumption over 100 km at steady 120 km/h - 5.0 l
• Fuel type - Unleaded premium, minimum octane rating 95 (RON)
• Generator - 600 W three-phase generator (700 W power supply optional)
• Battery - 12 V/14 Ah (special equipment: 12 V/19 Ah) (low maintenance)
• Clutch - Single-disc dry clutch, hydraulically operated
• Gearbox - Constant mesh 6-speed transmission
• Drive - Shaft drive
• Frame - Triple-section frame consisting of front and rear frame sections and load-bearing engine
• Front wheel location/suspension - BMW Motorrad Telelever; stanchion diameter 35 mm, central strut, rebound damping adjustable
• Rear wheel location/suspension - Die-cast aluminium single-sided swing arm with BMW Motorrad Paralever; central strut, spring preload adjustable by means of hand wheel to continuously variable levels, rebound damping adjustable
• Travel front/rear - 110 mm/130 mm
• Wheelbase (in normal position) - 1478 mm
• Caster (in normal position) - 100 mm
• Steering head angle (in normal position) - 65°
• Wheels - Die-cast aluminium wheels
• Rim, front - 3.50 x 17, Rim, rear - 5.00 x 17 (special equipment: 5.50 x 17)
• Tyres, front - 120/70 ZR 17, Tyres, rear - 170/60 ZR 17 (special equipment: 180/55 ZR 17)
• Brake, front - EVO brake system with dual disc, floating brake discs, 305 mm diameter, 4-piston fixed caliper
• Brake, rear - Single disc, 276 mm diameter, 2-piston floating caliper
• ABS: Special equipment - BMW Motorrad Integral ABS (part integral)
• Seat height, unladen - 800 mm
• Unladen, road ready, fully fuelled - 229.0 kg
• Dry weight - 208.0 kg
• Permitted total weight - 450.0 kg
• Payload (with standard equipment) - 221.0 kg
• Usable tank volume - 18.0 l
• Incl. reserve - Approx. 4.0 l
• Length - 2180 mm
• Height (not incl. mirrors) - 1160 mm
• Width (incl. mirrors) - 880 mm
